ColecoVision Cartridge Reader Replacement

Written By: Anastazia Kidder
  • Comments: 3
ColecoVision Cartridge Reader Replacement

Difficulty

Very difficult

Steps

4

Time Required

30 minutes

Introduction

The purpose of this guide is to communicate steps on how to replace or repair the cartridge reader on a ColecoVision.

  1. 1CGIShAhCcUNBDPQ

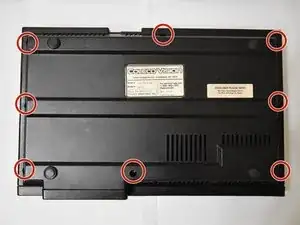

    • Flip the console upside down and remove the eight 15mm Phillips #1 screws.

  2. 3HoRuPJcVwPiwTjN
    3HoRuPJcVwPiwTjN
    kkhmGY5gYdDrR3nV

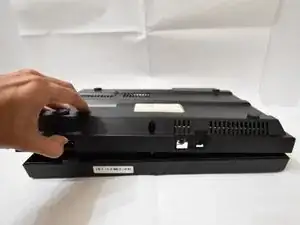

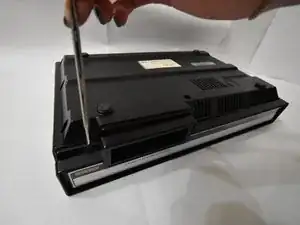

    • Use the metal spudger along the bottom rim of the front panel to safely remove the top of the console. Set aside the top.

  3. EjVQ4J3Y3HOJyJ3h
    EjVQ4J3Y3HOJyJ3h
    lGPRXnkGesWBnajW

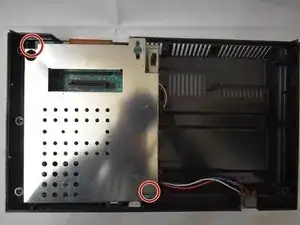

    • Remove the two 15mm Phillips #1 screws holding the casing in place.

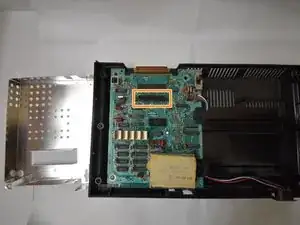

    • Remove the casing to reveal the cartridge reader.

    There is often a metal strap soldered to connect the metal casing. That needs to be cut or de-soldered.

    Jeffrey Dowd -

  4. JGpH2QjpccfFnbxC
    JGpH2QjpccfFnbxC
    P1SrqDZKEfsU4hsx
    qOVyQ6vGUeIPKrpM

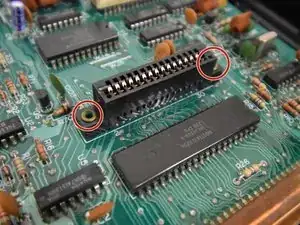

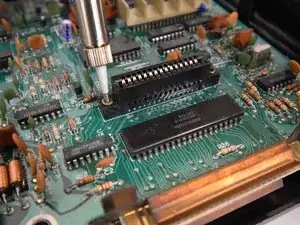

    • Desolder the sides of the cartridge reader using the soldering iron and desolder pump.

    • Refer to this soldering technique guide for reference

    • Patiently wait for the cartridge reader to cool down after being desoldered.

    • It's very important to remove all the tin from the motherboard and cartridge reader before lifting it from the motherboard. Failure to do so could damage the motherboard.

    • Carefully lift up the cartridge reader. A plastic spudger might be helpful in order to easily remove the cartridge reader.

Conclusion

To reassemble your device, follow these instructions in reverse order.
