Digiland DL1168A Front/Rear Camera Replacement

Written By: Payton Boshears
  • Comments: 0
Digiland DL1168A Front/Rear Camera Replacement

Difficulty

Moderate

Steps

6

Time Required

10 minutes

Introduction

Use this guide to replace the front or rear camera on your Digiland DL1168A tablet. If your device is experiencing issues such as blurry images, failure to open the camera app, or complete camera malfunction, replacing the faulty camera module may resolve the problem. This guide will walk you through the process step-by-step with detailed instructions and photos to ensure a safe and successful repair. Before starting, make sure your tablet is powered off and fully disconnected from any power source to avoid electrical damage or injury.

  1. rkxHZNChugk4OrEB

    • Using an opening tool, begin softly prying open device by first inserting it in between the front and back panels.

    • Continue prying the edges while moving around the device's perimeter until the back can be easily removed.

  2. HAcLwS5VPRtg5agP
    HAcLwS5VPRtg5agP
    UvR5fSCCYCGWxQap

    • Carefully lift back panel away from the body of the device.

    • Be gentle when lifting the back panel. The speaker wires are still connected to both the front and back panel.

  3. cAPUwyPnANY3naDM
    cAPUwyPnANY3naDM
    XCjFLtKxvjRa16dJ

    • Desolder the four wires connecting the rear case to the motherboard.

    • Disconnect the wires from the motherboard.

    • Remove the rear case from the device.

  4. iJm5CB1NMk4NsFhX

    • Use tweezers to remove the cover that keeps the camera lens in place.

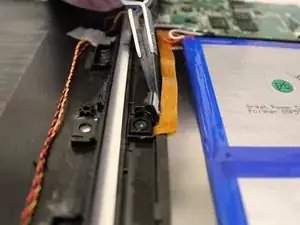

  5. Se1LOjKnjgYRTkQR

    • Use tweezers to gently begin to lift the back piece off.

    • Lift gently because the lens is connected to the back piece by a small cord.

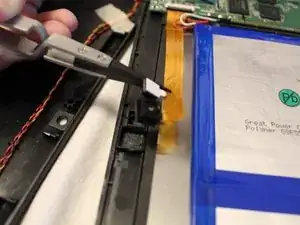

  6. y1PyGY2RNjqqCZJx

    • After lifting gently both the lens and the back piece will be removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
