Edifier W820NB Plus I/O Board Replacement

Written By: Happy Zhang
  • Comments: 0
Edifier W820NB Plus I/O Board Replacement

Difficulty

Very difficult

Steps

12

Time Required

45 minutes - 1 hour

Introduction

In the event that the Edifier W820NB Plus will not charge (with a functional battery) a faulty USB-C port could be the cause. To replace the port the daughterboard will have to be replaced as well. The daughterboard is a secondary part that connects to the motherboard and provides additional functionality for the buttons as well as charging. Be sure to try a different charger and outlet first to confirm the problem is with the headphones. The daughterboard is located beneath the right driver.

This guide requires soldering. If you're unfamiliar with soldering, review the How to Solder and Desolder Connections guide and take appropriate precautions before beginning.

  1. 1HtL3QaWXWUTYoRp

    • Start with the headphones face up and the earpads visible.

  2. Y4FNUay2QGJF5RdY
    Y4FNUay2QGJF5RdY
    NwdoqnP3pTCgBHDU

    • Hold the driver housing in one hand and insert an opening tool into the seam between the earpad and driver housing.

  3. lvs2hxQ6EGLJYw5r
    lvs2hxQ6EGLJYw5r
    DrXjYGBHe1QIe1Wo

    • With your inserted opening tool, pry around the perimeter of the ear pad until it fully releases.

    • Repeat this procedure for the other side if necessary.

  4. TDUoBPjATWHtBKQB

    • Repeat for the other side if necessary.

  5. TZFSCKOeona4gGLY

    • Identify the driver you wish to replace.

    • This guide will use the left driver as an example but the same steps can be mirrored when replacing or removing the right driver. The battery is under the left driver, while the motherboard and daughterboard are under the right driver.

  6. ZsUUT4wg63yeQANC
    ZsUUT4wg63yeQANC
    CssTYn1KunTqiSMm

    • Remove all five 5 mm Phillips #0 screws that secure the driver assembly.

  7. IpVph4fCVwDZFPOB
    IpVph4fCVwDZFPOB
    U66vTrtORVLDVQbc
    yINKWBWWiT6bEJFk

    • Note that the wires for the drivers are on the outermost edge. Try to avoid pushing or cutting them when taking the driver out.

    • Insert a Jimmy in the seam between the driver assembly and driver housing.

    • Rotate the Jimmy along the entire perimeter of the innermost edge to pry it out of place.

  8. 43TZecScMiKdeQVn
    43TZecScMiKdeQVn
    ftJBEGYSgC5uPvLo

    • Gently remove the driver assembly from the rest of the headphone, with care not to strain the connected wire.

  9. qV5jwVhaofxEdSEV
    qV5jwVhaofxEdSEV
    AeM6eGYYMF3pXddv

    • Skip this step if you are completing a battery replacement.

    • Repeat the procedure for the other driver if necessary.

    • Desolder the four driver connections from the motherboard.

    • Remove the driver assembly.

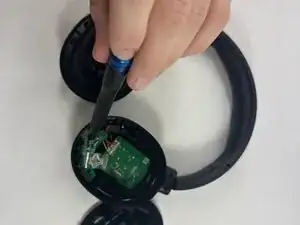

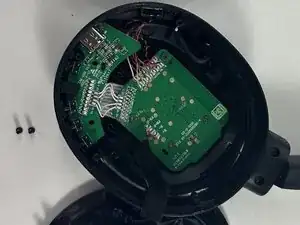

  10. FMTgIGFDlF4lsJdO
    FMTgIGFDlF4lsJdO
    HSeB4CMeyl1NFhXQ
    vTRUCVuLPBZIXKXU

    • Use a Philllips #0 screwdriver to remove the 2 mm screws that secure the I/O board.

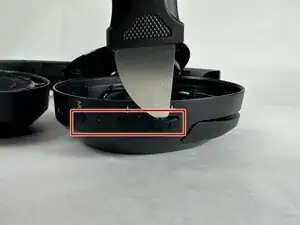

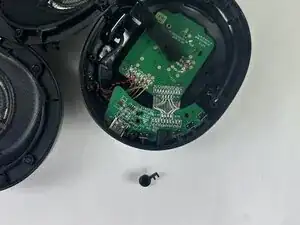

  11. qjnpWwxAIQpxchcA
    qjnpWwxAIQpxchcA
    xo4Gth4TdcTK2HKp
    gPMhEylIkAoQDRlY

    • Pry out the power and volume buttons cover using a Jimmy.

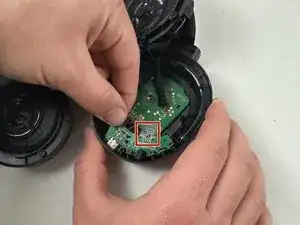

  12. ik5rpTpLDbVWPeZg
    ik5rpTpLDbVWPeZg
    jPes4JToIaOUcT6O

    • Pull the daughter board out.

    • Note that the connections (both in the front and back) will need to be desoldered.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
