Fixing left ear no sound

Written By: sonickrnd
  • Comments: 0
Fixing left ear no sound

Difficulty

Easy

Steps

3

Time Required

10 - 15 minutes

Introduction

Follow this JBL Tune 500bt Speakers Removal Guide to open it

  1. XT24RXduPcBvWvxO
    XT24RXduPcBvWvxO
    E1Q6nA1miFTOHrS4

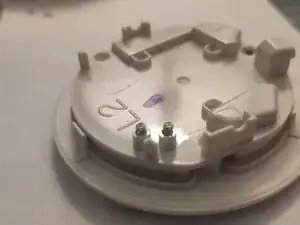

    • Turn the speaker upside down

  2. VG6WiySKhFUGUYWN

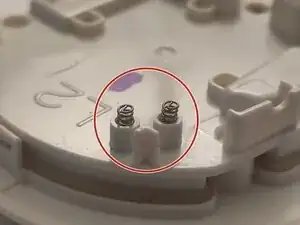

    • Find two springs and gently pull them about one or two millimetres (approximately 1/32 to 1/16 inches for those using Imperial measurement).

  3. EkQyhBEZStFsQuZM

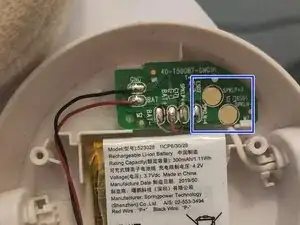

    • It would be nice, but not necessary, to clean these two connecting pads with isopropyl alcohol for better connectivity.

    • That's it, you're almost done! Now, do the JBL Tune 500bt Speakers Removal Guide backwards to reasssemble and enjoy! (Putting pads back revealed in the Conclusion)

Conclusion

Ah, to put these pads back on -- push a layer into a small vertical slit on upper half of driver cover, and carefully twist it, like opening a tincan, but backwards ;))
