HP 14-dq5043cl Wi-Fi Module Replacement

Written By: Tristan Virgo
  • Comments: 0
HP 14-dq5043cl Wi-Fi Module Replacement

Difficulty

Moderate

Steps

6

Time Required

15 - 20 minutes

Introduction

Is your HP 14-dq5043cl struggling to connect to the internet via WIFI connection. If that's the case, you may have a faulty or damaged WIFI card in need of replacement. This component in your device is responsible for establishing an internet connection between your device and the network. If its unresponsive you won't be able to establish a connection.

Before you begin this guide ensure your device cannot maintain or acquire an internet connection, if this is the case power your device off and follow the following steps.

  1. YshBGVpMZlYJr6iH
    YshBGVpMZlYJr6iH
    A2wr4n3CuTCdScdG

    • For your safety, unplug all peripheries, discharge the battery below 25%, and power down your device before beginning disassembly.

    • Remove the two rubber feet on the lower case.

    • If you intend to reuse the rubber feet: Use a hairdryer or iOpener to lightly heat the feet to loosen the adhesive that secures them prior to removal. Take care not to stretch out the rubber.

  2. DPYHWHEByGrQmKor

    • Remove the six M2XL6 Phillips screws that secure the lower case.

  3. wJOsN2hAYLtOqXCo
    wJOsN2hAYLtOqXCo
    tXxJuK6of6gAn3BD
    NCcPaIRCERvbarwV

    • Insert a nylon spudger into the seam between the lower case and chassis.

    • Pry around the entire perimeter until the lower case fully releases.

    • Remove the lower case.

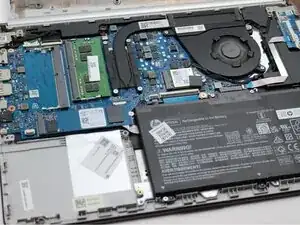

  4. yiSTrgqmTNThcgJl
    yiSTrgqmTNThcgJl
    ZoJwXmUahe3IlpFC

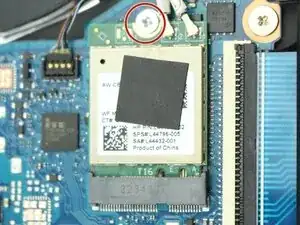

    • Remove the single M2x6.5 screw that secures the Wi-Fi module.

  5. TUohuqrgIFDXeRtX

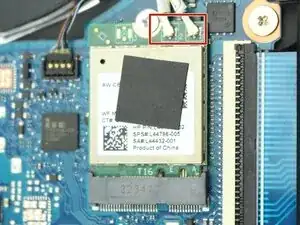

    • Use the pointed end of a spudger to lift and disconnect the two Wi-Fi module coaxial connectors.

  6. MC5SKKIhUaUaJKiH
    MC5SKKIhUaUaJKiH
    rbxcpvlOv1TxSYbV

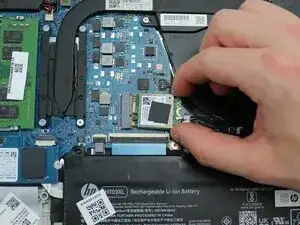

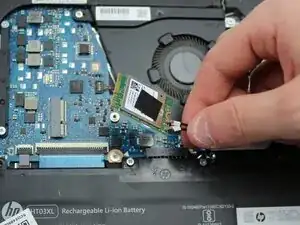

    • Pull the Wi-Fi module directly out of its socket to remove it.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
