Introduction
-
-

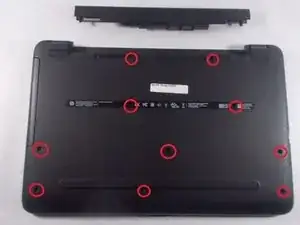

Turn off your laptop and flip it upside down onto a flat surface.
-
Slide the battery lock tabs towards each other to unlock the battery.
-
Lift the battery from the center and remove.
-
-
-
Align the new battery with the cut-out in the laptop.
-
Insert the battery into it slot until you hear a "click" indicating the battery is fully seated.
-
-
-

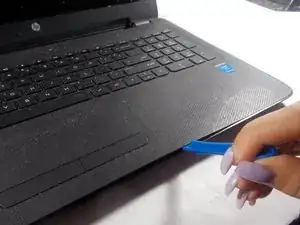

Flip the computer back over and use an opening tool to pry the keyboard up from the bottom of the computer.
-

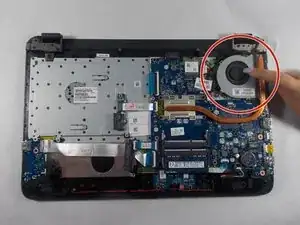

Once the keyboard is removed, locate the fan.
-
-
-

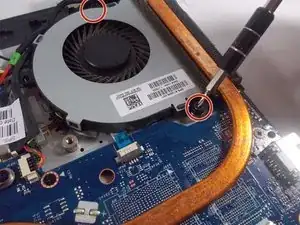

Use your Phillips screwdriver to remove the two screws on either side of the fan.
-

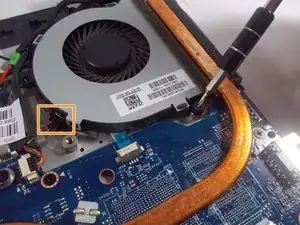

Unplug the wire that is connected to the fan.
-
Remove the fan.
-
To reassemble your device, follow these instructions in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
