JBL Tune 720 BT Headphones Right Speaker Driver Replacement

Written By: Justin Mosman
  • Comments: 0
JBL Tune 720 BT Headphones Right Speaker Driver Replacement

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

This guide will detail how to open your JBL Tune 720 BT's, locate and replace the right speaker so that you can have them back in working order.

  1. rlbpTvgNcBA2Fv3X
    rlbpTvgNcBA2Fv3X
    gLBww3w6JRBnaTqQ

    • Insert the Jimmy into the slit of the ear cup.

    • Insert the metal spudger with the Jimmy and use the spudger to pry the ear cup off.

  2. gfmmkpnwaTK625LW
    gfmmkpnwaTK625LW
    JlZHeYtPBbRfjvwH

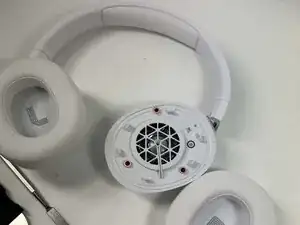

    • Remove the three screws using a Phillips #0 screwdriver.

  3. SEv4CTe32PSvXNuV

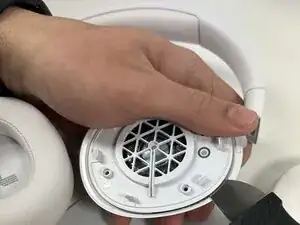

    • Use the Jimmy to pry out the white covering from the headphones.

  4. JN5b3CGhWbRAMXkG

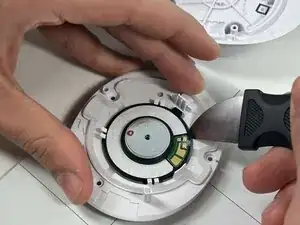

    • Use the Jimmy to pry out the right speaker driver.

Conclusion

To reassemble your device, follow these instructions in reverse order.
