Introduction
This guide will help you through the steps of disassembling the display on a Lenovo IdeaPad 3-15ADA05 laptop. Whether you're repairing a cracked screen, fixing a flickering display, or upgrading the panel, this step-by-step instruction will let you access the display assembly safely and effectively. Before you begin, turn off the laptop fully and detach it from any power source to avoid electric shock or hardware damage.
-
-

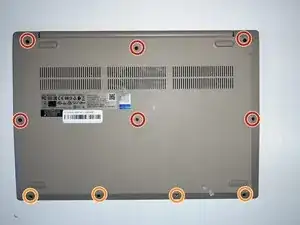

Remove the six 5 mm screws located at the top half of the laptop using a Phillips #0 screwdriver.
-
Remove the four 2.5 mm screws located at the bottom of the laptop using a Phillips #0 screwdriver.
-
-
-

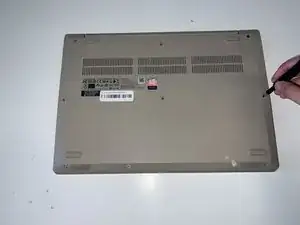

Insert the opening pick between the base plate and the bottom of the laptop and pry the clips loose around the edge until the base pops off.
-
-
-

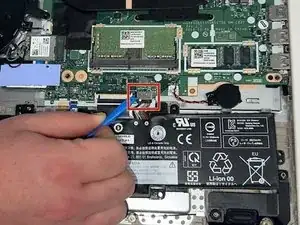

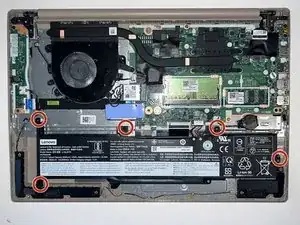

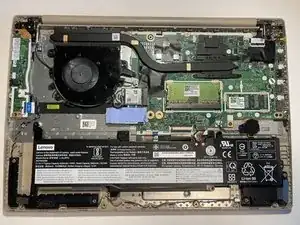

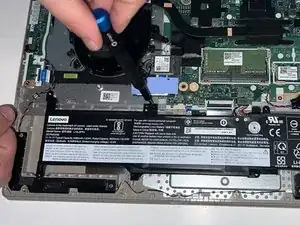

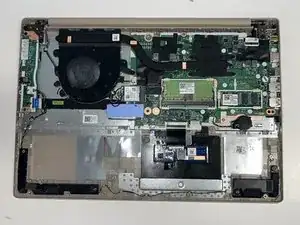

Using the opening tool, disconnect the battery connector from the motherboard, and then remove the battery.
-
-
-

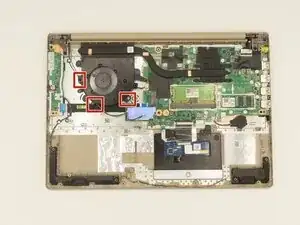

Disconnect the black and white antenna cables from the wireless card using the opening tool.
-

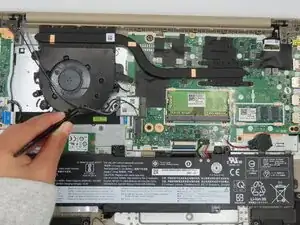

Unwrap the cord from the three clips.
-
To remove the cords, push them through the small gaps.
-
To reassemble your device, follow these instructions in reverse order.
