Logitech G X56 HOTAS Joystick Thumb HATs (Witch and Castle) Cover Replacement

Written By: Hannah Henderson
  • Comments: 0
Logitech G X56 HOTAS Joystick Thumb HATs (Witch and Castle) Cover Replacement

Difficulty

Moderate

Steps

7

Time Required

5 - 7 minutes

Introduction

If your Logitech G X56 HOTAS Joystick (model 945-000058) no longer reacts to input from the Thumb HATs (the Witch Hat and Castle Hat), use this guide to replace the faulty HATs.

The Witch Hat and Castle Hat are multi-directional thumb controls located on the joystick. Simulation games use them for view panning, radar control, and menu navigation. Faulty HAT switches can cause stuck directions, random inputs, or a lack of response during the simulation.

Check both switches individually and verify the problem persists across different USB ports or devices.

Before beginning, make sure to disconnect the joystick from all power and USB connections.

  1. kk24GUtyyGRpVUDg
    kk24GUtyyGRpVUDg
    dhMNKSBLfapTv6gx

    • Turn the locking bezel counterclockwise, then remove the joystick from the joystick base.

  2. VVSqSavQFyZLHXhq
    VVSqSavQFyZLHXhq
    j4IT5oIlyHF3iPi3
    DDgaM3LGqxMprcNW

    • Remove the five 11.7 mm-long Phillips #0 screws that secure the case.

  3. m3vY3ZH5DS35kZom
    m3vY3ZH5DS35kZom
    FgWpmrLWWgHLtXG6

    • Pull the joystick casing apart to reveal the internal components.

    • The casing will need a little force to split open.

    • Take care not to damage or strain the connected cable.

  4. ZIPy1jcMvRYaQFiA
    ZIPy1jcMvRYaQFiA
    5bqY2vEValSwftvw

    • Grip and pull the white connector directly out of its socket.

    • The connector is fragile. If removed forcefully, it may affect the PCB performance.

  5. KQmvvqKppKoQBG3B
    KQmvvqKppKoQBG3B
    yIVtE2gmYScrUnFk

    • Refer to the left or right side for replacement guides of other parts (left, then right side in order).

  6. aRwKZ4VtPd1CNr4y
    aRwKZ4VtPd1CNr4y
    v4GuWqNOKTsZDhwJ
    GC3v4Vh5TTxUPYf3

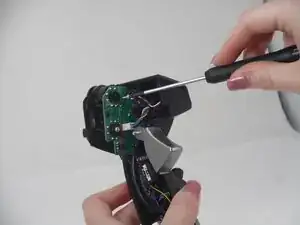

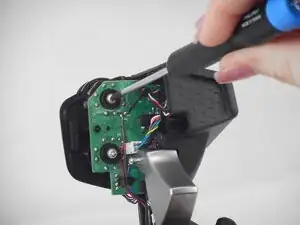

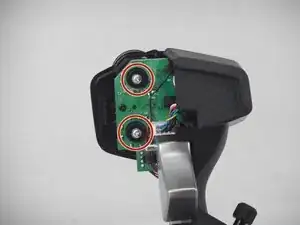

    • Remove the two Phillips #0 6.9 mm-long screws that secure the HAT switch PCB.

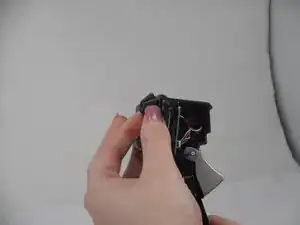

  7. oUg61yWYhFPV4KDK
    oUg61yWYhFPV4KDK
    xKg4rICmRoBMNR2y

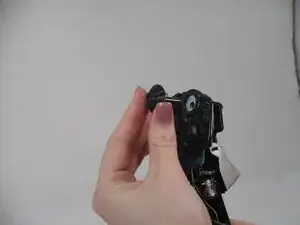

    • Turn the joystick and remove the HAT cover.

Conclusion

To reassemble your device, follow these instructions in reverse order.
