Logitech Gamepad F310 Cable Replacement

Written By: Milton Soto Sanchez
  • Comments: 0
Logitech Gamepad F310 Cable Replacement

Difficulty

Difficult

Steps

7

Time Required

30 - 55 minutes

Introduction

Over time, the USB cable on your Logitech F310 Gamepad controller may become damaged, leading to connection issues. This guide will walk you through replacing the USB cable in a Logitech Gamepad F310 (Model G-U0001), including desoldering the old cable and soldering a new one.

This repair requires the careful handling of electronic components and using a soldering iron. The soldering iron can get very hot and will burn so be careful when operating it.

Before you begin this repair, make sure that your controller is turned off and unplugged from the console. It's also important to unplug or remove the battery.

  1. QanSRRhyxYOZbQxb
    QanSRRhyxYOZbQxb
    QPcW2oHaoAMGoQQy

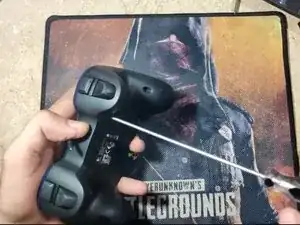

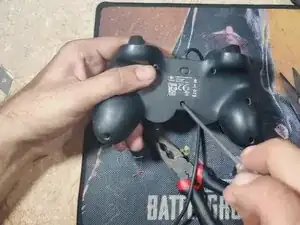

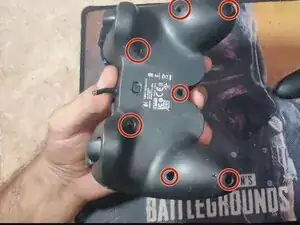

    • Turn the controller face-down on a soft surface.

    • Use a Phillips #1 screwdriver to remove the seven, 10 mm screws from the back shell.

    • Set the screws aside for reassembly.

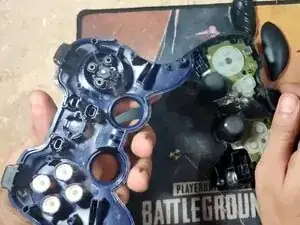

  2. W5BpvfhKDCkwZ31x
    W5BpvfhKDCkwZ31x
    1FGL6hSMTFLSyxVn

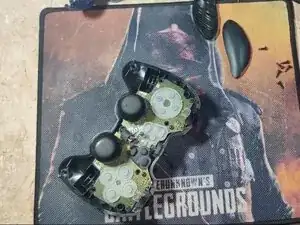

    • Use a plastic opening tool or spudger to release the clips holding the top and bottom of the controller together and separate the housing.

    • The face buttons, D-pad, and triggers are loose inside and may fall out when opening the controller.

    • Lift the back shell to expose the circuit board and cable.

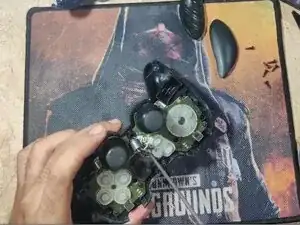

  3. H1OJVaJA4SwhGJRv
    H1OJVaJA4SwhGJRv
    yED4ZfFFASAMqL3p
    FlHePqPrCgVONWxX

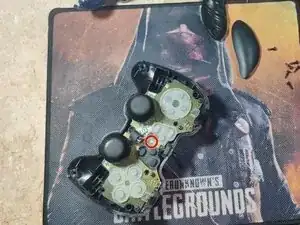

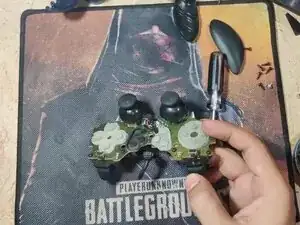

    • Use a Phillips #1 screwdriver to remove the single 6 mm screw securing the circuit board to the bottom shell.

    • Gently lift the circuit board from the rear shell to access the solder points for the USB cable.

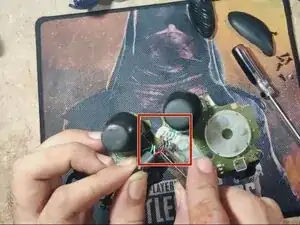

  4. 3geXiEYKnrEGdRtc
    3geXiEYKnrEGdRtc
    3iYGJXpiFBPQDkwi
    lC13y4xHsdTvsMUK

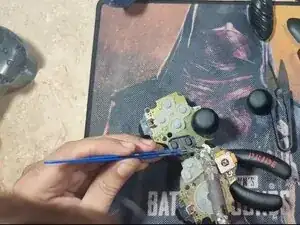

    • Cut the five wires to the damaged cable with a wire cutter first to make handling easier.

    • Use a soldering iron and wick or desoldering pumpto remove solder from each of the five pins.

    • Carefully remove each wire with tweezers once desoldered.

    • Be careful not to overheat the board or damage the pads during desoldering.

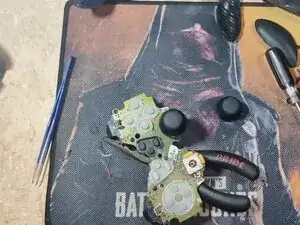

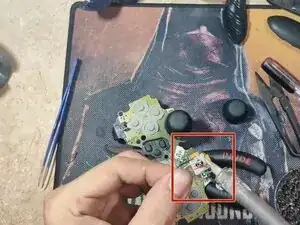

  5. x6IHDGvFf2UUWZGD
    x6IHDGvFf2UUWZGD
    uesfEfce4sYQVQRO
    oq4cTGZVJo5HUrfa

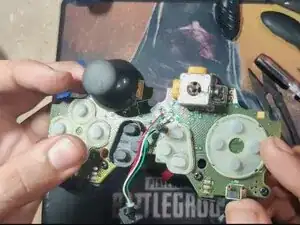

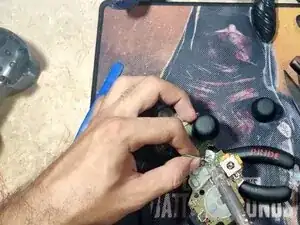

    • Use a wire stripper to strip the ends of the five wires on your replacement cable if it's not already done.

    • Tin the ends of each wire.

    • Match the wire colors to the board’s labeled pads (usually: VCC, D-, D+, GND, Shield).

    • Solder each wire carefully to its correct pad.

    • Double-check your solder joints to make sure there are no bridges or cold connections.

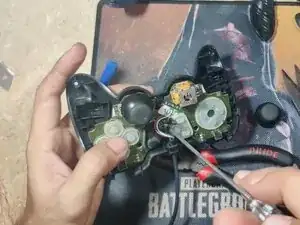

  6. B2bNJTK2HOnFpCDX
    B2bNJTK2HOnFpCDX
    rPAaK3PUiLdG1oOo
    1I3nw3UQWMFwlYU2

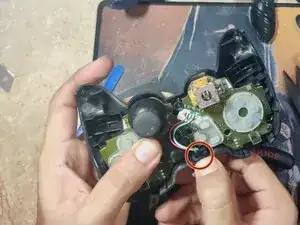

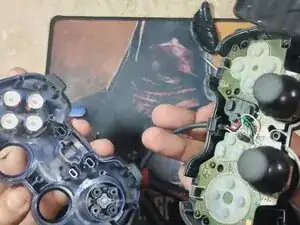

    • Route the new cable along the original path and ensure it sits flat in the groove.

    • Place the circuit board back into the back shell.

    • Use a Phillips #1 to replace the 6 mm screw.

    • Realign the buttons and membranes in the front shell if any were dislodged.

    • Snap the front and back halves together, ensuring nothing is pinched or out of place.

    • The face buttons, D-pad, and triggers are loose inside and may fall out when snapping the front and back halves of the controller together. Attach the back shell to the front shell and not vice versa.

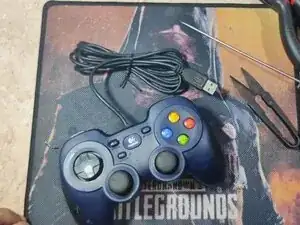

  7. DbOWNLF4oI1SP2lZ
    DbOWNLF4oI1SP2lZ
    nPRKpOhPRi3tCZRD

    • Replace the seven 10 mm-long PH1 screws.

    • Tighten the screws evenly, but avoid overtightening them—you could strip the threads or break the screw heads.

    • Plug the controller into your computer and test all buttons, triggers, and joysticks to confirm everything works.

Conclusion

To reassemble your device, follow these instructions in reverse order.
