OnePlus 9 Pro Charging Port Replacement

Written By: Brayan Santana
  • Comments: 0
OnePlus 9 Pro Charging Port Replacement

Difficulty

Moderate

Steps

18

Time Required

30 - 35 minutes

Introduction

Is your charging port broken/malfunctioning, is the wireless charging not functioning correctly, then this guide is for you. This guide helps you step by step take your OnePlus 9 Pro apart and change out your charging port/wireless charging cable.

  1. xMreHtRPd4NqBVST

    • For your safety, discharge your battery below 25% before disassembling your phone. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

    • Unplug any chargers/peripheries and power off your phone.

  2. 11ZpSXJxehXZUEmy

  3. cxRCoCiTOHy2y3wj
    cxRCoCiTOHy2y3wj
    asBQLijAtskjmips

    • Use a hair dryer to lightly heat the perimeter of the rear glass.

    • Additionally, heat the top-right corner, as there is adhesive further inside of phone in that one spot.

    • Do not hold the hair dryer in one spot on the phone for too long to prevent damage to internal parts of the phone.

  4. qGQDJDFUxOYOcSOY

    • Apply a suction handle as close to the bottom edge as possible.

    • Pull up on the suction handle with strong, steady force to create a gap between the glass and the frame.

    • If you have trouble creating a gap, apply more heat to further soften the adhesive.

    • Insert an opening pick into the gap.

  5. tF1BmEcNeGVg6cGc

    • Slide the opening pick around the perimeter of the rear glass to slice the adhesive.

    • Insert additional opening picks as you slice the adhesive to prevent the adhesive from resealing.

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your hair dryer to reheat it.

  6. AiEeiCMwr3gqfDww
    AiEeiCMwr3gqfDww
    AwuHOrYHnQCnNVPq

    • Carefully lift the rear glass up and off of the phone.

    • During reassembly secure the rear glass with pre-cut adhesive or double-sided adhesive tape. After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  7. g1tRWVAGy2DyllMx
    g1tRWVAGy2DyllMx
    6sNcC11NYbJOeFOg

    • Use one of the opening picks to remove the adhesive on the lower part of the wireless charging cable

  8. AROvLRMxG4tNcmS2
    AROvLRMxG4tNcmS2
    12xUCpYxNtkBv6gm
    MZITfEZgqBJaeCSL

    • Unplug the press connector ribbon cable attached to the flash module by inserting a spudger under the bottom edge and prying straight up.

    • Use an opening pick to remove the flash module by the camera.

    • Use a Phillips #000 screwdriver to remove the eleven 4.9 mm-long screws holding the motherboard cover to the phone.

    • Use an opening pick to pry off the motherboard cover.

  9. sTFd3MWHpxvT2RGj

    • Use a Phillips #000 screwdriver to remove five screws that secure the lower daughterboard cover.

    • Two of the screws have a white head and are 4.8 mm-long. They go in the bottom right corner of the daughter and mother board.

    • The other three screws are black and are also 4.8 mm-long.

  10. Jqy2lusECxY2amiy
    Jqy2lusECxY2amiy
    XinuQDOQT3GcApiM

    • Disconnect the two interconnect cables by inserting a spudger under each lip and prying straight up.

  11. Lqnx1K1aDKCqUJxF

    • Remove the three screws from the loudspeaker using a Phillips #000 screwdriver.

  12. WCADDPYP3juuaLKR

    • Use the spudger to pry up and remove the loudspeaker.

  13. WTTBhObdJoiEXUEO
    WTTBhObdJoiEXUEO
    mDqHlcMCRRStWbRo
    TulHYLScmhgIWgIZ

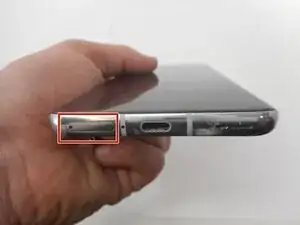

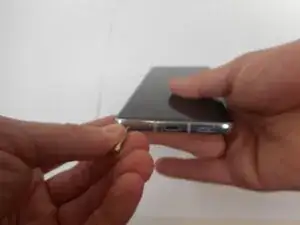

    • Insert a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole on the bottom edge of the phone.

    • Press firmly to eject the tray.

    • Remove the SIM card tray.

  14. ZAm5c1pCZVBJj4Be

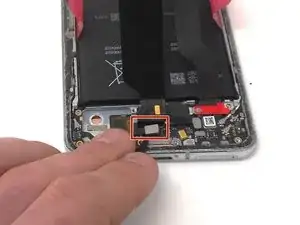

    • Insert a spudger under the lip of the charging port press connector and pry it straight up to disconnect it.

  15. F6xPxY6Fv6FdUxPy
    F6xPxY6Fv6FdUxPy
    PkcJpbadDHd6F2FU
    ZCms4QnjnOFoVIql

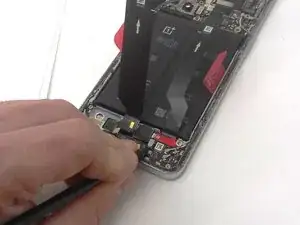

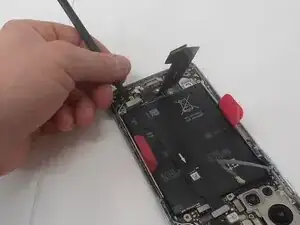

    • Unclip the ribbon cable on bottom left side of the daughter board, using the spudger.

    • Insert a spudger under the lip of the upper-left interconnect cable press connector and pry it straight up to disconnect it.

  16. 1weaPhkm1aA5MHXs

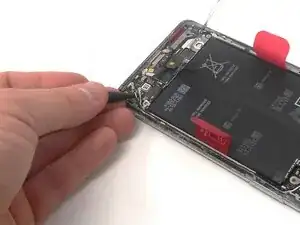

    • Use a spudger to pry the coaxial network cables straight up to disconnect them.

    • Everything should be fully disconnected from the daughterboard.

  17. cMelmRb3Lq5MBj5q

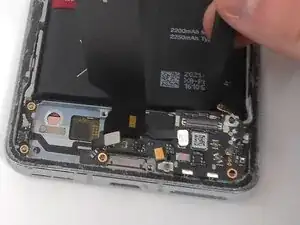

    • Pry out the daughter board out from the top using the spudger.

  18. 4kkT1d1qnpYsZGDi
    4kkT1d1qnpYsZGDi
    YPbjJ5IfBUQlRdwJ

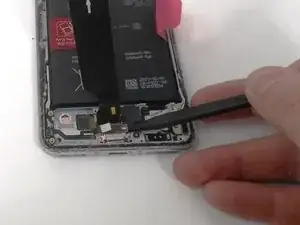

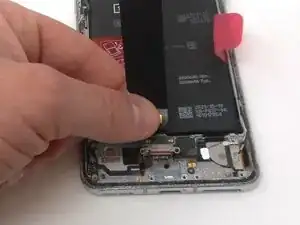

    • Pry off the USB charging port and the ribbon cable with the spudger by prying it on the right side.

    • Remove the charging port.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
