Introduction

Use this guide to replace the button and spring on your Owala Free Sip water bottle.

Consumers have experienced problems with their water bottle lids not functioning properly, either with the lid not opening or closing, or with the button being damaged. However, these issues can be solved with an easy and fast fix, which is a cheaper and more sustainable alternative to buying a new water bottle.

Before starting the guide please make sure you have the required parts/tools, which can all be purchased from a single kit online.

  1. KOGKU2JhJZWcgOLa
    KOGKU2JhJZWcgOLa
    2YhRxtcoRLLmPYut
    tUUDSZnFIUTR4x1s

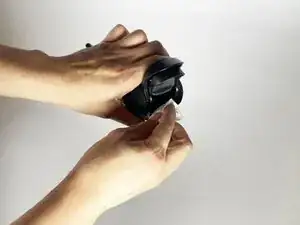

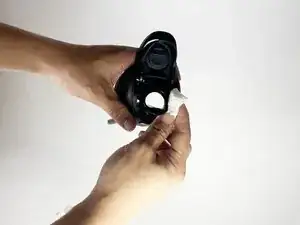

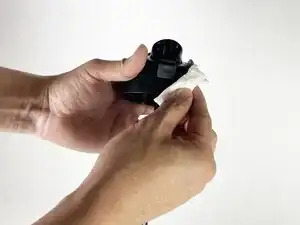

    • Empty any contents within the bottle and clean the lid area dry.

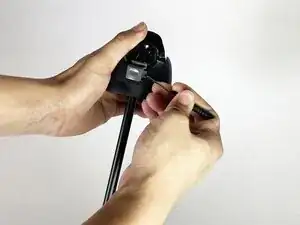

  2. kfJ2M6MeYF1cZaRs
    kfJ2M6MeYF1cZaRs
    VdWOY6QC1QrXiQGB
    5VMhnVnxWvoFZ1AG

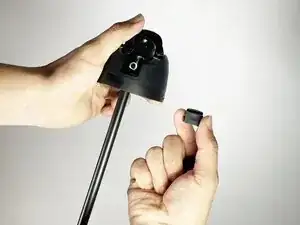

    • Insert the flathead screwdriver into the gap on either side of the button and pry it off.

    • There will be a spring underneath the button.

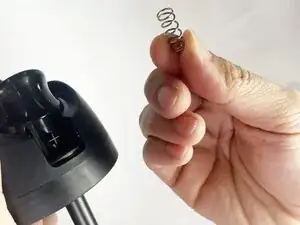

  3. 2ZdMQKQ2eGXE2Vop
    2ZdMQKQ2eGXE2Vop
    kQGUTlrRgjXVcMsM
    yBeCiBLwxoIkZDKv

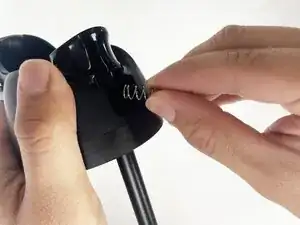

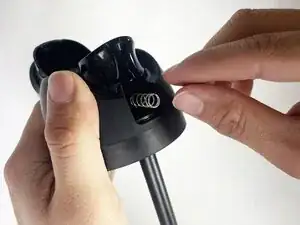

    • Remove the old spring.

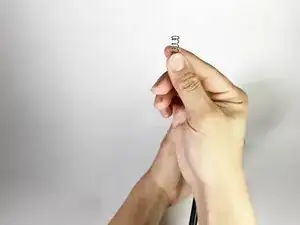

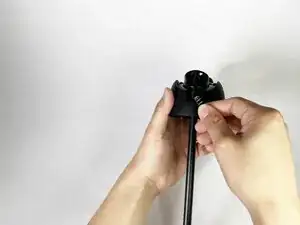

  4. DIG1qIQhDYZyfICF
    DIG1qIQhDYZyfICF
    RHh6PQwKLvSDRTCQ
    PuuNRSPXIKUjAIBM

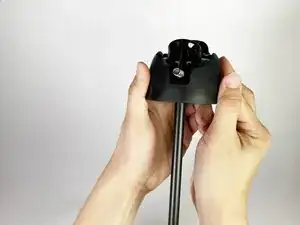

    • Put the new spring in its place.

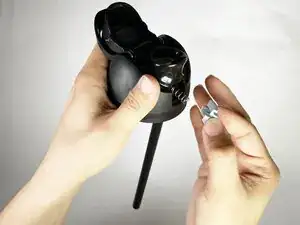

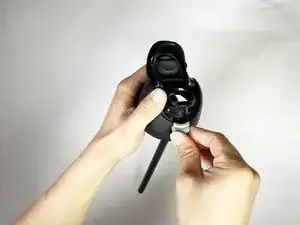

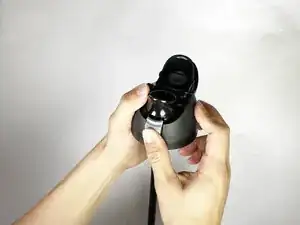

  5. ImUHnDhwLaFakLQS
    ImUHnDhwLaFakLQS
    YWur1KLRUEH2Cvoj
    vgHqsTkRgHNnjJmA
    • Place the new button on top of the spring and apply pressure until it clicks.

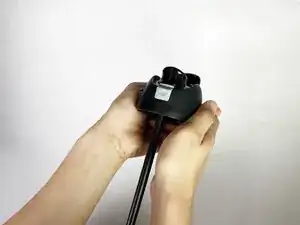

  6. Tbn3fiFLVpShGjdm
    Tbn3fiFLVpShGjdm
    2yiYjTmCRqvpWh63
    VoiMPqIhp6Do1HLX

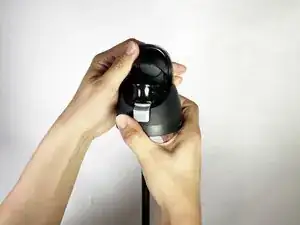

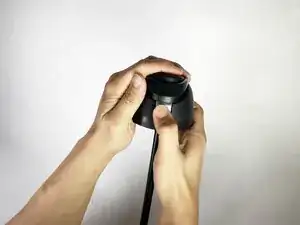

    • Close the lid and press the button repeatedly to ensure it functions correctly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
