Roborock Q5 Max Plus Battery Replacement

Written By: Fernando Rivera
  • Comments: 0
Roborock Q5 Max Plus Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

10 - 15 minutes

Introduction

If your Roborock Q5 Max Plus isn’t holding a charge like it used to, it might be time to replace the battery. Over time, rechargeable lithium-ion batteries degrade, leading to reduced runtime or unexpected shutdowns. This guide will walk you through safely replacing the battery in your Roborock Q5 Max Plus, helping you restore your robot vacuum to peak performance. Power off the device and disconnect it from the charging dock before beginning.

  1. qorwAALxTKxltKck
    qorwAALxTKxltKck
    mKRwWeBRbEn3SNGP

    • Carefully flip the Roborock upside down on a soft surface (e.g., towel) to avoid scratches.

    • Turn off the vacuum using the main switch underneath.

  2. QhKKe5mm1WklsjF2
    QhKKe5mm1WklsjF2
    TGbiIMirqhyOKl3U
    Kkcw3MkMlJEF2LVt

    • Hold down the side brush with one hand to prevent it from moving.

    • Use a Phillips #1 screwdriver to remove the single screw securing the side brush.

    • Remove it from the base.

  3. 1mWSKYEsnkSuZSYN
    1mWSKYEsnkSuZSYN
    TLLgND5hsbm2ZCDQ

    • Use a Phillips #1 screwdriver to remove the eight 14 mm screws that secure the bottom shell.

  4. yGGujOd4QxX2ERrg

    • Gently lift the the bottom shell up and off.

    • If you encounter resistance, double-check for any hidden screws that may have been overlooked.

  5. MAUKAvb5ecQpOQ6i
    MAUKAvb5ecQpOQ6i
    LII6FuImogrkBdaR
    b4PDrWmP5wqVBbbg

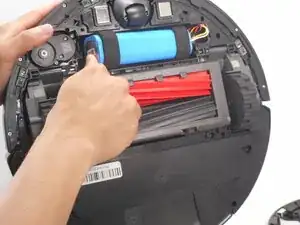

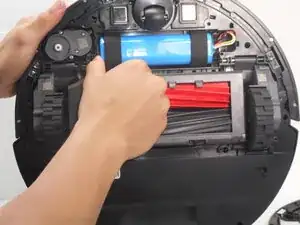

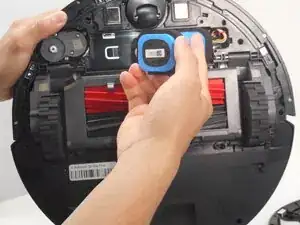

    • Carefully pry out the battery and remove it from its housing.

    • Don't fully remove it as its still connected to the vacuum.

  6. SM2PjbMIxhGjxkjP
    SM2PjbMIxhGjxkjP
    FtnprNReUmQmpCvb
    1u2TWvXMElosVjLX

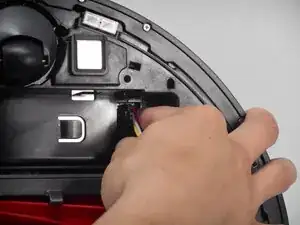

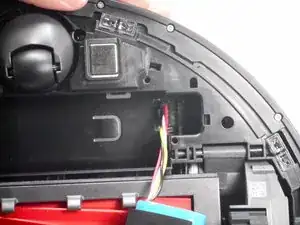

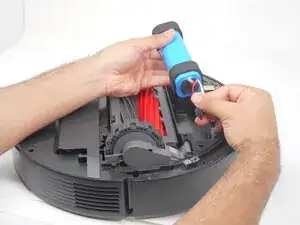

    • Carefully press on the side tab of the connector to release the latch, then pull the connector straight up and out of its port.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting or ask our Answers community for help.
