Shark Navigator Lift-Away Pro NV356E V5 Brush Roller Belt Replacement

Written By: Neena Smith
  • Comments: 0
Shark Navigator Lift-Away Pro NV356E V5 Brush Roller Belt Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

If you are having issues with getting your brush roller to roll properly, the brush roller belt may be at fault.

  1. YaUbMtHUEMHTGCSm
    YaUbMtHUEMHTGCSm
    tDAnAaktIR21AXhi
    KeEXDLYpgvWcxmDn

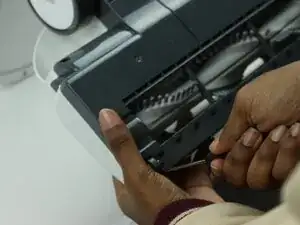

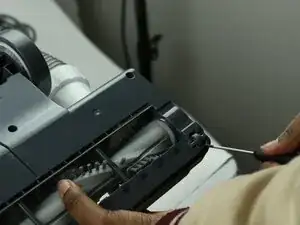

    • Flip the vacuum over.

    • Remove the bottom wheels with a spudger.

  2. yc4K1WLcRExCNBtk
    yc4K1WLcRExCNBtk
    ZvG6QWxmDelbZlew
    4KsAnlmhkFHNOxZU

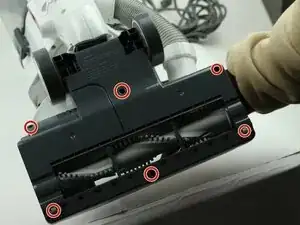

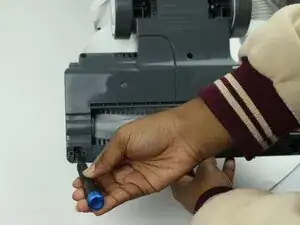

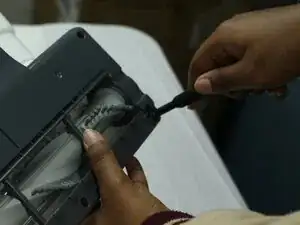

    • Remove the six screws on the bottom of the roller brush compartment using a Phillips #1 screwdriver.

  3. scspkQIfb6gyWJHF

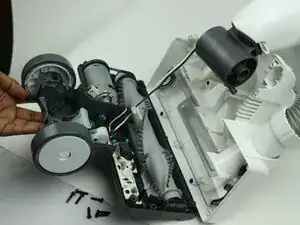

    • Remove the grey cover to reveal the roller compartment.

  4. UkeJGFsZLfCI6gNW
    UkeJGFsZLfCI6gNW
    26lXXDBU6EodgtcM

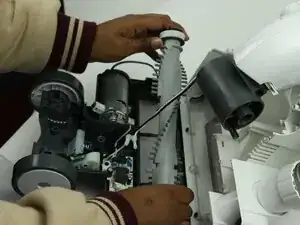

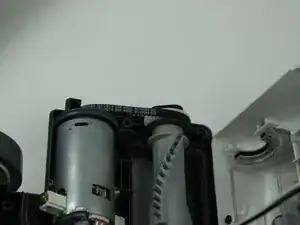

    • Lift up the brush roller.

    • Remove the belt from the brush roller.

Conclusion

To reassemble your device, follow these instructions in reverse order.
