Shark Navigator Lift-Away Pro NV356E V5 HEPA Brush Roller Replacement

Written By: Mikiya McMillion
  • Comments: 1
Shark Navigator Lift-Away Pro NV356E V5 HEPA Brush Roller Replacement

Difficulty

Moderate

Steps

4

Time Required

5 minutes

Introduction

This guide will help you replace your vacuum's brush roller.

  1. YaUbMtHUEMHTGCSm
    YaUbMtHUEMHTGCSm
    tDAnAaktIR21AXhi
    KeEXDLYpgvWcxmDn

    • Flip the vacuum over.

    • Remove the bottom wheels with a spudger.

  2. yc4K1WLcRExCNBtk
    yc4K1WLcRExCNBtk
    ZvG6QWxmDelbZlew
    4KsAnlmhkFHNOxZU

    • Remove the six screws on the bottom of the roller brush compartment using a Phillips #1 screwdriver.

  3. scspkQIfb6gyWJHF

    • Remove the grey cover to reveal the roller compartment.

  4. WbhECwsCHykaMaCw
    WbhECwsCHykaMaCw
    N3YdTUclPikNO1OM
    cAgjwu31aMJKsfnr

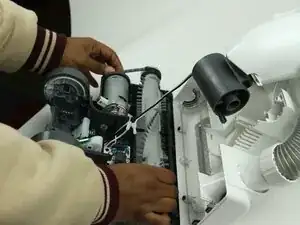

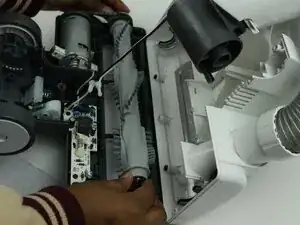

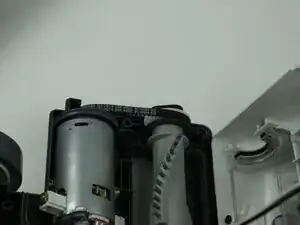

    • Lift the old roller brush.

    • Remove the belt from the roller brush.

    • Remove the roller brush from the vacuum.

Conclusion

To reassemble your device, follow these instructions in reverse order.
