Shark UltraCyclone CH951 U4 Filter Replacement

Written By: Teagan McLennan
  • Comments: 0
Shark UltraCyclone CH951 U4 Filter Replacement

Difficulty

Easy

Steps

4

Time Required

5 - 10 minutes

Introduction

This guide will provide instruction on how to clean and replace the filter of the Shark UltraCyclone CH951. The filter is a foam part that is covered with felt. The filter stops debris from entering the motor and damaging the interior of the vacuum. If the filter gets clogged or has a defect, it will need to be replaced. This is an easy process.

  1. xIONpYyrKTupWvgi
    xIONpYyrKTupWvgi
    GPvdThj1wBe5JlEW
    MxWfqtthD1dwILPD

    • Press the dust cup release button and gently pull the dust cup away from the body of the vacuum.

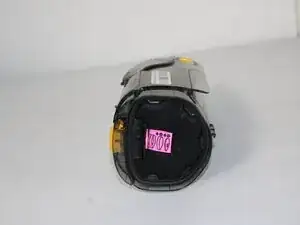

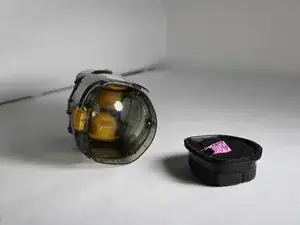

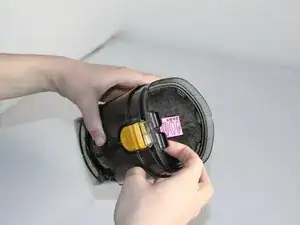

  2. ZtQeUnOPAE1KaGLb
    ZtQeUnOPAE1KaGLb
    iQ4kThGgZPKWMRHM
    61SH4ohERyeCMesX

    • Place your fingers under the black tab on the plastic holder. Gently pull towards you.

    • The entire component should come out.

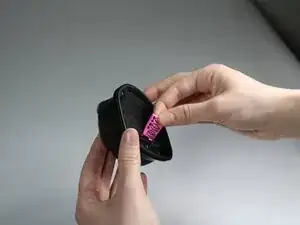

  3. VVGNrHejFZSjuO1o

    • Gently pull on the pink tag tab to remove the covering.

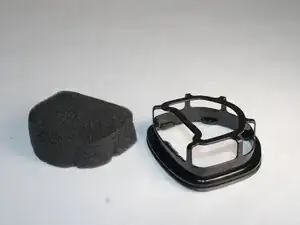

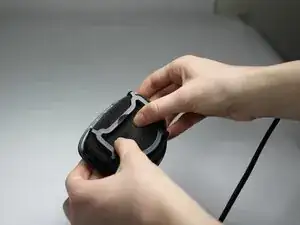

  4. aIQ6K4cQCnLgweKr
    aIQ6K4cQCnLgweKr
    MnrggcbDwRtAuV45
    ObnstLPANuwUCOoK

    • Rotate the component, and gently push from the bottom to dislodge the filter from the plastic holder.

    • Clean the filter if there is dirt or debris that is clogging the suction by running it under water and letting it dry completely before reassembling.

    • Replace the component if there is a defect.

Conclusion

To reassemble your device, follow these instructions in reverse order.
