Introduction

This guide will explain how to effectively replace the battery on the bottom of the eufy L60. If you're considering a replacement for your battery, you can easily purchase one through the official eufy L60 website. The battery is essential for the device to have power and be able to turn on and function. The most common symptoms signaling your battery needs replacement are that the device doesn't have power and will refuse to turn on. A user guide that may be relevant is one from the eufy L60 website.

  1. QWlHtlagQUs31mTi

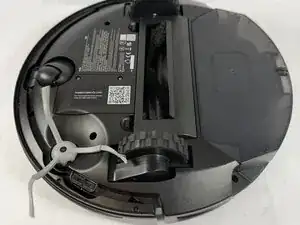

    • Flip over the eufy L60 vacuum.

  2. urCdINdrMooaUC2f

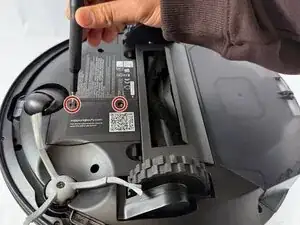

    • Remove the 4.1 mm screws using a Phillips #1 screwdriver.

  3. gCJRNXmJuYRdRQLc

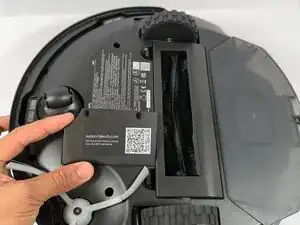

    • Lift up the tab on the battery compartment.

  4. PMydKdjEqUJI2FrJ
    PMydKdjEqUJI2FrJ
    52gO5Q1EcL1KMT4f

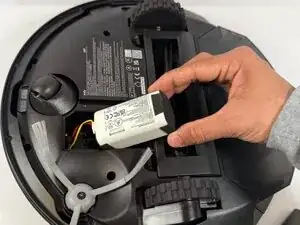

    • Lift the battery out of the compartment using your fingers.

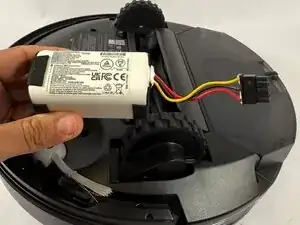

    • Unplug the battery from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
