History of video games/Platforms/PV-1000

•

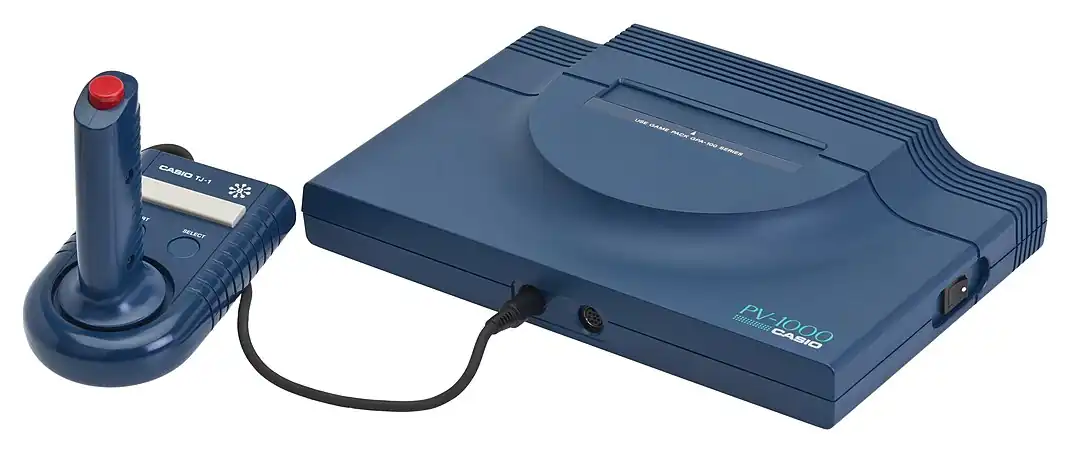

  The Casio PV-1000 with controller attached.

The Casio PV-1000 was released in October 1983 at a cost of 14,800 yen.^[1]

A common claim is that the Casio PV-1000 was discontinued within weeks of launching.^[2][3][4] The PV-1000 was later followed by the Casio Loopy.

The system is often remembered for its unique visual design,^[5] featuring a concave deck curve and deep blue colors.

The PV-1000 uses a D780C-1 processor, a version of the Z80A, clocked at 3.579 MHz.^[1][6] The system had 1 kilobyte of RAM, plus an additional 1 kilobyte of memory for the character generator^[1][3] This gave the system a combined 2 kilobytes of RAM.

A D65010G031 generates graphics with an 8 color palette and 32 sprites.^[5] This chip also generates 3 channel sound.^[5]

• Pooyan
• Super Cobra
• Dig Dug
• Warp & Warp
• Amidar

• Space Panic

• Turtles

•
  Controller ports are conveniently located on the front of the console.
•
  A switch is located on the side of the console.
•
  Rear ports.
•
  A small notch is in the rear left.

•
  The PV-1000 controller uses a joystick.
•
  A mode switch is on the back of the controller.
•
  A red button is located on top of the joystick.
•
  Some buttons are on the base of the controller.
•
  The controller connects to the console over a wire.

•
  The circuit board is covered by a maze of wires.
•
  The area by the cartridge port is relatively bare compared to the rest of the board.
•
  Significant RF shielding covers the console internals.
•
  The motherboard with casing removed.
•
  The large metal plate in the back of the motherboard is connected to an HA 17805 voltage regulator - likely to serve as a heat sink.
•
  The external ports can clearly be seen.
•
  Wires seem to be channeled near the front of the console when possible.
•
  A top down view of the motherboard.
•
  The bottom of the motherboard, with traces and one IC.
•
  The bottom casing of the console has helpful labels molded into the plastic. This system was made in Japan.
•
  Tall pegs hold the motherboard in place.
•
  RF shielding is also used on the bottom of the console case.
•
  Note the thick plastic used around the cartridge port - a place likely to experience extra wear.
•
  A small mechanical assembly can be seen under the cartridge sheath, likely related to the cartridge flap.
•
  The joystick with casing removed.
•
  Several layers sit on top of the PCB.
•
  The mechanical parts of the joystick.
