Logitech G X56 HOTAS Throttle Switch Board Replacement

Written By: Elizabeth Matlock-Buchanan
  • Comments: 0
Logitech G X56 HOTAS Throttle Switch Board Replacement

Difficulty

Moderate

Steps

7

Time Required

35 - 45 minutes

Introduction

If the toggle switches on your Logitech G X56 HOTAS Throttle are unresponsive, stuck, or intermittently malfunctioning, the issue may stem from a faulty switch board. This guide will walk you through the process of replacing the switch board to restore full input functionality. Please note that this repair requires soldering, as the switches are directly connected to the board. Make sure you are comfortable with basic soldering techniques before beginning.

If you're unfamiliar with soldering, review the How To Solder and Desolder Connections guide and take appropriate safety precautions before beginning.

  1. eoRHxl5ycyRA6UlT
    eoRHxl5ycyRA6UlT
    MimpKXKQRT2jhtTT

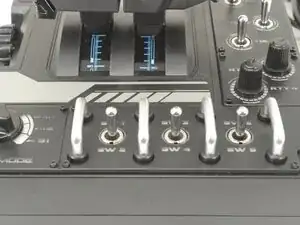

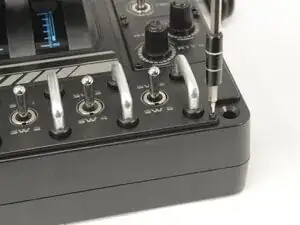

    • Remove the eight 8.6 mm long 1.5 mm hex screws from the label plate.

  2. sewIVEUHFuZhTSDW

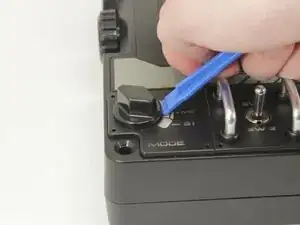

    • Use an opening tool to pry off the mode switch knob.

  3. V5CCIAocJcpbC5YC
    V5CCIAocJcpbC5YC
    IQHVadsnMepTlPoo
    bUvEOKrat3tKoFWd

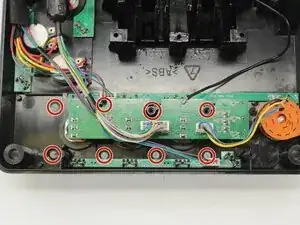

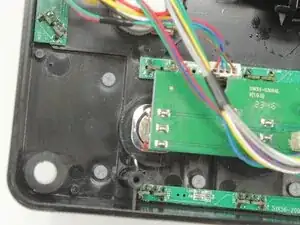

    • Remove the eight 12.5 mm long Phillips #1 screws from the underside of the label plate.

    • These screws are plastic! Be very careful when applying force.

  4. ZfZePEFDcCuZkfyh
    ZfZePEFDcCuZkfyh
    yoLHdpEoAuUOjjSh

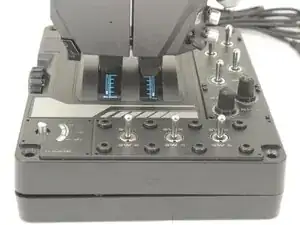

    • Place the throttle right side up again, using the bottom panel as a coaster.

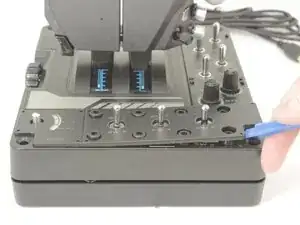

    • Gently pry the label plate from the body of the throttle.

  5. mMqAMp6TBUiSSQyE
    mMqAMp6TBUiSSQyE
    Za1oUB3ZI32byR6V

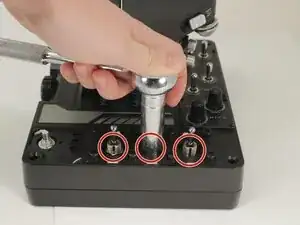

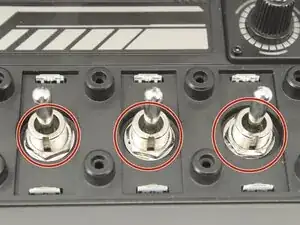

    • Remove the 14 mm nuts at the base of the switches.

  6. JGQjAFSIHFf1XUCG

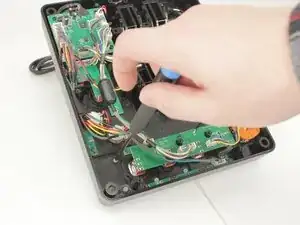

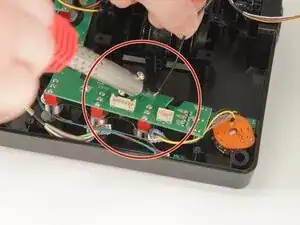

    • Disconnect the connectors and de-solder the one black wire.

  7. hc5vLDcW6aiOaEA4

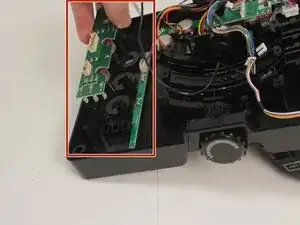

    • Remove and replace the toggle switch daughterboard.

Conclusion

To reassemble your device, follow the above steps in reverse order.
Take your e-waste to an R2 or e-Stewards certified recycler.
