How to align custom dialog centre in android ?

Question

I am working on the application where i wanted to display the dialog to be screen size. So i used code below.I got the solution through here Alert message is not displaying in alert dialog box?

 AlertDialog.Builder builder = new AlertDialog.Builder(this);
    TextView title = new TextView(this);
    title.setText("DM2");
    title.setBackgroundColor(Color.DKGRAY);
    title.setPadding(10, 10, 10, 10);
    title.setGravity(Gravity.CENTER);
    title.setTextColor(Color.WHITE);
    title.setTextSize(20);


    TextView text = new TextView(this);
    text.setText("Hello This text");
    text.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.FILL_PARENT));
    text.setTextSize(20);
    text.setGravity(Gravity.CENTER);

    //Creates a linearlayout layout and sets it with initial params
    LinearLayout ll = new LinearLayout(this);
    ll.setLayoutParams(new LayoutParams(LayoutParams.FILL_PARENT, LayoutParams.FILL_PARENT));
    ll.setGravity(Gravity.CENTER);
    ll.addView(text);
    builder.setCustomTitle(title);
    builder.setPositiveButton(
            "Ok", new DialogInterface.OnClickListener() {
                public void onClick(DialogInterface dialog, int id) {
                    dialog.dismiss();
                }
            });

    Dialog d = builder.setView(ll).create();
    //Fills up the entire Screen
    WindowManager.LayoutParams lp = new WindowManager.LayoutParams();
    lp.copyFrom(d.getWindow().getAttributes());
    lp.width = WindowManager.LayoutParams.FILL_PARENT;
    lp.height = WindowManager.LayoutParams.FILL_PARENT;
    d.show();
    d.getWindow().setAttributes(lp);

But I want dialog to be appeared in center aligned. Now it is display in top of the window. I tried with lp.garvity = Gravity.center, but didn't work. and If the device orientation changes, i need to press ok button more time to close the dialog. How to fix this?

Thanks in advance Pushpa

did you try writing d.getWindow().setAttributes(lp); before d.show(); ? — Sebastian Breit, May 04 '12 at 10:57
I tried but it will not display the alert box to window size — pushpa, May 04 '12 at 11:07

score 9 · Answer 1 · edited May 23 '17 at 11:52

9

I'm little late, but better late then never :-) you can use the code below: (I saw also here)

dialog = new Dialog(activity, android.R.style.Theme_Translucent_NoTitleBar);

dialog.setContentView(R.layout.activity_upload_photo_dialog);

Window window = dialog.getWindow();
window.setLayout(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);
window.setGravity(Gravity.CENTER);

//The below code is EXTRA - to dim the parent view by 70%
LayoutParams lp = window.getAttributes();
lp.dimAmount = 0.7f;
lp.flags = LayoutParams.FLAG_DIM_BEHIND;
dialog.getWindow().setAttributes(lp);
//Show the dialog
dialog.show();

Hope I helped...

edited May 23 '17 at 11:52

Community

1
1

answered Sep 02 '13 at 22:26

Woody

1,589
14
16

Nice answer, I use `window.setLayout(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT)` instead of 'window.setLayout(LayoutParams.WRAP_CONTENT, LayoutParams.MATCH_CONTENT)',it works fine,thanks. – aolphn Apr 24 '20 at 06:42

score 4 · Answer 2 · edited May 28 '15 at 13:44

4

This works for me:

lp.height = WindowManager.LayoutParams.WRAP_CONTENT;

edited May 28 '15 at 13:44

duggu

37,851
12
116
113

answered May 04 '12 at 11:12

Niraj Gupta

311
1
4
9

@pushpa: hey try gravity center by setting height to wrap_content – Niraj Gupta May 04 '12 at 11:29
@unreachable: I tried this will display the dialog in center, I have view with 3 buttons in background and want to hide that view. height wrap content will not hide the background view. – pushpa May 04 '12 at 11:34
@pushpa: hey in that case you can make the background of your popup not transparent you can use getWindow().setBackgroundDrawableResource(android.R.color.black); – Niraj Gupta May 04 '12 at 11:42

score 2 · Answer 3 · edited May 04 '12 at 13:17

2

Try to use android:layout_gravity="center" instead of android:gravity="center"... It may be helpful for you..

android:layout_gravity="center"

or

you can try this..

    <activity android:theme="@android:style/Theme.Dialog"
        android:name=".Splash">
    </activity>

Write full xml code and make simple Activty and add one attribute in AndroidManifest.xml, when you registering your Activity into AndroidManifest.xml

edited May 04 '12 at 13:17

Avi Kumar

4,403
8
36
67

answered May 04 '12 at 10:56

Vishesh Chandra

6,951
6
35
38

For custom dialog you can do one thing, Make your whole screen like Activity screen, and add the Theme:@dialog in AndroidManifest.xml.. that your whole content will display as a dialog. – Vishesh Chandra May 04 '12 at 11:09
I had the mAlertDialog?.window?.setLayout stretched to match parent but i wanted to centre the AlertDialog itself in the screen. using layout_gravity instead of gravity worked for me! – user1127217 Jun 22 '21 at 18:34

score 1 · Answer 4 · answered May 04 '12 at 11:14

1

Maybe this works:

WindowManager.LayoutParams WMLP = dialog.getWindow().getAttributes();

WMLP.gravity = Gravity.CENTER_HORIZONTAL|Gravity.CENTER_VERTICAL

dialog.getWindow().setAttributes(WMLP);

answered May 04 '12 at 11:14

Sebastian Breit

6,137
1
35
53

DeltaCap019 · Answer 5 · 2013-09-20T09:33:34.973

Note :- This is for "custom layout"... :)

I was struggling with the same, and after struggling for hours i came to this result

Earlier i was creating the dilaoge like this : -

 final Dialog dialog = new Dialog(PopupforeditActivity.this);

After adding style "No titleBar" it started fetching the layout the way I had created.

For this you have to create the layout with params "fillParent" and create the dialoge like this

    final Dialog dialog = new Dialog(PopupforeditActivity.this,android.R.style.Theme_Translucent_NoTitleBar_Fullscreen);
dialog.setContentView(R.layout.dialog_billing_cart);
        dialog.setCancelable(true);

The above is coding part

You in Layout part put your whole layout in RelativeLayout

and give your layout property android:layout_centerInParent="true"

Ex:-

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:background="@android:color/transparent" >


<!--Your Layout-->

  <ScrollView
        android:id="@+id/scrlView_FormHolder"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"

        android:layout_centerInParent="true"

        android:layout_marginBottom="10dp"
        android:layout_marginLeft="10dp"
        android:layout_marginRight="10dp" >
</ScrollView>

</RelativeLayout>

And if you don't want to miss "title" You can have that in your custom layout as TextView ..

Hope it will help.. As it helped me :)

score 0 · Answer 6 · answered Dec 29 '20 at 04:41

I used this style to show dialogs in centre android

<style name="CustomDialogue" parent="Theme.MaterialComponents.Dialog">
    <item name="android:windowIsTranslucent">true</item>
    <item name="android:windowBackground">@android:color/transparent</item>
    <item name="android:windowNoTitle">true</item>
    <item name="android:layout_gravity">center</item>
    <item name="android:minWidth" type="dimen">600dp</item>
    <item name="android:layout_margin" type="dimen">8dp</item>
</style>

I used android:layout_gravity to show dialog in centre.
minWidth is set because otherwise dialog look narrower.
layout_margin is set so there is enough margin around dialog in smaller screens.

How to align custom dialog centre in android ?

6 Answers6

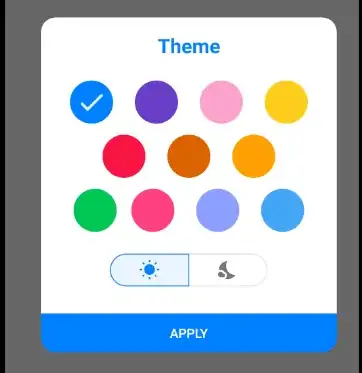

Before android:layout_gravity="center"
