The title/action bar ID in android?

Question

I wanted to try out this funny title bar coloring, but it doesn't work for me as

getWindow().findViewById(android.R.id.title);

returns null. So I had a look at it with Hierarchy Viewer and found out that the view is called id/action_bar instead. But there's no R.id.action_bar (autocomplete doesn't offer it and there's nothing like this is R.java).

So now I'm doubly confused:

Is android.R.id.title sort of obsolete now (I'm using version 16 in my emulator)?
Where does id/action_bar come from?
What's the recommended and simple practice w.r.t. compatibility?

Should I get ActionBarSherlock? I originally just wanted to change the title bar color... not fool around with it a lot.

Steven de Jong · Answer 1 · 2022-03-08T04:28:46.553

Use the code below to get the ActionBar's id:

val actionBarId = resources.getIdentifier("action_bar", "id", packageName)

And use findViewById you can find the action bar.

Then find the title from actionbar's children (in normal cases):

val actionbar = findViewById<ViewGroup>(actionBarId)
for (view in actionbar.children) {
    if (view is TextView) {
        // this is the titleView
    }
}

However, if you just want to change the title view's text, just use getSupportActionBar:

supportActionBar?.apply {
    // set title text
    title = "Hello"
    // set colored title text
    val coloredTitle = SpannableString("Hello")
    coloredTitle.setSpan(ForegroundColorSpan(Color.RED), 0, coloredTitle.length, 0)
    title = coloredTitle
}

score 1 · Accepted Answer · edited Feb 13 '14 at 00:46

1

I would recommend using ActionBarSherlock if you're looking for compatibility with Android versions before API level 14 / Android 4.0.

Changing the background of the ActionBar is straightforward and is most easily done via styles. See the "Background" section of http://android-developers.blogspot.com/2011/04/customizing-action-bar.html

You can also change it via code. Put this in your onCreate():

GradientDrawable gradientDrawable = new GradientDrawable(GradientDrawable.Orientation.TOP_BOTTOM, new int[] {Color.RED, Color.GREEN});
getActionBar().setBackgroundDrawable(gradientDrawable);

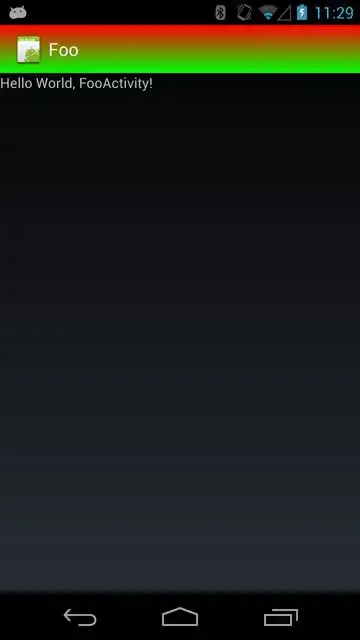

Here is a screenshot of this code in action:

enter image description here

edited Feb 13 '14 at 00:46

Ahmad

69,608
17
111
137

answered Oct 24 '12 at 03:30

louielouie

14,881
3
26
31

As louielouie said, you can do it in either XML or Java, but XML is preferred for styles like this because Android applies your styles as your activity is still loading, so the custom style isn't delayed. – Steven Schoen Oct 24 '12 at 04:35
