I want to expand tableview cell on it's click. There is a tableview in which two cells are expandable and others are not. I need when i click on expandable cell it should show cells under it and on clicking again it should hide. There is a image below defining this.
How can i achieve this functionality, please guide for the above. Thanks in advance.
Here is the complete Tutorial with Expandable UITableView
Here’s the code snip for that.
- (void)tableView:(UITableView *)tableView didSelectRowAtIndexPath:(NSIndexPath *)indexPath
{
if ([self tableView:tableView canCollapseSection:indexPath.section])
{
if (!indexPath.row)
{
// only first row toggles exapand/collapse
[tableView deselectRowAtIndexPath:indexPath animated:YES];
NSInteger section = indexPath.section;
BOOL currentlyExpanded = [expandedSections containsIndex:section];
NSInteger rows;
NSMutableArray *tmpArray = [NSMutableArray array];
if (currentlyExpanded)
{
rows = [self tableView:tableView numberOfRowsInSection:section];
[expandedSections removeIndex:section];
}
else
{
[expandedSections addIndex:section];
rows = [self tableView:tableView numberOfRowsInSection:section];
}
for (int i=1; i<rows; i++)
{
NSIndexPath *tmpIndexPath = [NSIndexPath indexPathForRow:i
inSection:section];
[tmpArray addObject:tmpIndexPath];
}
UITableViewCell *cell = [tableView cellForRowAtIndexPath:indexPath];
if (currentlyExpanded)
{
[tableView deleteRowsAtIndexPaths:tmpArray
withRowAnimation:UITableViewRowAnimationTop];
cell.accessoryView = [DTCustomColoredAccessory accessoryWithColor:[UIColor grayColor] type:DTCustomColoredAccessoryTypeDown];
}
else
{
[tableView insertRowsAtIndexPaths:tmpArray
withRowAnimation:UITableViewRowAnimationTop];
cell.accessoryView = [DTCustomColoredAccessory accessoryWithColor:[UIColor grayColor] type:DTCustomColoredAccessoryTypeUp];
}
}
}
}

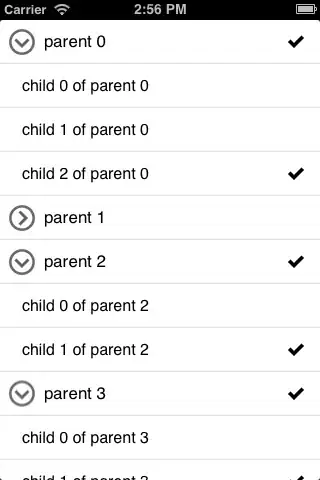

as shown below picture
This and this one solution also help you to understand how to manage Expandable TableView
Okay, what I'm thinking is, The titles, Events, Overhead and Friends would be the custom UIView with UIImageView for background, UILabel for title, and UIButton for expand. So basically
- (NSInteger)numberOfSectionsInTableView:(UITableView *)tableView
having return count of the titles you've.
- (UIView *)tableView:(UITableView *)tableView viewForHeaderInSection:(NSInteger)section
having return UIView for each titles.
- (NSInteger)tableView:(UITableView *)tableView numberOfRowsInSection:(NSInteger)section
having count of the rows within that title. You may need to maintain an array for this.
- (CGFloat)tableView:(UITableView *)tableView heightForRowAtIndexPath:(NSIndexPath *)indexPath;
having height of the cell item
- (CGFloat)tableView:(UITableView *)tableView heightForHeaderInSection:(NSInteger)section
initially it should be 0 (zero) for all sections, when user tap on expand, it should be increase with respect to number of rows * cell height within that section.
- (UITableViewCell *)tableView:(UITableView *)tableView cellForRowAtIndexPath:(NSIndexPath *)indexPath
You may need some good logic for setting all rows for expansion
Your expansion buttons actions something like,
- (void) expandSection:(UIButton *)sender;
that you can identify which section to be expand using sender.tag, so don't forget to add tag properly. You may need an int in .h file for store the current section, and can be use in - (CGFloat)tableView:(UITableView *)tableView heightForHeaderInSection:(NSInteger)section datasource method.
I think What you want is already given by Apple. You can take a look at Sample Code provided by Apple under the title of Table View Animations and Gestures.
I have given the example source code below. You can customize this example based on your requirement.
Source Code Link : Click here
Output Screen:
JKExpandTableView is MIT-licensed iOS library that implements the expandable table view. Be sure to checkout the included sample project as well.
This is possible by the delegate
- (NSInteger)tableView:(UITableView *)tableView indentationLevelForRowAtIndexPath:(NSIndexPath *)indexPath {
//write code here
}
The accepted answer is true but the link is outdated. To get that example to work you have to do extra things:
Download ExpandableTableCells project from here:
https://github.com/cocoanetics/Examples
Download DTCustomColoredAccessory.h and .m files from here: https://github.com/Cocoanetics/DTFoundation/tree/develop/Core/Source/iOS
Put the DTCustomColoredAccessory files in the ExpandableTableCells project.
There you have it a working example, it is easier to edit and move from there instead of trying to write from zero.
