Java Swing GridLayout stretched?

Question

So I have the following Java Code which produces what you see in the image. The layout is pretty much what I wanted except that the buttons are stretched to be equal size and fill. Is there anyway to avoid this without using GridBagLayout like other answers suggest? I tried setting the size of the panel inside to something smaller but it got stretched anyway.

Code:

    //Set-up main window
    JFrame mainwindow = new JFrame();
    mainwindow.setSize(500, 500);
    mainwindow.setTitle("Example");

    //Add components
    JTabbedPane tabs = new JTabbedPane();

    GridLayout experimentLayout = new GridLayout(0,2,0,5);
    JPanel pnl_Logon = new JPanel();
    pnl_Logon.setLayout(experimentLayout);
    JLabel lbl_Username = new JLabel("Username: ");
    JLabel lbl_Password = new JLabel("Password: ");
    JTextField txt_Username = new JTextField(10);
    JPasswordField psw_Password = new JPasswordField(10);
    JButton btn_Logon = new JButton("Logon");
    JButton btn_Clear = new JButton("Clear");
    pnl_Logon.add(lbl_Username);
    pnl_Logon.add(txt_Username);
    pnl_Logon.add(lbl_Password);
    pnl_Logon.add(psw_Password);
    pnl_Logon.add(btn_Logon);
    pnl_Logon.add(btn_Clear);

    tabs.addTab("Logon", pnl_Logon);

    //Draw window
    mainwindow.add(tabs);
    mainwindow.show();

Result:

Java Layout

The layout looks odd, but a "simple" solution (compared to GridBagLayout) could be to wrap the buttons into JPanels that each have a FlowLayout. — Marco13, Jul 07 '14 at 15:28
So each button would be in its own JPanel with Flow Layout? Then I would add each component to another JPanel to be added to the tab? — Kyle, Jul 07 '14 at 15:29
You should probably describe in more detail how the result should look like. You may want to replace the line `tabs.addTab("Logon", pnl_Logon);` with `JPanel p = new JPanel(); p.add(pnl_Logon); tabs.addTab("Logon", p);` to let it be layouted with its preferred size. — Marco13, Jul 07 '14 at 20:08

score 2 · Answer 1 · edited May 23 '17 at 12:07

2

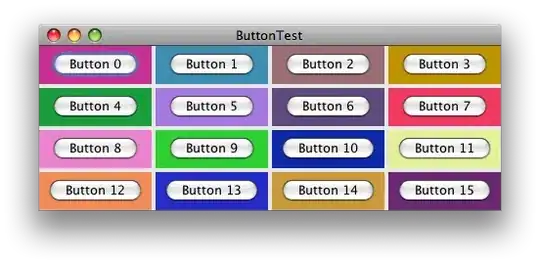

For the reasons mentioned here, don't use setSize() this way. Instead, let each component adopt it's preferred size and pack() the enclosing Window. In this case, add each button to a panel having the default FlowLayout, which respects preferred size, as shown here.

edited May 23 '17 at 12:07

Community

1
1

answered Jul 07 '14 at 21:41

trashgod

203,806
29
246
1,045

score 1 · Accepted Answer · answered Jul 08 '14 at 13:28

The GridLayout manager does not honour the minimum, preferred, and maximum size values of its children. All the cells in GridLayout have the same size. The size of each cell is equal to the size of a cell with the largest component. It is not a very useful manager and it seldom can be used in real-world applications. But what it seems to do is to create confusion.

You mentioned that you would like to avoid the GridBagLayout manager. But there are many other options. This kind of layout can be easily accomplised with more flexible managers.

I provide a simple solution with a MigLayout manager. MigLayout is a grid-based layout manager too and this kind of layout can be easily created in a few lines.

package com.zetcode;

import java.awt.EventQueue;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPasswordField;
import javax.swing.JTextField;
import net.miginfocom.swing.MigLayout;



public class MigLayoutLogin extends JFrame {

    public MigLayoutLogin() {

        initUI();

        setTitle("Log in");
        setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        setLocationRelativeTo(null);
    }

    private void initUI() {

        setLayout(new MigLayout("ins 15"));


        add(new JLabel("User name:"));
        add(new JTextField(10), "pushx, growx, wrap");
        add(new JLabel("Password: "));
        add(new JPasswordField(10), "growx, wrap");

        add(new JButton("Log in"), "span 2, split 2, center, gaptop 15");
        add(new JButton("Log out"));

        pack();
    }


    public static void main(String[] args) {

        EventQueue.invokeLater(new Runnable() {
            @Override
            public void run() {
                MigLayoutLogin ex = new MigLayoutLogin();
                ex.setVisible(true);
            }
        });
    }
}

I do not know how exactly you wanted this layout so I created it my way. The text fields grow horizontally and the two buttons are horizontally aligned to the center.
