How to use Winmerge with Git Extensions?

Question

I'm using Git Extensions and it pre-installs and sets up KDiff as the diff tool to solve merge conflicts. I'm very fond of Winmerge though and would like to replace KDiff with Winmerge.

In the Git Extensions settings, there are settings to change the Mergetool, but I can't seem to figure out what syntax I should use and why. There seem to be 4 variables: $BASE, $LOCAL, $REMOTE, $MERGED. It seems that I should pass these to WinMergeU.exe, but with which command line parameters?

I've tried to search for this a few times, but there is no answer that actually seems to work.

Would http://stackoverflow.com/questions/255202/how-do-i-view-git-diff-output-with-visual-diff-program/949242#949242 or http://stackoverflow.com/questions/1881594/use-winmerge-inside-of-git-to-file-diff/1884517#1884517 help? — VonC, Mar 18 '10 at 08:14
Check out my answer for the easiest, point-and-click solution — Cristian Diaconescu, Mar 20 '15 at 22:55

score 57 · Accepted Answer · edited Dec 15 '16 at 00:19

Overview
The following is instructions on how to setup GIT Version Control so that you can use a better set of tools than the default installation. The setup requires that GIT Extensions is already installed and involves configuring Winmerge in GIT extensions.

Installation
Walk through all the prompts and install in the default directory for Winmerge.

Configure Winmerge in GIT Version Control
Open a new doc in a text editor. Copy/paste the following and save the document as "wMerge.sh" to your "C:\Program Files (x86)\Git\bin\" directory.

echo Launching WinMerge: $1 $2 "C:/Program Files (x86)/WinMerge/WinMergeU.exe" -e -u -dl "Original" -dr "Modified" "$1" "$2"

Goto your "Users->username" directory and locate the .gitconfig file. Open it in your favorite editor copy/paste the following code and Save:

[user]
    name = enter your name
    email = youremail@yourdomain.com
[core]
    autocrlf = false
[merge]
    tool = winmerge
[mergetool "winmerge"]
    cmd = wMerge.sh \"$MERGED\" \"$REMOTE\"
    path = c:/Program Files (x86)/winmerge/winmergeu.exe
[mergetool]
    keepBackup = false
    trustExitCode = false
[diff]
    guitool = winmerge
[difftool "winmerge"]
    path = c:/Program Files (x86)/winmerge/winmergeu.exe
    cmd = \"c:/Program Files (x86)/winmerge/winmergeu.exe\" \"$LOCAL\" \"$REMOTE\"

Run "GitExtensions", goto "tools->Settings->Git Extensions->Git Config". If you've done your installation properly and referenced the tools to their directory, your global settings page should look like below (NOTE: Please fill in your name on name and email):

mergetool: winmerge
path to mergetool: c:/Program Files (x86)/winmerge/winmergeu.exe
mergetool command: wMerge.sh "$MERGED" "$REMOTE"
difftool: winmerge
path to difftool: c:/Program Files (x86)/winmerge/winmergeu.exe
difftool command: "c:/Program Files (x86)/winmerge/winmergeu.exe" "$LOCAL" "$REMOTE"

line endings: checkout as-is, commit as-is

Navigate to the checklist tab to verify that GIT is all "green" and satisfied with your setup.

I placed wMerge.sh in /Git/bin/ but I'm getting this: /mingw64/libexec/git-core/git-mergetool--lib: line 133: wMerge.sh: command not found — Lucas Bustamante, Jan 19 '17 at 19:40
Add -r option to winmerge to enable tree view and flat list view of differering files. Otherwise you are stuck in One Folder At A Time view. `cmd = "'c:/Program Files (x86)/winmerge/winmergeu.exe'" -r "$LOCAL" "$REMOTE"` — ttulinsky, Apr 09 '18 at 21:55
Keep in mind newer versions of WinMerge not in the (x86) folder — CJBS, Sep 11 '19 at 21:25

score 25 · Answer 2 · answered May 30 '14 at 22:11

25

On Git Extensions v2.47.3, it's really easy to set this up:

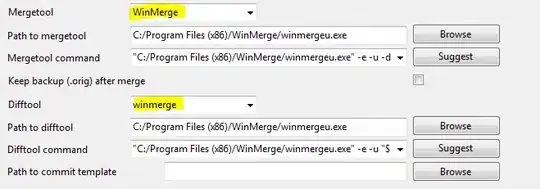

Settings -> Global settings -> in the drop-down for 'Mergetool' write manually: WinMerge and watch the miracle.

Same for 'Difftool' drop-down.

enter image description here

||   ||   ||
\/   \/   \/

enter image description here

It's just silly that the 'WinMerge' option isn't pre-populated in the dropdown. Oh well.

answered May 30 '14 at 22:11

Cristian Diaconescu

34,633
32
143
233

1

It is the easiest solution :) – n.podbielski May 05 '15 at 09:00
2

In Git Extensions 3.0, the path to the setting is: Tools -> Settings -> Git -> Config – kismert Feb 13 '19 at 19:14

score 12 · Answer 3 · answered Mar 20 '13 at 14:10

12

On windows 7, this is what finally worked for me. Note the "'c:/path/here'" quotes around my program files path.

[merge]
    tool = winmerge
[mergetool "winmerge"]
    cmd = "'C:/Program Files (x86)/WinMerge/WinMergeU.exe'" -e "$MERGED"
[diff]
    tool = winmerge
[difftool "winmerge"]
    cmd = "'C:/Program Files (x86)/WinMerge/WinMergeU.exe'" -e "$LOCAL" "$REMOTE" -dl "Local" -dr

answered Mar 20 '13 at 14:10

TimDog

8,758
5
41
50

This solved my issue for Windows 10 an Visual Studio 2015. Thanks! – Tobias Wärre Oct 05 '17 at 11:29

score 9 · Answer 4 · answered Jan 03 '12 at 15:50

@sebastiaan's answer didn't work for me (maybe it is outdated?)

These are "Global settings" that work for me using GitExtensions 2.28:

Mergetool: winmerge
Path to mergetool: D:/path/to/WinMerge/WinMergeU.exe
Mergetool command: "D:/path/to/WinMerge/WinMergeU.exe" -e "$MERGED"
This causes WinMerge to use the "conflict file" generated by git.
-e allows pressing ESC to close winmerge.

Difftool: winmerge
Path to difftool: D:/path/to/WinMerge/WinMergeU.exe
Difftool command: "D:/path/to/WinMerge/WinMergeU.exe" -e "$LOCAL" "$REMOTE" -dl "Local" -dr "Remote"
-dl and -dr set the descriptions for the left and right pane.

This is the right answer...the problem for me was that GitExtensions default settings for WinMerge didn' include " -dl "Local" -dr "Remote"". Thanks! — Nathan Bedford, May 01 '14 at 00:55

score 3 · Answer 5 · answered Feb 14 '13 at 22:56

Add or change the following in the config file:

[merge]
    tool = winmerge
[mergetool "winmerge"]
    cmd = $PROGRAMFILES/WinMerge/WinMergeU.exe "$PWD/$MERGED"

This solution is distinct in two ways:

Simply calls WinMergeU.exe *conflictfile*, while the two-sided calls suffer from the fact that left hand window presents <<<<<<<, =======, and >>>>>>> markers that $MERGED contains.
Apply mergetool on per-repo basis - I am editing the $GIT_DIR/config file . Same result could be achieved by calling git config without --system or --global argument. This is to note that there are a few scopes of configuration to choose from.

The $PROGRAMFILES variable is maintained by git bash and (unlike the similar variable on native windows cmd) it navigates to "Program Files (x86)".

I don't think $PWD is required here. This answer works fine for me without it. — robertpateii, Mar 04 '13 at 21:20
