How to move up the whole layout when keyboard shown?

Question

<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <LinearLayout
        android:layout_gravity="bottom"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />

        <Button
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
        </LinearLayout>

</FrameLayout>

in manifest:

 android:windowSoftInputMode="adjustPan"

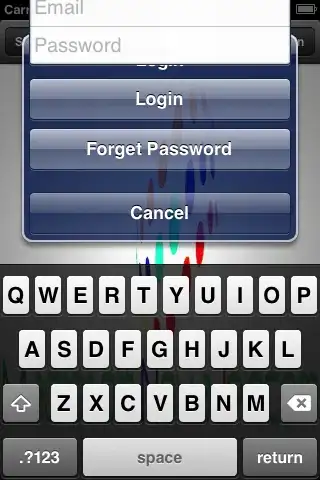

Initial behavior:

enter image description here

Current behavior:

enter image description here

Desired behavior:

enter image description here

How to achive desired behavior of layout? adjustResize unsuitable because this option resizes layout.

Thank you for answers!

I think you should use a scroll view as the main parent layout — Jamil, Dec 27 '14 at 08:15
I'm sorry, but I don't get your intention. Say there were another two buttons above and below the text view;what would your desired behaviour be? If everything moves up, how is that not adjustResize ? — Anudeep Bulla, Dec 27 '14 at 11:46

score 2 · Answer 1 · answered Dec 17 '14 at 15:26

2

The only way to obtain that result is resize layout. Use android:windowSoftInputMode="adjustResize"

answered Dec 17 '14 at 15:26

dledo

44
3

1

adjustResize does not suit me because this option resizes layout – Sinigami Dec 18 '14 at 11:23

score 2 · Answer 2 · edited May 23 '17 at 12:02

2

You probably want to take a look at this answer. A suggestion from it:

Set Window SoftInput Mode property to adjustPan and adjustResize

<activity android:windowSoftInputMode="adjustPan|adjustResize"> </activity>

edited May 23 '17 at 12:02

Community

1
1

answered Dec 17 '14 at 15:28

Andrew Orobator

7,978
3
36
36

score 2 · Answer 3 · answered Dec 24 '14 at 11:58

2

try this one in your manifest:

android:windowSoftInputMode="adjustResize|stateUnchanged"

answered Dec 24 '14 at 11:58

Rathan Kumar

2,567
2
17
24

score 1 · Answer 4 · answered Dec 17 '14 at 15:09

1

the check if the layout that contain EditText and Button is RelativeLayout.

answered Dec 17 '14 at 15:09

Liran Peretz

580
8
11

try to replace LinearLayout to RelativeLayout – Liran Peretz Dec 17 '14 at 15:17
Try to replace the frame layout to relative layout – Liran Peretz Dec 20 '14 at 19:27

score 1 · Answer 5 · answered Dec 27 '14 at 11:48

Try to change FrameLayout to RelativeLayout with alignParentBottom="true" property in your LinearLayout:

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:orientation="vertical"
    android:layout_height="match_parent">

    <LinearLayout
        android:layout_alignParentBottom="true"
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <EditText
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />

        <Button
            android:layout_width="match_parent"
            android:layout_height="wrap_content" />
        </LinearLayout>

</RelativeLayout>

gio · Answer 6 · 2014-12-27T14:11:51.170

You won't be able to implement that with adjustPan, because from the official guide

The activity's main window is not resized to make room for the soft keyboard. Rather, the contents of the window are automatically panned so that the current focus is never obscured by the keyboard and users can always see what they are typing. This is generally less desirable than resizing, because the user may need to close the soft keyboard to get at and interact with obscured parts of the window.

Your Button is below your current focus EditText

score 1 · Answer 7 · answered Nov 17 '16 at 11:11

by removing below line from activity and android:windowSoftInputMode from manifest, I got whole layout scrolling which was previously hiding by

this.getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN, WindowManager.LayoutParams.FLAG_FULLSCREEN);

please check this output video link: https://mega.nz/#!TpRCWZjY!TqDzv0Yn3Q24PR1JAdH8kRVeDf2iSa1LQbNBgF0SVHk

score 1 · Answer 8 · edited May 23 '17 at 12:25

1

I don't believe there is a simple way to do this. At least not as simple as setting a flag. I had a similar situation of wanting the keyboard to rise to the level of Views well below the selected EditText. I ended up using this answer: How to check visibility of software keyboard in Android?

and manually adjusting my View sizes when the keyboard becomes visible.

edited May 23 '17 at 12:25

Community

1
1

answered Mar 24 '17 at 17:01

Graydyn Young

5,041
1
17
19

score 0 · Answer 9 · answered Oct 30 '17 at 12:10

0

Just use this property in activity

android:windowSoftInputMode="adjustPan"

answered Oct 30 '17 at 12:10

Harv

446
5
12
