Uploading images with Mongoose, Express and AngularJS

Question

I know this has been asked many times before, and I have read almost all I could find about the subject, namely:

https://stackoverflow.com/a/25022437/1031184

Uploading images using Node.js, Express, and Mongoose

Those are the best I have found so far. My problem is tho that they still aren't very clear, there is very little documentation online at all about this and the discussion seems aimed at people who are much more advanced than I am.

So with that I would really love it if someone could please walk me though how to upload images using Mongoose, Express & AngularJS. I am actually using the MEAN fullstack. (this generator to be precise – https://github.com/DaftMonk/generator-angular-fullstack)

AddController:

'use strict';

angular.module('lumicaApp')
  .controller('ProjectAddCtrl', ['$scope', '$location', '$log', 'projectsModel', 'users', 'types', function ($scope, $location, $log, projectsModel, users, types) {
    $scope.dismiss = function () {
      $scope.$dismiss();
    };

        $scope.users = users;
        $scope.types = types;

    $scope.project = {
            name: null,
            type: null,
            images: {
                thumbnail: null // I want to add the uploaded images _id here to reference with mongoose populate.
            },
            users: null
        };

        $scope.save = function () {
            $log.info($scope.project);
            projectsModel.post($scope.project).then(function (project) {
        $scope.$dismiss();
            });
        }

  }]);

I want to add the Images ID reference to project.images.thumbnail but I want to store all the information inside an Image Object using the following Schema:

'use strict';

    var mongoose = require('mongoose'),
        Schema = mongoose.Schema;

    var ImageSchema = new Schema({
      fileName: String,
      url: String,
      contentType: String,
      size: String,
      dimensions: String
    });

    module.exports = mongoose.model('Image', ImageSchema);

I have also added the following https://github.com/nervgh/angular-file-upload to my bower packages.

As I say I just can't figure out how to tie it all together. And I'm not even sure if what I am trying to do is the correct way either.

--------------------------------------------------------------------------\

UPDATE:

Here is what I now have, I have added some comments detailing how I would like it to work, unfortunately I still haven't managed to get this working, I can't even get the image to start uploading, never mind uploading to S3. Sorry to be a pain but I am just finding this particularly confusing, which surprises me.

client/app/people/add/add.controller.js

'use strict';

angular.module('lumicaApp')
    .controller('AddPersonCtrl', ['$scope', '$http', '$location', '$window', '$log', 'Auth', 'FileUploader', 'projects', 'usersModel', function ($scope, $http, $location, $window, $log, Auth, FileUploader, projects, usersModel) {
        $scope.dismiss = function () {
            $scope.$dismiss();
        };

        $scope.newResource = {};

        // Upload Profile Image
        $scope.onUploadSelect = function($files) {
            $scope.newResource.newUploadName = $files[0].name;

            $http
                .post('/api/uploads', {
                    uploadName: newResource.newUploadName,
                    upload: newResource.newUpload
                })
                .success(function(data) {
                    newResource.upload = data; // To be saved later
                });
        };

        $log.info($scope.newResource);

        //Get Projects List
        $scope.projects = projects;

        //Register New User
        $scope.user = {};
        $scope.errors = {};


        $scope.register = function(form) {
            $scope.submitted = true;

            if(form.$valid) {
                Auth.createUser({
                    firstName: $scope.user.firstName,
                    lastName: $scope.user.lastName,
                    username: $scope.user.username,
                    profileImage: $scope.user.profileImage, // I want to add the _id reference for the image here to I can populate it with 'ImageSchema' using mongoose to get the image details(Name, URL, FileSize, ContentType, ETC)
                    assigned: {
                        teams: null,
                        projects: $scope.user.assigned.projects
                    },
                    email: $scope.user.email,
                    password: $scope.user.password
                })
                    .then( function() {
                        // Account created, redirect to home
                        //$location.path('/');
                        $scope.$dismiss();
                    })
                    .catch( function(err) {
                        err = err.data;
                        $scope.errors = {};

                        // Update validity of form fields that match the mongoose errors
                        angular.forEach(err.errors, function(error, field) {
                            form[field].$setValidity('mongoose', false);
                            $scope.errors[field] = error.message;
                        });
                    });
            }
        };

        $scope.loginOauth = function(provider) {
            $window.location.href = '/auth/' + provider;
        };

    }]);

server/api/image/image.model.js I would like to store all image information here and use this to populate profileImage in people controller.

'use strict';

    var mongoose = require('mongoose'),
        Schema = mongoose.Schema;

    var ImageSchema = new Schema({
      fileName: String,
      url: String, // Should store the URL of image on S3.
      contentType: String,
      size: String,
      dimensions: String
    });

    module.exports = mongoose.model('Image', ImageSchema);

client/app/people/add/add.jade

.modal-header
    h3.modal-title Add {{ title }}
.modal-body
    form(id="add-user" name='form', ng-submit='register(form)', novalidate='')
        .form-group(ng-class='{ "has-success": form.firstName.$valid && submitted,\
        "has-error": form.firstName.$invalid && submitted }')
            label First Name
            input.form-control(type='text', name='firstName', ng-model='user.firstName', required='')
            p.help-block(ng-show='form.firstName.$error.required && submitted')
                | First name is required

        .form-group(ng-class='{ "has-success": form.lastName.$valid && submitted,\
        "has-error": form.lastName.$invalid && submitted }')
            label Last Name
            input.form-control(type='text', name='lastName', ng-model='user.lastName', required='')
            p.help-block(ng-show='form.lastName.$error.required && submitted')
                | Last name is required

        .form-group(ng-class='{ "has-success": form.username.$valid && submitted,\
        "has-error": form.username.$invalid && submitted }')
            label Username
            input.form-control(type='text', name='username', ng-model='user.username', required='')
            p.help-block(ng-show='form.username.$error.required && submitted')
                | Last name is required

        // Upload Profile Picture Here
        .form-group
            label Profile Image
            input(type="file" ng-file-select="onUploadSelect($files)" ng-model="newResource.newUpload")

        .form-group(ng-class='{ "has-success": form.email.$valid && submitted,\
        "has-error": form.email.$invalid && submitted }')
            label Email
            input.form-control(type='email', name='email', ng-model='user.email', required='', mongoose-error='')
            p.help-block(ng-show='form.email.$error.email && submitted')
                | Doesn't look like a valid email.
            p.help-block(ng-show='form.email.$error.required && submitted')
                | What's your email address?
            p.help-block(ng-show='form.email.$error.mongoose')
                | {{ errors.email }}

        .form-group(ng-class='{ "has-success": form.password.$valid && submitted,\
        "has-error": form.password.$invalid && submitted }')
            label Password
            input.form-control(type='password', name='password', ng-model='user.password', ng-minlength='3', required='', mongoose-error='')
            p.help-block(ng-show='(form.password.$error.minlength || form.password.$error.required) && submitted')
                | Password must be at least 3 characters.
            p.help-block(ng-show='form.password.$error.mongoose')
                | {{ errors.password }}

        .form-group
            label Assign Project(s)
            br
            select(multiple ng-options="project._id as project.name for project in projects" ng-model="user.assigned.projects")
        button.btn.btn-primary(ng-submit='register(form)') Save

    pre(ng-bind="user | json")
.modal-footer
    button.btn.btn-primary(type="submit" form="add-user") Save
    button.btn.btn-warning(ng-click='dismiss()') Cancel

server/api/upload/index.js

'use strict';

var express = require('express');
var controller = require('./upload.controller');

var router = express.Router();

//router.get('/', controller.index);
//router.get('/:id', controller.show);
router.post('/', controller.create);
//router.put('/:id', controller.update);
//router.patch('/:id', controller.update);
//router.delete('/:id', controller.destroy);

module.exports = router;

server/api/upload/upload.controller.js

'use strict';

var _ = require('lodash');
//var Upload = require('./upload.model');
var aws = require('aws-sdk');
var config = require('../../config/environment');
var randomString = require('../../components/randomString');

// Creates a new upload in the DB.
exports.create = function(req, res) {
    var s3 = new aws.S3();
    var folder = randomString.generate(20); // I guess I do this because when the user downloads the file it will have the original file name.
    var matches = req.body.upload.match(/data:([A-Za-z-+\/].+);base64,(.+)/);

    if (matches === null || matches.length !== 3) {
        return handleError(res, 'Invalid input string');
    }

    var uploadBody = new Buffer(matches[2], 'base64');

    var params = {
        Bucket: config.aws.bucketName,
        Key: folder + '/' + req.body.uploadName,
        Body: uploadBody,
        ACL:'public-read'
    };

    s3.putObject(params, function(err, data) {
        if (err)
            console.log(err)
        else {
            console.log("Successfully uploaded data to my-uploads/" + folder + '/' + req.body.uploadName);
            return res.json({
                name: req.body.uploadName,
                bucket: config.aws.bucketName,
                key: folder
            });
        }
    });
};

function handleError(res, err) {
    return res.send(500, err);
}

server/config/environment/development.js

aws: {
        key: 'XXXXXXXXXXXX',
        secret: 'XXXXXXXXXXXXXXXXXXXXXXXXXXXXXX',
        region: 'sydney',
        bucketName: 'my-uploads'
    }

Answer 1

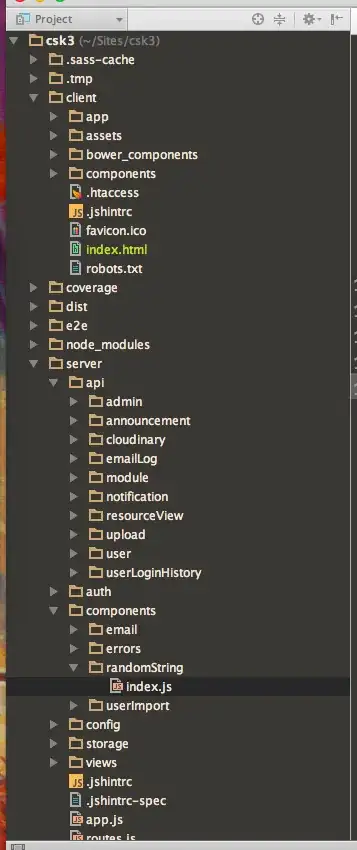

All of this code is straight out of a project that depends heavily on this for large file uploads and images. Definitely checkout https://github.com/nervgh/angular-file-upload

In my view somewhere:

<div class="form-group">
  <label>File Upload</label>
  <input type="file" ng-file-select="onUploadSelect($files)" ng-model="newResource.newUpload">
</div>

Using the module angularFileUpload I then have in my controller:

$scope.onUploadSelect = function($files) {
  $scope.newResource.newUploadName = $files[0].name;
};

https://github.com/nervgh/angular-file-upload

When the user clicks upload this gets executed where I send the file to be uploaded:

$http
  .post('/api/uploads', {
    uploadName: newResource.newUploadName,
    upload: newResource.newUpload
  })
  .success(function(data) {
    newResource.upload = data; // To be saved later
  });

This request is sent to a controller that looks something like this:

'use strict';

var _ = require('lodash');
var aws = require('aws-sdk');
var config = require('../../config/environment');
var randomString = require('../../components/randomString');

// Creates a new upload in the DB.
exports.create = function(req, res) {
  var s3 = new aws.S3();
  var folder = randomString.generate(20); // I guess I do this because when the user downloads the file it will have the original file name.
  var matches = req.body.upload.match(/data:([A-Za-z-+\/].+);base64,(.+)/);

  if (matches === null || matches.length !== 3) {
    return handleError(res, 'Invalid input string');
  }

  var uploadBody = new Buffer(matches[2], 'base64');

  var params = {
    Bucket: config.aws.bucketName,
    Key: folder + '/' + req.body.uploadName,
    Body: uploadBody,
    ACL:'public-read'
  };

  s3.putObject(params, function(err, data) {
    if (err)
      console.log(err)
    else {
      console.log("Successfully uploaded data to csk3-uploads/" + folder + '/' + req.body.uploadName);
      return res.json({
        name: req.body.uploadName,
        bucket: config.aws.bucketName,
        key: folder
      });
    }
   });
};

function handleError(res, err) {
  return res.send(500, err);
}

server/components/randomString/index.js

'use strict';

module.exports.generate = function(textLength) {
  textLength = textLength || 10;
  var text = '';
  var possible = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789';

  for(var i = 0; i < textLength; i++) {
    text += possible.charAt(Math.floor(Math.random() * possible.length));
  }

  return text;
};

server/config/environment/development.js

server/api/upload/upload.controller.js

Answer 2

This is the way i used MEAN.JS for file upload.

Model

var UserSchema = new mongoose.Schema({
name:{type:String,required:true},
photo:Buffer  // Image
});

Server Controller

var userPicture = function(req,res){             // Stores Picture for a user matching the ID.
user.findById(req.param('id'), function (err, user) {
    console.log(req.files) // File from Client
    if(req.files.file){   // If the Image exists
        var fs = require('node-fs');
        fs.readFile(req.files.file.path, function (dataErr, data) {
            if(data) {
                user.photo ='';
                user.photo = data;  // Assigns the image to the path.
                user.save(function (saveerr, saveuser) {
                    if (saveerr) {
                        throw saveerr;
                    }
                    res.json(HttpStatus.OK, saveuser);
                });
            }
        });
        return
    }
    res.json(HttpStatus.BAD_REQUEST,{error:"Error in file upload"});
});
};

Client Controller

$scope.saveuserImage =  function(){
    $scope.upload = $upload.upload({  // Using $upload
        url: '/user/'+$stateParams.id+'/userImage',  // Direct Server Call.
        method:'put',
        data:'',  // Where the image is going to be set.
        file: $scope.file
    }).progress(function (evt) {})
        .success(function () {
            var logo = new FileReader();  // FileReader.

            $scope.onAttachmentSelect = function(file){
                logo.onload = function (e) {
                    $scope.image = e.target.result;  // Assigns the image on the $scope variable.
                    $scope.logoName = file[0].name; // Assigns the file name.
                    $scope.$apply();
                };
                logo.readAsDataURL(file[0]);
                $scope.file = file[0];
                $scope.getFileData = file[0].name
            };
            location.reload();
            $scope.file = "";
            $scope.hideUpload = 'true'
        });
    $scope.getFileData = '';
 //        location.reload()
};

Html

The ng-file-select is used to get the file from the client.

This works fine for me. Hope this helps.

Note: I have used HTML tag instead of jade. Suitable changes applicable while using jade.

Answer 3

As far as I can guess, you are binding the FileReader.onload() method inside the saveUserImage function, then the onload method will be never called as the function is never binded instead a user calls saveUserImage method before editing the image. After that, no image will be selected as the onload() method will not execute.

Try coding Client Controller it this way

//This goes outside your method and will handle the file selection.This must be executed when your `input(type=file)` is created. Then we will use ng-init to bind it.

  $scope.onAttachmentSelect = function(){
        var logo = new FileReader();  // FileReader.
        logo.onload = function (event) {
        console.log("THE IMAGE HAS LOADED");
        var file = event.currentTarget.files[0]
        console.log("FILENAME:"+file.name);
        $scope.image = file;
        $scope.logoName = file.name; // Assigns the file name.
           $scope.$apply();
           //Call save from here
           $scope.saveuserImage();
        };
        logo.readAsDataURL(file[0]);
        $scope.file = file[0];
       $scope.getFileData = file[0].name
            reader.readAsDataURL(file);
    };


//The save method is called from the onload function (when you add a new file)
$scope.saveuserImage =  function(){
    console.log("STARGING UPLOAD");
    $scope.upload = $upload.upload({  // Using $upload
        url: '/user/'+$stateParams.id+'/userImage',
        method:'put'
        data:,   $scope.image
        file: $scope.file
    }).progress(function (evt) {})
        .success(function () {
            location.reload();
            $scope.file = "";
            $scope.hideUpload = 'true'
        });
    $scope.getFileData = '';
 //        location.reload()
};

The HTML.

//There is the ng-init call to binding function onAttachmentSelect
<div class="form-group">
  <label>File Upload</label>
  <input type="file" ng-init="onAttachmentSelect" ng-model="newResource.newUpload">
</div>

Hope this clue may help you

EDIT*

Will try to explain you the different Steps you must follow to check your code:

1.- Is your input[type=file] showing? If showing, please select an image

2.- Is your input calling the onload when the image selected has changed? (a console.log should be printed with my code version)

3.- If it has been called. Make the operations you need before sending, inside the onload method (if possible)

4.- When this method has finished doing desired changes. Inform with ng-model or however you want, a variable in the object you prepared to upload, with the base64 string generated in the onload method.

When arriving this point, remember checking that:

As very big images could be sent over json with base64, it´s very important to remember changing the minimum json size in Express.js for your app to prevent rejects. This is done, for example in your server/app.js as this:

var bodyParser = require('body-parser');
app.use(bodyParser.json({limit: '50mb'}));
app.use(bodyParser.urlencoded({limit: '50mb'}));

Remember also that the method reader.readAsDataURL(file) will give you a base64 string that could act as src of the image. You don´t need more than this. This base64 is what you can save in mongoose. Then, you can use ng-model to send a variable containing the base64 in the form with the "submit" button.

Then, in the Express.js endpoint that will handle your form, you will be able to decode the base64 string to a file, or to save the base64 directly on mongoose (storing images in the db is not much recommended if a lot of images is being to be loaded, or big ones desired, as the mongoDB query will be very slow).

Hope you can solve with those indications. If you still have some doubts, please comment and I´ll try to help

Answer 4

I'm also a noob using MEANJS, and this is how I made it work using ng-flow + FileReader:

HTML input:

<div flow-init
        flow-files-added="processFiles($files)"
        flow-files-submitted="$flow.upload()"
        test-chunks="false">
        <!-- flow-file-error="someHandlerMethod( $file, $message, $flow )"     ! need to implement-->
        <div class="drop" flow-drop ng-class="dropClass">
            <span class="btn btn-default" flow-btn>Upload File</span>
            <span class="btn btn-default" flow-btn flow-directory ng-show="$flow.supportDirectory">Upload Folder</span>
            <b>OR</b>
            Drag And Drop your file here
        </div>

controller:

    $scope.uploadedImage = 0;

    // PREPARE FILE FOR UPLOAD
    $scope.processFiles = function(flow){
        var reader = new FileReader();
        reader.onload = function(event) {
            $scope.uploadedImage = event.target.result;
        };
        reader.onerror = function(event) {
            console.error('File could not be read! Code ' + event.target.error.code);
        };
        reader.readAsDataURL(flow[0].file);
    };

And on the server side the variable on the model receiving the value of uploadedImage is just of type string.

Fetching it back from the server didn't require any conversion:

<img src={{result.picture}} class="pic-image" alt="Pic"/>

Now just need to find out what to do with big files...
