What's the difference between select_related and prefetch_related in Django ORM?

Question

In Django doc:

select_related() "follows" foreign-key relationships, selecting additional related-object data when it executes its query.

prefetch_related() does a separate lookup for each relationship, and does the "joining" in Python.

What does it mean by "doing the joining in python"? Can someone illustrate with an example?

My understanding is that for foreign key relationship, use select_related; and for M2M relationship, use prefetch_related. Is this correct?

Answer 1

Your understanding is mostly correct:

• select_related: when the object that you're going to be selecting is a single object, so OneToOneField or a ForeignKey

• prefetch_related: when you're going to get a "set" of things, so ManyToManyFields as you stated or reverse ForeignKeys.

Just to clarify what I mean by reverse ForeignKeys, here's an example:

class ModelA(models.Model):
    pass

class ModelB(models.Model):
    a = ForeignKey(ModelA)

# Forward ForeignKey relationship
ModelB.objects.select_related('a').all()

# Reverse ForeignKey relationship
ModelA.objects.prefetch_related('modelb_set').all()

The difference is that:

• select_related does an SQL join and therefore gets the results back as part of the table from the SQL server
• prefetch_related on the other hand executes another query and therefore reduces the redundant columns in the original object (ModelA in the above example)

You may use prefetch_related for anything that you can use select_related for.

The tradeoffs are that prefetch_related has to create and send a list of IDs to select back to the server, this can take a while. I'm not sure if there's a nice way of doing this in a transaction, but my understanding is that Django always just sends a list and says SELECT ... WHERE pk IN (...,...,...) basically. In this case if the prefetched data is sparse (let's say U.S. State objects linked to people's addresses) this can be very good, however if it's closer to one-to-one, this can waste a lot of communications. If in doubt, try both and see which performs better.

Everything discussed above is basically about the communications with the database. On the Python side however prefetch_related has the extra benefit that a single object is used to represent each object in the database. With select_related duplicate objects will be created in Python for each "parent" object. Since objects in Python have a decent bit of memory overhead this can also be a consideration.

Answer 2

Gone through the already posted answers. Just thought it would be better if I add an answer with actual example.

Let' say you have 3 Django models which are related.

class M1(models.Model):
    name = models.CharField(max_length=10)

class M2(models.Model):
    name = models.CharField(max_length=10)
    select_relation = models.ForeignKey(M1, on_delete=models.CASCADE)
    prefetch_relation = models.ManyToManyField(to='M3')

class M3(models.Model):
    name = models.CharField(max_length=10)

Here you can query M2 model and its relative M1 objects using select_relation field and M3 objects using prefetch_relation field.

However as we've mentioned M1's relation from M2 is a ForeignKey, it just returns only 1 record for any M2 object. Same thing applies for OneToOneField as well.

But M3's relation from M2 is a ManyToManyField which might return any number of M1 objects.

Consider a case where you have 2 M2 objects m21, m22 who have same 5 associated M3 objects with IDs 1,2,3,4,5. When you fetch associated M3 objects for each of those M2 objects, if you use select related, this is how it's going to work.

Steps:

1. Find m21 object.
2. Query all the M3 objects related to m21 object whose IDs are 1,2,3,4,5.
3. Repeat same thing for m22 object and all other M2 objects.

As we have same 1,2,3,4,5 IDs for both m21, m22 objects, if we use select_related option, it's going to query the DB twice for the same IDs which were already fetched.

Instead if you use prefetch_related, when you try to get M2 objects, it will make a note of all the IDs that your objects returned (Note: only the IDs) while querying M2 table and as last step, Django is going to make a query to M3 table with the set of all IDs that your M2 objects have returned. and join them to M2 objects using Python instead of database.

This way you're querying all the M3 objects only once which improves performance as python joins are cheaper than database joins.

Answer 3

Both methods achieve the same purpose, to forego unnecessary db queries. But they use different approaches for efficiency.

The only reason to use either of these methods is when a single large query is preferable to many small queries. Django uses the large query to create models in memory preemptively rather than performing on demand queries against the database.

select_related performs a join with each lookup, but extends the select to include the columns of all joined tables. However this approach has a caveat.

Joins have the potential to multiply the number of rows in a query. When you perform a join over a foreign key or one-to-one field, the number of rows won't increase. However, many-to-many joins do not have this guarantee. So, Django restricts select_related to relations that won't unexpectedly result in a massive join.

The "join in python" for prefetch_related is a little more alarming than it should be. It creates a separate query for each table to be joined. It filters each of these table with a WHERE IN clause, like:

SELECT "credential"."id",
       "credential"."uuid",
       "credential"."identity_id"
FROM   "credential"
WHERE  "credential"."identity_id" IN
    (84706, 48746, 871441, 84713, 76492, 84621, 51472);

Rather than performing a single join with potentially too many rows, each table is split into a separate query.

Answer 4

select_related():

• can reduce multiple SELECT queries to only 1 SELECT query with Forward Foreign Key and Reverse Foreign Key in one-to-one relationship and with Forward Foreign Key in one-to-many and many-to-many relationships.

• cannot be used with Reverse Foreign Key in one-to-many and many-to-many relationships.

prefetch_related():

• can reduce multiple SELECT queries to 2 SELECT queries as a minimum with Forward Foreign Key and Reverse Foreign Key in one-to-one, one-to-many and many-to-many relationships.

*You can see my answer explaining the meaning of Forward Foreign Key and Reverse Foreign Key.

The following shows my experiments of select_related() and prefetch_related() with Forward Foreign Key and Reverse Foreign Key in one-to-one, one-to-many and many-to-many relationships.

<One-to-one relationship>

For example, there are Person and PersonDetail models which have one-to-one relationship as shown below:

# "app/models.py

from django.db import models

class Person(models.Model):
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

class PersonDetail(models.Model):
    person = models.OneToOneField(Person, on_delete=models.CASCADE)
    age = models.IntegerField()
    gender = models.CharField(max_length=20)

    def __str__(self):
        return str(self.age) + " " + self.gender

And, there are Person and PersonDetail admins as shown below:

# "app/admin.py

from django.contrib import admin
from .models import Person, PersonDetail

class PersonDetailInline(admin.TabularInline):
    model = PersonDetail

@admin.register(Person)
class PersonAdmin(admin.ModelAdmin):
    inlines = (PersonDetailInline,)
    list_display = ('id', 'name')
    ordering = ('id',)

@admin.register(PersonDetail)
class PersonDetailAdmin(admin.ModelAdmin):
    list_display = ('id', 'age', 'gender', 'person')
    ordering = ('id',)

Then, Person admin has 5 objects as shown below:

And, PersonDetail admin has 5 objects as shown below:

<Forward Foreign Key>

Then, I iterate Person model from PersonDetail model as shown below:

for obj in PersonDetail.objects.all():
    print(obj.person)

Then, these below are outputted on console:

John
David
Lisa
Kai
Anna

Then, 6 SELECT queries are run as shown below. *I use PostgreSQL and these below are the query logs of PostgreSQL and you can see my answer explaining how to enable and disable the query logs on PostgreSQL:

Next, I iterate Person model from PersonDetail model with select_related("person") as shown below. *The order of select_related() and all() don't matter:

for obj in PersonDetail.objects.select_related("person").all():
    print(obj.person)

Then, these below are outputted on console:

John
David
Lisa
Kai
Anna

Then, 1 SELECT query is run as shown below:

Next, I iterate Person model from PersonDetail model with prefetch_related("person") as shown below. *The order of prefetch_related() and all() don't matter:

for obj in PersonDetail.objects.prefetch_related("person").all():
    print(obj.person)

Then, these below are outputted on console:

John
David
Lisa
Kai
Anna

Then, 2 SELECT queries are run as shown below:

<Reverse Foreign Key>

Next, I iterate PersonDetail model from Person model as shown below:

for obj in Person.objects.all():
    print(obj.persondetail)

Then, these below are outputted on console:

32 Male
18 Male
26 Female
36 Male
21 Female

Then, 6 SELECT queries are run as shown below:

Next, I iterate PersonDetail model from Person model with select_related("persondetail") as shown below:

for obj in Person.objects.select_related("persondetail").all():
    print(obj.persondetail)

Then, these below are outputted on console:

32 Male
18 Male
26 Female
36 Male
21 Female

Then, 1 SELECT query is run as shown below:

Next, I iterate PersonDetail model from Person model with prefetch_related("persondetail") as shown below:

for obj in Person.objects.prefetch_related("persondetail").all():
    print(obj.persondetail)

Then, these below are outputted on console:

32 Male
18 Male
26 Female
36 Male
21 Female

Then, 2 SELECT queries are run as shown below:

<One-to-many relationship>

For example, there are Category and Product models which have one-to-many relationship as shown below:

# "app/models.py"

from django.db import models

class Category(models.Model):
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

class Product(models.Model):
    category = models.ForeignKey(Category, on_delete=models.CASCADE)
    name = models.CharField(max_length=50)
    price = models.DecimalField(decimal_places=2, max_digits=5)

    def __str__(self):
        return str(self.category) + " " + self.name + " " + str(self.price)

And, there are Category and Product admins as shown below:

# "app/admin.py"

from django.contrib import admin
from .models import Category, Product

@admin.register(Category)
class CategoryAdmin(admin.ModelAdmin):
    list_display = ('id', 'name')
    ordering = ('id',)

@admin.register(Product)
class ProductAdmin(admin.ModelAdmin):
    list_display = ('id', 'name', 'price', 'category')
    ordering = ('id',)

Then, Category admin has 4 objects as shown below:

And, Product admin has 6 objects as shown below:

<Forward Foreign Key>

Then, I iterate Category model from Product model as shown below:

for obj in Product.objects.all():
    print(obj.category)

Then, these below are outputted on console:

Fruits
Fruits
Vegetable
Meat
Meat
Fish

Then, 7 SELECT queries are run as shown below:

Next, I iterate Category model from Product model with select_related("category") as shown below:

for obj in Product.objects.select_related("category").all():
    print(obj.category)

Then, these below are outputted on console:

Fruits
Fruits
Vegetable
Meat
Meat
Fish

Then, 1 SELECT query is run as shown below:

Next, I iterate Category model from Product model with prefetch_related("category") as shown below:

for obj in Product.objects.prefetch_related("category").all():
    print(obj.category)

Then, these below are outputted on console:

Fruits
Fruits
Vegetable
Meat
Meat
Fish

Then, 2 SELECT queries are run as shown below:

<Reverse Foreign Key>

Next, I iterate Product model from Category model as shown below:

for obj in Category.objects.all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Fruits Apple 10.00>, <Product: Fruits Orange 20.00>]>
<QuerySet [<Product: Vegetable Carrot 30.00>]>
<QuerySet [<Product: Meat Chicken 40.00>, <Product: Meat Beef 50.00>]>
<QuerySet [<Product: Fish Salmon 60.00>]>

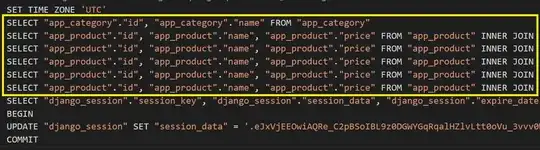

Then, 5 SELECT queries are run as shown below:

Next, I tries to iterate Product model from Category model with select_related("product_set") as shown below:

for obj in Category.objects.select_related("product_set").all():
    print(obj.product_set.all())

Then, the error below occurs because select_related("product_set") cannot be used with Reverse Foreign Key:

django.core.exceptions.FieldError: Invalid field name(s) given in select_related: 'product_set'. Choices are: (none)

Actually, there is no error if I use select_related() with no argument as shown below:

                                        # ↓ No argument
for obj in Category.objects.select_related().all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Fruits Apple 10.00>, <Product: Fruits Orange 20.00>]>
<QuerySet [<Product: Vegetable Carrot 30.00>]>
<QuerySet [<Product: Meat Chicken 40.00>, <Product: Meat Beef 50.00>]>
<QuerySet [<Product: Fish Salmon 60.00>]>

But, 5 SELECT queries are still run instead of 1 SELECT query as shown below:

Next, I iterate Product model from Category model with prefetch_related("product_set") as shown below:

for obj in Category.objects.prefetch_related("product_set").all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Fruits Apple 10.00>, <Product: Fruits Orange 20.00>]>
<QuerySet [<Product: Vegetable Carrot 30.00>]>
<QuerySet [<Product: Meat Chicken 40.00>, <Product: Meat Beef 50.00>]>
<QuerySet [<Product: Fish Salmon 60.00>]>

Then, 2 SELECT queries are run as shown below:

<Many-to-many relationship>

For example, Category and Product models have many-to-many relationship as shown below:

# "app/models.py"

from django.db import models

class Category(models.Model):
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

class Product(models.Model):
    categories = models.ManyToManyField(Category)
    name = models.CharField(max_length=50)
    price = models.DecimalField(decimal_places=2, max_digits=5)

    def __str__(self):
        return self.name + " " + str(self.price)

And, there are Category and Product admins as shown below:

# "app/admin.py

from django.contrib import admin
from .models import Category, Product

@admin.register(Category)
class CategoryAdmin(admin.ModelAdmin):
    list_display = ('id', 'name', 'get_products')
    ordering = ('id',)

    @admin.display(description='products')
    def get_products(self, obj):
        return [product.name for product in obj.product_set.all()]

@admin.register(Product)
class ProductAdmin(admin.ModelAdmin):
    list_display = ('id', 'name', 'price', 'get_categories')
    ordering = ('id',)

    @admin.display(description='categories')
    def get_categories(self, obj):
        return [category.name for category in obj.categories.all()]

Then, Category admin has 5 objects as shown below:

And, Product admin has 6 objects as shown below:

<Forward Foreign Key>

Then, I iterate Category model from Product model as shown below:

for obj in Product.objects.all():
    print(obj.categories.all())

Then, these below are outputted on console:

<QuerySet [<Category: Fruits>, <Category: 20% OFF>]>
<QuerySet [<Category: Fruits>]>
<QuerySet [<Category: Vegetable>]>
<QuerySet [<Category: Meat>, <Category: 20% OFF>]>
<QuerySet [<Category: Meat>]>
<QuerySet [<Category: Fish>, <Category: 20% OFF>]>

Then, 7 SELECT queries are run as shown below:

Next, I iterate Category model from Product model with select_related("categories") as shown below:

for obj in Product.objects.select_related("categories").all():
    print(obj.categories.all())

Then, the error below occurs because select_related("categories") cannot be used with Reverse Foreign Key:

django.core.exceptions.FieldError: Invalid field name(s) given in select_related: 'categories'. Choices are: (none)

Actually, there is no error if I use select_related() with no argument as shown below:

                                       # ↓ No argument
for obj in Product.objects.select_related().all():
    print(obj.categories.all())

Then, these below are outputted on console:

<QuerySet [<Category: Fruits>, <Category: 20% OFF>]>
<QuerySet [<Category: Fruits>]>
<QuerySet [<Category: Vegetable>]>
<QuerySet [<Category: Meat>, <Category: 20% OFF>]>
<QuerySet [<Category: Meat>]>
<QuerySet [<Category: Fish>, <Category: 20% OFF>]>

But, 7 SELECT queries are still run instead of 1 SELECT query as shown below:

Next, I iterate Category model from Product model with prefetch_related("categories") as shown below:

for obj in Product.objects.prefetch_related("categories").all():
    print(obj.categories.all())

Then, these below are outputted on console:

<QuerySet [<Category: Fruits>, <Category: 20% OFF>]>
<QuerySet [<Category: Fruits>]>
<QuerySet [<Category: Vegetable>]>
<QuerySet [<Category: Meat>, <Category: 20% OFF>]>
<QuerySet [<Category: Meat>]>
<QuerySet [<Category: Fish>, <Category: 20% OFF>]>

Then, 2 SELECT queries are run as shown below:

<Reverse Foreign Key>

Next, I iterate Product model from Category model as shown below:

for obj in Category.objects.all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Apple 10.00>, <Product: Orange 20.00>]>
<QuerySet [<Product: Carrot 30.00>]>
<QuerySet [<Product: Chicken 40.00>, <Product: Beef 50.00>]>
<QuerySet [<Product: Salmon 60.00>]>
<QuerySet [<Product: Apple 10.00>, <Product: Chicken 40.00>, <Product: Salmon 60.00>]>

Then, 6 SELECT queries are run as shown below:

Next, I iterate Product model from Category model with select_related("product_set") as shown below:

for obj in Category.objects.select_related("product_set").all():
    print(obj.product_set.all())

Then, the error below occurs because select_related("categories") cannot be used with Reverse Foreign Key:

django.core.exceptions.FieldError: Invalid field name(s) given in select_related: 'product_set'. Choices are: (none)

Actually, there is no error if I use select_related() with no argument as shown below:

                                        # ↓ No argument
for obj in Category.objects.select_related().all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Apple 10.00>, <Product: Orange 20.00>]>
<QuerySet [<Product: Carrot 30.00>]>
<QuerySet [<Product: Chicken 40.00>, <Product: Beef 50.00>]>
<QuerySet [<Product: Salmon 60.00>]>
<QuerySet [<Product: Apple 10.00>, <Product: Chicken 40.00>, <Product: Salmon 60.00>]>

But, 6 SELECT queries are still run instead of 1 SELECT query as shown below:

Next, I iterate Product model from Category model with prefetch_related("product_set") as shown below:

for obj in Category.objects.prefetch_related("product_set").all():
    print(obj.product_set.all())

Then, these below are outputted on console:

<QuerySet [<Product: Apple 10.00>, <Product: Orange 20.00>]>
<QuerySet [<Product: Carrot 30.00>]>
<QuerySet [<Product: Chicken 40.00>, <Product: Beef 50.00>]>
<QuerySet [<Product: Salmon 60.00>]>
<QuerySet [<Product: Apple 10.00>, <Product: Chicken 40.00>, <Product: Salmon 60.00>]>

Then, 2 SELECT queries are run as shown below:

<Additional experiments>

For example, there are Country, State and City models which have one-to-many relationship as shown below:

# "app/models.py"

from django.db import models

class Country(models.Model):
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

class State(models.Model):
    country = models.ForeignKey(Country, on_delete=models.CASCADE)
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

class City(models.Model):
    state = models.ForeignKey(State, on_delete=models.CASCADE)
    name = models.CharField(max_length=20)

    def __str__(self):
        return self.name

And, there are Country, State and City admins as shown below:

# "app/admin.py

from django.contrib import admin
from .models import Country, State, City

@admin.register(Country)
class CountryAdmin(admin.ModelAdmin):
    list_display = ('id', 'name')
    ordering = ('id',)

@admin.register(State)
class StateAdmin(admin.ModelAdmin):
    list_display = ('id', 'name', 'get_country')
    ordering = ('id',)

    @admin.display(description='country')
    def get_country(self, obj):
        return obj.country

@admin.register(City)
class CityAdmin(admin.ModelAdmin):
    list_display = ('id', 'name', 'get_state', 'get_country')
    ordering = ('id',)

    @admin.display(description='state')
    def get_state(self, obj):
        print(obj)
        return obj.state

    @admin.display(description='country')
    def get_country(self, obj):
        return obj.state.country

Then, Country admin has 2 objects as shown below:

And, State admin has 3 objects as shown below:

Then, City admin has 6 objects as shown below:

<Forward Foreign Key>

Then, I iterate Country model from City model with select_related("state__country") as shown below:

for obj in City.objects.all().select_related("state__country"):
    print(obj.state.country)

Then, these below are outputted on console:

USA
USA
USA
USA
Japan
Japan

Then, 1 SELECT query is run as shown below:

Next, I iterate Country model from City model with prefetch_related("state__country") as shown below:

for obj in City.objects.all().prefetch_related("state__country"):
    print(obj.state.country)

Then, these below are outputted on console:

USA
USA
USA
USA
Japan
Japan

Then, 3 SELECT queries are run as shown below:

<Reverse Foreign Key>

Next, I iterate City model from Country model with prefetch_related("state_set__city_set") as shown below:

for country_obj in Country.objects.all().prefetch_related("state_set__city_set"):
    for state_obj in country_obj.state_set.all():
        for city_obj in state_obj.city_set.all():
            print(city_obj)

Then, these below are outputted on console:

San Francisco
Los Angeles
San Diego
Kansas City
Ginza
Akihabara

Then, 3 SELECT queries are run as shown below:

Next, I iterate City model from Country model with prefetch_related("state_set__city_set") with filter() instead of all() as shown below. *prefetch_related() with filter() doesn't work:

                                  # Here
for country_obj in Country.objects.filter().prefetch_related("state_set__city_set"):
    for state_obj in country_obj.state_set.filter(): # Here
        for city_obj in state_obj.city_set.filter(): # Here
            print(city_obj)

Then, these below are outputted on console:

San Francisco
Los Angeles
San Diego
Kansas City
Ginza
Akihabara

Then, 8 SELECT queries are run as shown below:

So to reduce 8 SELECT queries, I need to use Prefetch() with filter() but I only know how to iterate State model from Country model with Prefetch() and filter() as shown below. *I asked the question on Stack Overflow about how to iterate City model from Country model with Prefetch() and filter():

for country_obj in Country.objects.filter().prefetch_related(
    Prefetch('state_set', # Here
        queryset=State.objects.filter(),
        to_attr='state_obj'
    )
):
    print(country_obj.state_obj)

Then, these below are outputted on console:

[<State: California>, <State: Missouri>]
[<State: Tokyo>]

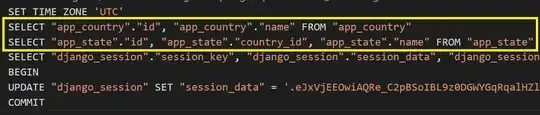

Then, 2 SELECT queries are run as shown below:

Answer 5

Don't be confused
**select_related:** Use for ForeignKey relationship,
**prefetch_related:** Use for ManyToManyField relationship or reverse ForeignKey.
They doing the same thing reducing the number of query
For example:

class ExampleClassA(models.Model):
    title = models.CharField(max_length=50)

class ExampleClassB(models.Model):
    example_class_a = models.ForeignKey(ExampleClassA,
        on_delete=models.CASCADE)



objects = ExampleClassB.objects.all()

for obj in objects:
    print(obj.example_class_a.title)

Number of query(access related field): N+1 (# n is number of ExampleClassA's object)
if we use this query:

objects = ExampleClassB.objects.select_related('example_class_a').all()

Number of query is only one.

Answer 6

Let me try to show you how Django is going to make db calls in select_related and prefetch_related

class a(models.Model):
    name = models.CharField(max_length=100)

class b(models.Model):
    name = models.CharField(max_length=100)
    a = models.ForeignKey(A, on_delete=models.CASCADE)

#select_related query->

b.objects.select_related('a').first()

SQL query executed for this would be

SELECT * FROM "b" LEFT OUTER JOIN "a" ON ("b"."a_id" = "a"."id") LIMIT 1

Here Django will get "a" model details using JOIN

#prefetch_related query->

B.objects.prefetch_related('a').first()

SQL query executed for this would be

SELECT * FROM "b" LIMIT 1
SELECT * FROM "a" WHERE "a"."id" IN (ids collected from above query)

Here Django will execute two SQL query and merge them through python
