How do I create an COM visible class in C#?

Question

I using Visual Studio 2010 (.NET 4). I need to create a COM object (in C#) and have no idea how to get started (what type of project to use,etc.)

Answer 1

OK I found the solution and I'll write it here for the common good.

1. Start VS2010 as administrator.
2. Open a class library project (exmaple - MyProject).
3. Add a new interface to the project (see example below).
4. Add a using System.Runtime.InteropServices; to the file
5. Add the attributes InterfaceType, Guid to the interface.
6. You can generate a Guid using Tools->Generate GUID (option 4).
7. Add a class that implement the interface.
8. Add the attributes ClassInterface, Guid, ProgId to the interface.
   ProgId convention is {namespace}.{class}
9. Under the Properties folder in the project in the AssemblyInfo file set ComVisible to true.
10. In the project properties menu, in the build tab mark "Register for COM interop"
11. Build the project

now you can use your COM object by using it's ProgID.

example: the C# code:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;

using System.Runtime.InteropServices;

namespace Launcher
{

    [InterfaceType(ComInterfaceType.InterfaceIsDual), Guid("XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX")]
    public interface ILauncher
    {
        void launch();
    }

    [ClassInterface(ClassInterfaceType.None), Guid("YYYYYYYY-YYYY-YYYY-YYYY-YYYYYYYYYYY"), ProgId("Launcher.Launcher")]
    public class Launcher : ILauncher
    {
        private string path = null;

        public void launch()
        {
            Console.WriteLine("I launch scripts for a living.");

        }

    }
}

and VBScript using the COM:

set obj = createObject("PSLauncher.PSLauncher") obj.launch()

and the output will be:

I launch scripts for a living

Answer 2

Creation Steps

1. Start Visual Studio 2013 as administrator
2. Install Visual Studio extension Microsoft Visual Studio Installer Projects
3. Create a class library project (WinFormActivex)
4. Create your example window form (MainWindow)
5. Create a new component interface(ILauncher)
6. Create a new security interface (IObjectSafety)
7. Create the component control (Launcher) that implement interfaces and launch the window.
8. Check that all GUIDs are generated by you
9. Check that the project is marked for COM
10. Create the setup project (LauncherInstaller) with the primary output of WinFormActivex with the property Register = vsdrpCOM
11. Install LauncherInstaller
12. Run your test page in explorer (test.html)

MainWindow You can create a normal Form, here is pre-generated.

public partial class MainWindow : Form
{
    public MainWindow()
    {
        InitializeComponent();
    }

    /// <summary>
    /// Required designer variable.
    /// </summary>
    private System.ComponentModel.IContainer components = null;

    /// <summary>
    /// Clean up any resources being used.
    /// </summary>
    /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
    protected override void Dispose(bool disposing)
    {
        if (disposing && (components != null))
        {
            components.Dispose();
        }
        base.Dispose(disposing);
    }

    #region Windows Form Designer generated code

    /// <summary>
    /// Required method for Designer support - do not modify
    /// the contents of this method with the code editor.
    /// </summary>
    private void InitializeComponent()
    {
        this.textBox1 = new System.Windows.Forms.TextBox();
        this.textBox2 = new System.Windows.Forms.TextBox();
        this.SuspendLayout();
        //
        // textBox1
        //
        this.textBox1.Location = new System.Drawing.Point(42, 23);
        this.textBox1.Name = "textBox1";
        this.textBox1.Size = new System.Drawing.Size(100, 20);
        this.textBox1.TabIndex = 0;
        //
        // textBox2
        //
        this.textBox2.Location = new System.Drawing.Point(42, 65);
        this.textBox2.Name = "textBox2";
        this.textBox2.Size = new System.Drawing.Size(100, 20);
        this.textBox2.TabIndex = 0;
        //
        // MainWindow
        //
        this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
        this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
        this.ClientSize = new System.Drawing.Size(284, 261);
        this.Controls.Add(this.textBox2);
        this.Controls.Add(this.textBox1);
        this.Name = "MainWindow";
        this.Text = "MainWindow";
        this.ResumeLayout(false);
        this.PerformLayout();

    }

    #endregion

    private System.Windows.Forms.TextBox textBox1;
    private System.Windows.Forms.TextBox textBox2;
}

ILauncher

using System.Runtime.InteropServices;
namespace WinFormActivex
{
    [ComVisible(true)]
    [InterfaceType(ComInterfaceType.InterfaceIsDual)]
    [Guid("94D26775-05E0-4B9C-BC73-C06FE915CF89")]
    public interface ILauncher
    {
        void ShowWindow();
    }
}

IObjectSafety

[ComImport()]
[Guid("51105418-2E5C-4667-BFD6-50C71C5FD15C")]
[InterfaceType(ComInterfaceType.InterfaceIsIUnknown)]
interface IObjectSafety
{
    [PreserveSig()]
    int GetInterfaceSafetyOptions(ref Guid riid, out int pdwSupportedOptions, out int pdwEnabledOptions);
    [PreserveSig()]
    int SetInterfaceSafetyOptions(ref Guid riid, int dwOptionSetMask, int dwEnabledOptions);
    }

Launcher Please generate your GUID here.

 [ComVisible(true)]
 [ClassInterface(ClassInterfaceType.None)]
 [Guid("D100C392-030A-411C-92B6-4DBE9AC7AA5A")]
 [ProgId("WinFormActivex.Launcher")]
 [ComDefaultInterface(typeof(ILauncher))]
 public class Launcher : UserControl, ILauncher, IObjectSafety
 {
     #region [ ILauncher ]

     public void ShowWindow()
     {
         var f = new MainWindow();
         f.StartPosition = FormStartPosition.Manual;
         f.Location = Screen.AllScreens[0].Bounds.Location;
         f.WindowState = FormWindowState.Normal;
         f.WindowState = FormWindowState.Maximized;
         f.ShowInTaskbar = false;
         f.Show();
     }

     #endregion

     #region [ IObjectSafety ]

     public enum ObjectSafetyOptions
     {
         INTERFACESAFE_FOR_UNTRUSTED_CALLER = 0x00000001,
         INTERFACESAFE_FOR_UNTRUSTED_DATA = 0x00000002,
         INTERFACE_USES_DISPEX = 0x00000004,
         INTERFACE_USES_SECURITY_MANAGER = 0x00000008
     };

     public int GetInterfaceSafetyOptions(ref Guid riid, out int pdwSupportedOptions, out int pdwEnabledOptions)
     {
         ObjectSafetyOptions m_options = ObjectSafetyOptions.INTERFACESAFE_FOR_UNTRUSTED_CALLER | ObjectSafetyOptions.INTERFACESAFE_FOR_UNTRUSTED_DATA;
         pdwSupportedOptions = (int)m_options;
         pdwEnabledOptions = (int)m_options;
         return 0;
     }

     public int SetInterfaceSafetyOptions(ref Guid riid, int dwOptionSetMask, int dwEnabledOptions)
     {
         return 0;
     }

     #endregion
 }

test.html Please check that your CLSID match (Launcher) GUID.

<html>
    <head>
        <objectname="activexLauncher" style='display:none' id='activexLauncher' classid='CLSID:D100C392-030A-411C-92B6-4DBE9AC7AA5A' codebase='WinFormActivex'></object>
      <script language="javascript">
        <!-- Load the ActiveX object  -->
        var x = new ActiveXObject("WinFormActivex.Launcher");
        alert(x.GetText());
      </script>
    </head>
    <body>
    </body>
</html>

References

• Stack Overflow question I always use as reference
• Activex tag you should read
• Old Microsoft guide
• Article on creating the acrivex control with security options
• Article about creating the window

Answer 3

You could use a class library project. Declare a type with methods that will be exposed as a COM object.

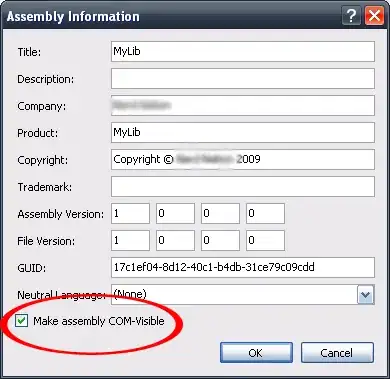

Make sure that the assembly has been made COM-visible:

And finally register it using regasm.exe:

regasm.exe /codebase mylib.dll

Now the assembly is exposed as a COM object and the type you declared can be consumed by any client that supports COM.
