Is it possible to evenly distribute buttons across the width of a LinearLayout

Question

I have a LinearLayout (oriented horizontally) that contains 3 buttons. I want the 3 buttons to have a fixed width and be evenly distributed across the width of the LinearLayout.

I can manage this by setting the gravity of the LinearLayout to center and then adjusting the padding of the buttons, but this works for a fixed width and won't work for different devices or orientations.

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:gravity="center"
    android:orientation="horizontal">

    <Button
        android:id="@+id/btnOne"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />

    <Button
        android:id="@+id/btnTwo"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />


    <Button
        android:id="@+id/btnThree"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />
</LinearLayout>

Duplicate? http://stackoverflow.com/questions/3450561/scrollview-issue-in-android-layout-xml — , Aug 13 '14 at 01:21
Look into this [Equal width ImageViews in horizontal LinearLayout](http://stackoverflow.com/a/30660258/782535) — Madan Sapkota, Jun 05 '15 at 07:05
you can set weight sum programmatically and make buttons inside for loop https://stackoverflow.com/questions/11611531/android-layout-weight-programmatically — Priyanka, Jan 28 '21 at 12:52

score 421 · Accepted Answer · edited May 23 '17 at 12:03

421

Expanding on fedj's answer, if you set layout_width to 0dp and set the layout_weight for each of the buttons to 1, the available width will be shared equally between the buttons.

edited May 23 '17 at 12:03

Community

1
1

answered Aug 12 '10 at 18:24

Dan Dyer

53,737
19
129
165

87

To expand on this, if you don't want the width of the buttons to be 1/3rd of the screen, wrap each button in a LinearLayout and set layout_width="0dp" and layout_weight="1" on the 3 LinearLayouts. Additionally, set the gravity on the LinearLayouts to "center" so the buttons will align in the center of each LinearLayout. – Andrew Aug 12 '10 at 22:09
this is the case for linearlayout only.can any one give any idea for equispacing in relativelayout – user1859771 Jan 06 '14 at 10:07
2

In my case, i use layout_width="wrap_content" and only with layout_weight="1" works good! – StefanoM5 Feb 17 '15 at 10:58
1

This is not correct as the OP wants fixed with. See stoefln's answer. – Mitulát báti May 15 '19 at 00:37
what about imageview where we need equal padding? cant set weight to imageview as image will be stretched. – Mihir Shah Aug 11 '20 at 03:45

stoefln · Answer 2 · 2016-04-24T09:53:33.270

269

If you don't want the buttons to scale, but adjust the spacing between the buttons (equal spacing between all buttons), you can use views with weight="1" which will fill the space between the buttons:

    <Space
        android:layout_width="0dp"
        android:layout_height="1dp"
        android:layout_weight="1" >
    </Space>

    <ImageButton
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:adjustViewBounds="true"
        android:background="@null"
        android:gravity="center_horizontal|center_vertical"
        android:src="@drawable/tars_active" />

    <Space
        android:layout_width="0dp"
        android:layout_height="1dp"
        android:layout_weight="1" >
    </Space>

    <ImageButton
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:adjustViewBounds="true"
        android:background="@null"
        android:gravity="center_horizontal|center_vertical"
        android:src="@drawable/videos_active" />

    <Space
        android:layout_width="0dp"
        android:layout_height="1dp"
        android:layout_weight="1" >
    </Space>

edited Apr 24 '16 at 09:53

answered Jan 02 '13 at 16:46

stoefln

14,498
18
79
138

16

This is definitely the simplest, lowest overhead method that works (for the case where you want the space between the views to scale, not the views themselves). I'm using it vertically, and so just swapped the width and height values. Thanks. – samus Jan 15 '13 at 17:01
8

This is an elegant solution. You may prefer to use the `Space` view type. Makes things a bit more readable. – Ryan R Jul 30 '14 at 15:19
2

Ryan, yes, that is if you are using API 14+ (as we should). – Eduardo Naveda Jul 23 '15 at 00:31
Honestly, I thought it won't work when having 4 buttons, but it worked brilliantly with no fuss and runtime measuring. Respect! – Ashraf Alshahawy Apr 21 '16 at 11:28
This is better than the one that's accepted as answer currently. – DroidHeaven May 03 '18 at 10:02
This code misses the top linear layout. For this to work with an arbitrary number of buttons, you need each button wrapped within spaces. Works beautifully though. – Nov 24 '18 at 06:34
didn't even know Space was a type of View. Thanks for this simple straightforward solution. – lasec0203 Nov 16 '20 at 03:03

score 33 · Answer 3 · answered Jan 03 '20 at 03:44

The modern solution for this is Flexbox.

<com.google.android.flexbox.FlexboxLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    app:justifyContent="space_around"> <!-- or "space_between", "space_evenly" -->

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />

    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:width="120dp" />
</com.google.android.flexbox.FlexboxLayout>

Make sure to import implementation 'com.google.android:flexbox:2.0.0'

Flexbox is far more powerful; it is a good complement to ConstraintLayout. This is a great resource to learn more.

thanks for making me (us) aware of it. Definitely useful. I used "space_around" and the buttons were nicely centered when I had 1 or 3 visible within the FlexBox — Someone Somewhere, May 21 '20 at 18:37

score 31 · Answer 4 · edited Jan 09 '17 at 06:24

You can do this by giving both Views a layout_width of 0dp and a layout_weight of 1:

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <Button
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_weight="1"/>

    <TextView
        android:layout_width="0dp"
        android:text="example text"
        android:layout_height="wrap_content"
        android:layout_weight="1"/>

</LinearLayout>

The way android layout_weight works is that:

first, it looks to the size that a View would normally take and reserves this space.
second, if the layout is match_parent then it will divide the space that is left in the ratio of the layout_weights. Thus if you gave the Views layout_weight="2" and layout_weight="1",the resultant ratio will be 2 to 1,that is : the first View will get 2/3 of the space that is left and the other view 1/3.

So that's why if you give layout_width a size of 0dp the first step has no added meaning since both Views are not assigned any space. Then only the second point decides the space each View gets, thus giving the Views the space you specified according to the ratio!

To explain why 0dp causes the space to devide equally by providing an example that shows the opposite: The code below would result in something different since example text now has a width that is greater than 0dp because it has wrap_content instead making the free space left to divide less than 100% because the text takes space. The result will be that they do get 50% of the free space left but the text already took some space so the TextView will have well over 50% of the total space.

<LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <Button
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:layout_weight="1"/>

    <TextView
        android:layout_width="wrap_content"
        android:text="example text"
        android:layout_height="wrap_content"
        android:layout_weight="1"/>

</LinearLayout>

score 24 · Answer 5 · answered Sep 19 '15 at 08:10

You may use it with like the following.

<LinearLayout
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:orientation="horizontal"
    android:layout_marginTop="15dp">
    <Space
        android:layout_weight="1"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"/>
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Save"/>
    <Space
        android:layout_weight="1"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"/>
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Reset"/>
    <Space
        android:layout_weight="1"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"/>
    <Button
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="cancel"/>
    <Space
        android:layout_weight="1"
        android:layout_height="wrap_content"
        android:layout_width="wrap_content"/>
</LinearLayout>

that's sweeet!! I never heard of `Space` until just now – Someone Somewhere Dec 05 '17 at 23:39 — Someone Somewhere, Dec 05 '17 at 23:39

score 14 · Answer 6 · answered Aug 12 '10 at 18:18

14

You should take a look to android:layout_weight attribute

answered Aug 12 '10 at 18:18

fedj

3,452
1
22
21

2

It was my understanding that the layout_weight attribute will stretch the size of the button to fill the layout. I want to keep the size of the buttons constant and just increase the padding between the buttons. – yamspog Aug 12 '10 at 18:24
Ah ! I don't really know the best way to do it. Perhaps enclosing each button in layout. The 3 layout with layout_weight attribute and the button centered in the layout. But I really don't know if it is the best way to do it. – fedj Aug 12 '10 at 18:49

score 13 · Answer 7 · answered Nov 15 '11 at 01:58

13

Well, if you have exactly 3 buttons and if it is ok (or even planned) that the outer buttons are aligned to the left and right side then you might want to try a RelativeLayout which is less overhead (in many situations).

You can use layout_alignParentBottom to align all buttons with the bottom of the layout. Use layout_alignParentLeft and Right for the outer buttons and layout_centerHorizontal for the middle button.

That will work well on different orientations and screen sizes.

answered Nov 15 '11 at 01:58

marsbear

1,459
10
23

To clarify, this doesn't work if you have more than three buttons. – arlomedia Feb 25 '14 at 01:03
Exactly. You'd have to use a LinearLayout or RadioGroup (if applicable) instead. – marsbear Feb 25 '14 at 14:34

Keshav · Answer 8 · 2021-01-31T12:31:44.410

You should use an android:weightSum attribute linear layout. Give linear layout a weightSum equal to the number of Buttons inside the layout, then set android:layout_weight="1" and set width of the button android:layout_width="0dp" further, you can style the layout using paddings and layout margins.

<LinearLayout android:id="@+id/LinearLayout01"
    android:layout_height="wrap_content"
    android:orientation="horizontal"
    android:layout_width="fill_parent"
    android:gravity="center"
    android:weightSum="3">

    <Button
        android:id="@+id/btnOne"
        android:layout_width="0dp"
        android:text="1"
        android:layout_height="wrap_content"
        android:width="120dip"
        android:layout_weight="1"
        android:layout_margin="15dp"
        />

    <Button
        android:id="@+id/btnTwo"
        android:text="2"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:width="120dip"
        android:layout_weight="1"
        android:layout_margin="15dp" />

    <Button
        android:id="@+id/btnThree"
        android:text="3"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        android:width="120dip"
        android:layout_weight="1"
        android:layout_margin="15dp" />

</LinearLayout>

In order to do it dynamically

void initiate(Context context){
    LinearLayout parent = new LinearLayout(context);

    parent.setLayoutParams(new LinearLayout.LayoutParams(LinearLayout.LayoutParams.MATCH_PARENT, LinearLayout.LayoutParams.WRAP_CONTENT));
    parent.setWeightSum(3);
    parent.setOrientation(LinearLayout.HORIZONTAL);

    AppCompatButton button1 = new AppCompatButton(context);
    button1.setLayoutParams(new LinearLayout.LayoutParams(0 ,LinearLayout.LayoutParams.WRAP_CONTENT,1.0f));

    AppCompatButton button2 = new AppCompatButton(context);
    button2.setLayoutParams(new LinearLayout.LayoutParams(0 ,LinearLayout.LayoutParams.WRAP_CONTENT,1.0f));

    AppCompatButton button3 = new AppCompatButton(context);
    button3.setLayoutParams(new LinearLayout.LayoutParams(0 ,LinearLayout.LayoutParams.WRAP_CONTENT,1.0f));

    parent.addView(button1);
    parent.addView(button2);
    parent.addView(button3);

}

again i want it dynamically – Rocky cohn Jan 31 '21 at 08:02 — Rocky cohn, Jan 31 '21 at 08:02

score 6 · Answer 9 · edited Feb 04 '21 at 05:25

In linearLayout Instead of giving weight to Button itself , set the weight to <Space> View this won't stretch the Button.

    <?xml version="1.0" encoding="utf-8"?>
    <androidx.constraintlayout.widget.ConstraintLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal"
        android:weightSum="4"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintHorizontal_bias="0.5"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent"
        app:layout_constraintVertical_bias="0.955">

        <Space
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_weight="1" />

        <Button
            android:layout_width="48dp"
            android:layout_height="48dp"
            android:background="@drawable/ic_baseline_arrow_back_24" />

        <Space
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_weight="1" />

        <Button
            android:id="@+id/captureButton"
            android:layout_width="72dp"
            android:layout_height="72dp"
            android:background="@drawable/ic_round_camera_24" />

        <Space
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_weight="1" />

        <Button
            android:id="@+id/cameraChangerBtn"
            android:layout_width="48dp"
            android:layout_height="48dp"
            android:background="@drawable/ic_round_switch_camera_24" />

        <Space
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_weight="1" />
    </LinearLayout>

    </androidx.constraintlayout.widget.ConstraintLayout>

as I am using 4 <Space> I set the android:weightSum="4" In linear layout also this is the result ::

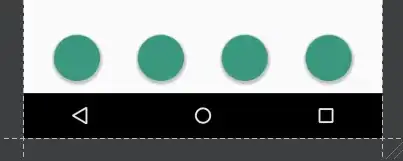

layout preview

score 4 · Answer 10 · answered May 30 '12 at 23:51

For evenly spacing out two buttons in a horizontal linear layout, I used 3 LinearLayout objects to act as spaces which are going to be automatically resized. I positioned these LinearLayout objects as follow:

[] Button1 [] Button2 []

([] represents a LinearLayout object used for spacing)

then I set each of these [] LinearLayout objects' weights to 1, and I get evenly spaced out buttons.

Hope this helps.

martyglaubitz · Answer 11 · 2014-07-11T13:13:32.857

4

i created a custom View DistributeLayout to do this.

edited Jul 11 '14 at 13:13

answered Jul 10 '14 at 22:12

martyglaubitz

992
10
21

score 4 · Answer 12 · answered Nov 27 '15 at 14:09

4

I suggest you use LinearLayout's weightSum attribute.

Adding the tag android:weightSum="3" to your LinearLayout's xml declaration and then android:layout_weight="1" to your Buttons will result in the 3 buttons being evenly distributed.

answered Nov 27 '15 at 14:09

matdev

4,115
6
35
56

score 4 · Answer 13 · answered Nov 29 '16 at 20:21

This can be achieved assigning weight to every button added inside the container, very important to define horizontal orientation :

    int buttons = 5;

    RadioGroup rgp = (RadioGroup) findViewById(R.id.radio_group);

    rgp.setOrientation(LinearLayout.HORIZONTAL);

    for (int i = 1; i <= buttons; i++) {
        RadioButton rbn = new RadioButton(this);
        rbn.setId(1 + 1000);
        rbn.setText("RadioButton" + i);
        //Adding weight
        LinearLayout.LayoutParams params = new LinearLayout.LayoutParams(LayoutParams.MATCH_PARENT, LayoutParams.WRAP_CONTENT, 1f);
        rbn.setLayoutParams(params);
        rgp.addView(rbn);
    }

so we can get this in our device as a result:

even if we rotate our device the weight defined in each button can distribuite the elemenents uniformally along the container:

score 3 · Answer 14 · edited Jan 31 '21 at 04:34

3

Best approach is to use TableLayout with android:layout_width="match_parent" and in columns use android:layout_weight="1" for all columns.

edited Jan 31 '21 at 04:34

Satan Pandeya

3,747
4
27
53

answered Oct 30 '14 at 08:59

Prashant

557
4
7

score 2 · Answer 15 · answered Jan 11 '17 at 19:28

The above answers using layout_didn't work for me, but the following did.

<LinearLayout
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:orientation="horizontal"
    android:layout_weight="0.1"
    android:layout_gravity="center_horizontal"
    >

    <android.support.design.widget.FloatingActionButton
        android:layout_width="50dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
       />

    <android.support.design.widget.FloatingActionButton
        android:layout_width="50dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
        android:layout_marginLeft="40dp"
        android:layout_marginStart="40dp"/>

    <android.support.design.widget.FloatingActionButton
        android:layout_width="50dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
        android:layout_marginLeft="40dp"
        android:layout_marginStart="40dp"
        />

    <android.support.design.widget.FloatingActionButton
        android:layout_width="50dp"
        android:layout_height="50dp"
        android:layout_gravity="center"
        android:layout_marginLeft="40dp"
        android:layout_marginStart="40dp"/>

</LinearLayout>

This is how it looks on screen,

Rajesh N · Answer 16 · 2017-08-26T10:34:03.960

Above all answers are right but In a case you need visible and gone features then this pragmatically method will work well

<LinearLayout
        android:layout_width="match_parent"
        android:layout_height="50dp"
        android:orientation="horizontal">

        <Button
            android:id="@+id/btnOne"
            android:layout_width="120dp"
            android:layout_height="match_parent"></Button>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="120dp"
            android:layout_height="match_parent"></Button>


        <Button
            android:id="@+id/btnThree"
            android:layout_width="120dp"
            android:layout_height="match_parent"></Button>
    </LinearLayout>



 float width=CommonUtills.getScreenWidth(activity);
            int cardWidth=(int)CommonUtills.convertDpToPixel (((width)/3),activity);

LinearLayout.LayoutParams params =
                new LinearLayout.LayoutParams(width,
                        LinearLayout.LayoutParams.MATCH_PARENT);

btnOne.setLayoutParams(params);
btnTwo.setLayoutParams(params);
btnThree.setLayoutParams(params);

public class CommonUtills {
public static float getScreenWidth(Context context) {
        float width = (float) 360.0;
        DisplayMetrics displayMetrics = context.getResources().getDisplayMetrics();
        width = displayMetrics.widthPixels / displayMetrics.density;
        return width;
    }
}

score 2 · Answer 17 · edited Jan 13 '18 at 23:43

Equally weighted children

To create a linear layout in which each child uses the same amount of space on the screen, set the android:layout_height of each view to "0dp" (for a vertical layout) or the android:layout_width of each view to "0dp" (for a horizontal layout). Then set the android:layout_weight of each view to "1".

In order for this to work in the LinearLayout view group the attribute values for android:layout_width and android:layout_height need to be equal to "match_parent"...

score 1 · Answer 18 · edited Jan 31 '21 at 04:36

you can use this . it's so easy to understand : by https://developer.android

<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="wrap_content"
android:layout_height="wrap_content">

<TextView
    android:text="Tom"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:layout_weight="1"
    android:textSize="24sp" />

<TextView
    android:text="Tim"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:layout_weight="1"
    android:textSize="24sp" />

<TextView
    android:text="Todd"
    android:layout_width="0dp"
    android:layout_height="wrap_content"
    android:layout_weight="1"
    android:textSize="24sp" />

</LinearLayout>

score 0 · Answer 19 · edited Jun 11 '17 at 18:37

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <TextView
        android:text="Tom"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="24sp"
        android:layout_weight="3"/>

    <TextView
        android:text="Tim"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="24sp"
        android:layout_weight="3"/>

    <TextView
        android:text="Todd"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:textSize="24sp"
        android:layout_weight="3"/>

</LinearLayout>

In circle, Tom, Tim, and Todd get assumed to be 3 centimeters. If you want it to be touch down screen, put it as Tom and Tim getting assumed to be 1 centimeter, which means they combine virtual but its 2D plane is at the bottom. This is displayed on screen.

score 0 · Answer 20 · edited Dec 27 '17 at 00:35

0

The easiest and fastest way, (but not the best), is to add a TextView with empty text attribute, like this

android:text=""

the background color must be the same at the LinearLayout, then you could use the padding property, like this

android:paddingBottom="250dp"

or whatever you need. Here is an example.

edited Dec 27 '17 at 00:35

svgrafov

1,970
4
16
32

answered Dec 26 '17 at 23:11

Cesar Bobadilla

37
3

score 0 · Answer 21 · answered Jan 28 '21 at 18:58

If you want the 3 buttons to have a fixed width and be evenly distributed across the width of the layout... why not use constraintLayout?

<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

        <Button
            android:id="@+id/btnOne"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:width="120dip"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toStartOf="parent"
            app:layout_constraintEnd_toStartOf="@id/btnTwo">

        </Button>

        <Button
            android:id="@+id/btnTwo"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:width="120dip"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintEnd_toStartOf="@id/btnThree"
            app:layout_constraintStart_toEndOf="@id/btnOne"></Button>


        <Button
            android:id="@+id/btnThree"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:width="120dip"
            app:layout_constraintTop_toTopOf="parent"
            app:layout_constraintBottom_toBottomOf="parent"
            app:layout_constraintStart_toEndOf="@id/btnTwo"
            app:layout_constraintEnd_toEndOf="parent">

        </Button>

</androidx.constraintlayout.widget.ConstraintLayout>

I want through java though, which is dynamic and not through xml — Rocky cohn, Jan 29 '21 at 08:44
then you might need a Horizontal RecyclerView: https://www.geeksforgeeks.org/how-to-create-dynamic-horizontal-recyclerview-in-android-using-firebase-firestore/ or Perhaps if you need a list with different components, just make an heterogeneous recyclerView: https://guides.codepath.com/android/Heterogeneous-Layouts-inside-RecyclerView — Adrian Narducci, Feb 02 '21 at 21:46

score 0 · Answer 22 · edited Oct 06 '21 at 10:16

Width and be are evenly distributed across the width of the layout. Why not use constraintLayout?

<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent" android:layout_height="match_parent">

 <Button android:id="@+id/btnOne" android:layout_width="wrap_content"
  android:layout_height="wrap_content" android:width="120dip"
  app:layout_constraintTop_toTopOf="parent"
  app:layout_constraintBottom_toBottomOf="parent"
  app:layout_constraintStart_toStartOf="parent"
  app:layout_constraintEnd_toStartOf="@id/btnTwo">
 </Button>

 <Button android:id="@+id/btnTwo" android:layout_width="wrap_content"
  android:layout_height="wrap_content" android:width="120dip"
  app:layout_constraintTop_toTopOf="parent"
  app:layout_constraintBottom_toBottomOf="parent"
  app:layout_constraintEnd_toStartOf="@id/btnThree"
  app:layout_constraintStart_toEndOf="@id/btnOne"></Button> <Button
  android:id="@+id/btnThree" android:layout_width="wrap_content"
  android:layout_height="wrap_content" android:width="120dip"
  app:layout_constraintTop_toTopOf="parent"
  app:layout_constraintBottom_toBottomOf="parent"
  app:layout_constraintStart_toEndOf="@id/btnTwo"
  app:layout_constraintEnd_toEndOf="parent">
 </Button>

</androidx.constraintlayout.widget.ConstraintLayout>```

score 0 · Answer 23 · answered Oct 03 '22 at 13:16

Another solution would be to nest buttons inside a constraint layout and space them equaly this way. Make sure to set the constraints properly, so the buttons will be spaced equaly in the layout.

Works even if you have a LinearLayout as root.

<androidx.constraintlayout.widget.ConstraintLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content">

    <androidx.appcompat.widget.AppCompatButton
        android:id="@+id/deleteButton"
        android:layout_width="wrap_content"
        android:layout_height="64dp"
        android:layout_marginStart="8dp"
        android:layout_marginTop="8dp"
        android:layout_marginBottom="8dp"
        android:text="asdf"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toStartOf="@+id/shareButton"
        app:layout_constraintStart_toStartOf="parent"
        app:layout_constraintTop_toTopOf="parent" />

    <androidx.appcompat.widget.AppCompatButton
        android:id="@+id/shareButton"
        android:layout_width="wrap_content"
        android:layout_height="64dp"

        android:layout_marginStart="8dp"
        android:layout_marginEnd="8dp"
        android:text="sdsfa"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toEndOf="@+id/deleteButton"
        app:layout_constraintTop_toTopOf="@+id/deleteButton" />
</androidx.constraintlayout.widget.ConstraintLayout>

score -1 · Answer 24 · answered Nov 08 '17 at 23:34

<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="wrap_content"
android:layout_height="wrap_content">

<TextView
    android:text="Tom"
    android:layout_width="wrap_content"
    android:layout_height="200dp"
    android:textSize="24sp" />

<TextView
    android:text="Tim"
    android:layout_width="wrap_content"
    android:layout_height="200dp"
    android:textSize="24sp" />

<TextView
    android:text="Todd"
    android:layout_width="wrap_content"
    android:layout_height="200dp"
    android:textSize="24sp" />

Is it possible to evenly distribute buttons across the width of a LinearLayout

24 Answers24

The modern solution for this is Flexbox.

Linked

Related
