I am trying to understand how PaintCode animations can be intergated in Xcode. In my example I have a ball going from right to left. I want the animation to start as long as the app starts and stop when you stop the stop button. In the attachments is what i have done so far:

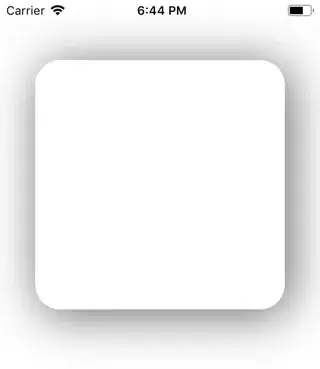

StyleKit PCView

ViewController

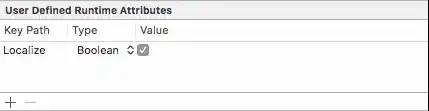

When I run it returns an error: error message

Tricertops
  • 8,492
  • 1
  • 39
  • 41
Do2
  • 1,751
  • 1
  • 16
  • 28

1 Answers1

1

A few things are wrong here

  • First thing that is wrong is that your drawBall function is defined with an argument, but you never pass anything to it through the NSTimer. You should use the userInfo argument of the NSTimer initialisation if you want to pass an argument to the timer fire function.

  • Second of all, your NSTimer is trying to call the selector "drawBall", but your function is defined with an argument. Therefore it should be "drawBall:".

  • Third of all, I'm pretty sure the external argument name in your function is interfering with the selector name.

Try changing it to:

func drawBall(var fraction:CGFloat) {

...

}

It's also worth noting that you can define selectors in swift just by using the string literal syntax. Therefore you could just provide "drawBall:" in your NSTimer.

Furthermore, there are a few other things that you'll want to look into...

  • You never pass the fraction variable into your drawRect method
  • You never invoke your drawRect method (do this though using setNeedsDisplay())
Community
  • 1
  • 1
Hamish
  • 78,605
  • 19
  • 187
  • 280
  • try changing the function to `func drawBall(var fraction:CGFloat)` – Hamish Jan 21 '16 at 13:52
  • Sorry for some reason only the last two lines of your response appeared before. I have provided "drawBall:" in the NSTimer and changed the function to func drawBall(var fraction:CGFloat) . I do not get any crushes now, but as you can guess the ball doesn't move. I am not sure how to use the userInfo argument of the NSTimer initialisation in order to pass an argument, i tried userInfo: ("fraction") but it didnt work.. – Do2 Jan 21 '16 at 14:25
  • no, `userInfo` takes an object, not a primative time like `CGFloat`... what are you using the `fraction` variable for anyway? to me it looks like something that should be an instance variable (up with the `timer` and `counter` variables) – Hamish Jan 21 '16 at 14:29
  • okay... well you're never passing it into the `UIView`'s `drawRect`.. I think you want to move your animation logic into the `UIView` (including the timer), make the fraction variable an instance variable, and pass the fraction variable into the `drawBall` function (in the StyleKitName2 class) – Hamish Jan 21 '16 at 14:41
  • Let us [continue this discussion in chat](http://chat.stackoverflow.com/rooms/101315/discussion-between-originaluser2-and-do2). – Hamish Jan 21 '16 at 14:53
