How to map a composite key with JPA and Hibernate?

Question

In this code, how to generate a Java class for the composite key (how to composite key in hibernate):

create table Time (
     levelStation int(15) not null,
     src varchar(100) not null,
     dst varchar(100) not null,
     distance int(15) not null,
     price int(15) not null,
     confPathID int(15) not null,
     constraint ConfPath_fk foreign key(confPathID) references ConfPath(confPathID),
     primary key (levelStation, confPathID)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

See http://stackoverflow.com/questions/2562746/jpa-entity-design-problem/2563009#2563009 — axtavt, Aug 27 '10 at 14:23
A really good set of examples: https://vladmihalcea.com/2016/08/01/the-best-way-to-map-a-composite-primary-key-with-jpa-and-hibernate/ — TecHunter, Apr 27 '17 at 08:31

score 474 · Answer 1 · edited Aug 09 '16 at 16:12

To map a composite key, you can use the EmbeddedId or the IdClass annotations. I know this question is not strictly about JPA but the rules defined by the specification also applies. So here they are:

2.1.4 Primary Keys and Entity Identity

...

A composite primary key must correspond to either a single persistent field or property or to a set of such fields or properties as described below. A primary key class must be defined to represent a composite primary key. Composite primary keys typically arise when mapping from legacy databases when the database key is comprised of several columns. The EmbeddedId and IdClass annotations are used to denote composite primary keys. See sections 9.1.14 and 9.1.15.

...

The following rules apply for composite primary keys:

The primary key class must be public and must have a public no-arg constructor.

If property-based access is used, the properties of the primary key class must be public or protected.

The primary key class must be serializable.

The primary key class must define equals and hashCode methods. The semantics of value equality for these methods must be consistent with the database equality for the database types to which the key is mapped.

A composite primary key must either be represented and mapped as an embeddable class (see Section 9.1.14, “EmbeddedId Annotation”) or must be represented and mapped to multiple fields or properties of the entity class (see Section 9.1.15, “IdClass Annotation”).

If the composite primary key class is mapped to multiple fields or properties of the entity class, the names of primary key fields or properties in the primary key class and those of the entity class must correspond and their types must be the same.

With an `IdClass`

The class for the composite primary key could look like (could be a static inner class):

public class TimePK implements Serializable {
    protected Integer levelStation;
    protected Integer confPathID;

    public TimePK() {}

    public TimePK(Integer levelStation, Integer confPathID) {
        this.levelStation = levelStation;
        this.confPathID = confPathID;
    }
    // equals, hashCode
}

And the entity:

@Entity
@IdClass(TimePK.class)
class Time implements Serializable {
    @Id
    private Integer levelStation;
    @Id
    private Integer confPathID;

    private String src;
    private String dst;
    private Integer distance;
    private Integer price;

    // getters, setters
}

The IdClass annotation maps multiple fields to the table PK.

With `EmbeddedId`

The class for the composite primary key could look like (could be a static inner class):

@Embeddable
public class TimePK implements Serializable {
    protected Integer levelStation;
    protected Integer confPathID;

    public TimePK() {}

    public TimePK(Integer levelStation, Integer confPathID) {
        this.levelStation = levelStation;
        this.confPathID = confPathID;
    }
    // equals, hashCode
}

And the entity:

@Entity
class Time implements Serializable {
    @EmbeddedId
    private TimePK timePK;

    private String src;
    private String dst;
    private Integer distance;
    private Integer price;

    //...
}

The @EmbeddedId annotation maps a PK class to table PK.

Differences:

From the physical model point of view, there are no differences
@EmbeddedId somehow communicates more clearly that the key is a composite key and IMO makes sense when the combined pk is either a meaningful entity itself or it reused in your code.
@IdClass is useful to specify that some combination of fields is unique but these do not have a special meaning.

They also affect the way you write queries (making them more or less verbose):

with IdClass
```
select t.levelStation from Time t
```

with EmbeddedId

select t.timePK.levelStation from Time t

References

JPA 1.0 specification
- Section 2.1.4 "Primary Keys and Entity Identity"
- Section 9.1.14 "EmbeddedId Annotation"
- Section 9.1.15 "IdClass Annotation"

There is also a Hibernate-specific solution: Map multiple properties as @Id properties _without_ declaring an external class to be the identifier type (and use the IdClass annotation). See [5.1.2.1. Composite identifier](http://docs.jboss.org/hibernate/orm/4.3/manual/en-US/html_single/#mapping-declaration-id) in the Hibernate manual. — Johan Boberg, Mar 11 '14 at 19:40
Could you take a look at [this question](http://stackoverflow.com/questions/29976363/hibernate-generatedvalue-in-embedded-always-null) please? I am having troubles with a composite primary key since the member field `id` is always `null` and does not get generated :/ — Stefan Falk, May 01 '15 at 11:31
Could please put an example with a getter and setter as I am having difficulty seeing where they come into play in either case. Especially the IdClass example. thanks. Oh and including column names, thanks. — Jeremy, Feb 11 '16 at 17:21
From the [Hibernate Annotations docs](http://docs.jboss.org/hibernate/annotations/3.5/reference/en/html_single/#entity-mapping-identifier), about `@IdClass`: "It has been inherited from the dark ages of EJB 2 for backward compatibilities and we recommend you not to use it (for simplicity sake)." — Marco Ferrari, Apr 28 '17 at 13:37
So the repository signature in this case would be `public interface TimeRepository extends JpaRepository`, correct? — OrangePot, Feb 08 '18 at 18:11
Annotating multiple fields as @Id didn't work for me. I got nullpointer errors and collisions. — Florian F, Mar 21 '23 at 15:17

score 56 · Answer 2 · edited Jul 27 '17 at 13:48

56

You need to use @EmbeddedId:

@Entity
class Time {
    @EmbeddedId
    TimeId id;

    String src;
    String dst;
    Integer distance;
    Integer price;
}

@Embeddable
class TimeId implements Serializable {
    Integer levelStation;
    Integer confPathID;
}

edited Jul 27 '17 at 13:48

Abdullah Khan

12,010
6
65
78

answered Aug 27 '10 at 14:24

Thierry Roy

8,452
10
60
84

@Thierry-DimitriRoy how could I assign the timeId.levelStation and timeId.confPathID. Could you provide an example please? – Duc Tran Jan 21 '14 at 17:28
@Thierry-DimitriRoy Can the primary class not be a static inner class of the entity class? – Nikhil Sahu Sep 29 '16 at 08:24
Yes, it could be – Samy Omar May 23 '17 at 02:25

Vlad Mihalcea · Answer 3 · 2021-01-10T06:18:38.277

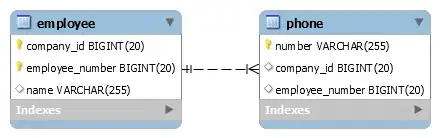

Assuming you have the following database tables:

First, you need to create the @Embeddable holding the composite identifier:

@Embeddable
public class EmployeeId implements Serializable {

    @Column(name = "company_id")
    private Long companyId;

    @Column(name = "employee_number")
    private Long employeeNumber;

    public EmployeeId() {
    }

    public EmployeeId(Long companyId, Long employeeId) {
        this.companyId = companyId;
        this.employeeNumber = employeeId;
    }

    public Long getCompanyId() {
        return companyId;
    }

    public Long getEmployeeNumber() {
        return employeeNumber;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) return true;
        if (!(o instanceof EmployeeId)) return false;
        EmployeeId that = (EmployeeId) o;
        return Objects.equals(getCompanyId(), that.getCompanyId()) &&
                Objects.equals(getEmployeeNumber(), that.getEmployeeNumber());
    }

    @Override
    public int hashCode() {
        return Objects.hash(getCompanyId(), getEmployeeNumber());
    }
}

With this in place, we can map the Employee entity which uses the composite identifier by annotating it with @EmbeddedId:

@Entity(name = "Employee")
@Table(name = "employee")
public class Employee {

    @EmbeddedId
    private EmployeeId id;

    private String name;

    public EmployeeId getId() {
        return id;
    }

    public void setId(EmployeeId id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }
}

The Phone entity which has a @ManyToOne association to Employee, needs to reference the composite identifier from the parent class via two @JoinColumnmappings:

@Entity(name = "Phone")
@Table(name = "phone")
public class Phone {

    @Id
    @Column(name = "`number`")
    private String number;

    @ManyToOne
    @JoinColumns({
        @JoinColumn(
            name = "company_id",
            referencedColumnName = "company_id"),
        @JoinColumn(
            name = "employee_number",
            referencedColumnName = "employee_number")
    })
    private Employee employee;

    public Employee getEmployee() {
        return employee;
    }

    public void setEmployee(Employee employee) {
        this.employee = employee;
    }

    public String getNumber() {
        return number;
    }

    public void setNumber(String number) {
        this.number = number;
    }
}

Is there a tool which can generate EmployeeId from db schema? — Leon, Apr 22 '18 at 09:35
Try Hibernate Tools. It has a Reverse engineering tool for that. — Vlad Mihalcea, Apr 22 '18 at 10:31
Would be great for such examples to consider different values for both `name` and `referencedColumnName` properties of the `JoinColumn` annotation as well as different names of tables' columns. Otherwise, it is not (quickly) clear the mapping part between them. — Teodor, May 04 '23 at 14:19
There is also one more interesting case, when the actual ID field/property is declared into one of entity's super classes, then you will face the following issue: - https://hibernate.atlassian.net/browse/HHH-16501 — Teodor, May 04 '23 at 14:24

score 8 · Answer 4 · answered Jan 18 '13 at 16:28

The primary key class must define equals and hashCode methods

When implementing equals you should use instanceof to allow comparing with subclasses. If Hibernate lazy loads a one to one or many to one relation, you will have a proxy for the class instead of the plain class. A proxy is a subclass. Comparing the class names would fail.
More technically: You should follow the Liskows Substitution Principle and ignore symmetricity.
The next pitfall is using something like name.equals(that.name) instead of name.equals(that.getName()). The first will fail, if that is a proxy.

http://www.laliluna.de/jpa-hibernate-guide/ch06s06.html

score 6 · Answer 5 · answered Aug 27 '10 at 20:00

Looks like you are doing this from scratch. Try using available reverse engineering tools like Netbeans Entities from Database to at least get the basics automated (like embedded ids). This can become a huge headache if you have many tables. I suggest avoid reinventing the wheel and use as many tools available as possible to reduce coding to the minimum and most important part, what you intent to do.

score 5 · Answer 6 · edited Sep 15 '17 at 19:36

Let's take a simple example. Let's say two tables named test and customer are there described as:

create table test(
  test_id int(11) not null auto_increment,
  primary key(test_id));

create table customer(
  customer_id int(11) not null auto_increment,
  name varchar(50) not null,
  primary key(customer_id));

One more table is there which keeps the track of tests and customer:

create table tests_purchased(
  customer_id int(11) not null,
  test_id int(11) not null,
  created_date datetime not null,
  primary key(customer_id, test_id));

We can see that in the table tests_purchased the primary key is a composite key, so we will use the <composite-id ...>...</composite-id> tag in the hbm.xml mapping file. So the PurchasedTest.hbm.xml will look like:

<?xml version="1.0"?>
<!DOCTYPE hibernate-mapping PUBLIC
  "-//Hibernate/Hibernate Mapping DTD 3.0//EN"
  "http://hibernate.sourceforge.net/hibernate-mapping-3.0.dtd">

<hibernate-mapping>
  <class name="entities.PurchasedTest" table="tests_purchased">

    <composite-id name="purchasedTestId">
      <key-property name="testId" column="TEST_ID" />
      <key-property name="customerId" column="CUSTOMER_ID" />
    </composite-id>

    <property name="purchaseDate" type="timestamp">
      <column name="created_date" />
    </property>

  </class>
</hibernate-mapping>

But it doesn't end here. In Hibernate we use session.load (entityClass, id_type_object) to find and load the entity using primary key. In case of composite keys, the ID object should be a separate ID class (in above case a PurchasedTestId class) which just declares the primary key attributes like below:

import java.io.Serializable;

public class PurchasedTestId implements Serializable {
  private Long testId;
  private Long customerId;

  // an easy initializing constructor
  public PurchasedTestId(Long testId, Long customerId) {
    this.testId = testId;
    this.customerId = customerId;
  }

  public Long getTestId() {
    return testId;
  }

  public void setTestId(Long testId) {
    this.testId = testId;
  }

  public Long getCustomerId() {
    return customerId;
  }

  public void setCustomerId(Long customerId) {
    this.customerId = customerId;
  }

  @Override
  public boolean equals(Object arg0) {
    if(arg0 == null) return false;
    if(!(arg0 instanceof PurchasedTestId)) return false;
    PurchasedTestId arg1 = (PurchasedTestId) arg0;
    return (this.testId.longValue() == arg1.getTestId().longValue()) &&
           (this.customerId.longValue() == arg1.getCustomerId().longValue());
  }

  @Override
  public int hashCode() {
    int hsCode;
    hsCode = testId.hashCode();
    hsCode = 19 * hsCode+ customerId.hashCode();
    return hsCode;
  }
}

Important point is that we also implement the two functions hashCode() and equals() as Hibernate relies on them.

score 3 · Answer 7 · edited May 01 '18 at 05:06

Using hbm.xml

    <composite-id>

        <!--<key-many-to-one name="productId" class="databaselayer.users.UserDB" column="user_name"/>-->
        <key-property name="productId" column="PRODUCT_Product_ID" type="int"/>
        <key-property name="categoryId" column="categories_id" type="int" />
    </composite-id>

Using Annotation

Composite Key Class

public  class PK implements Serializable{
    private int PRODUCT_Product_ID ;
    private int categories_id ;

    public PK(int productId, int categoryId) {
        this.PRODUCT_Product_ID = productId;
        this.categories_id = categoryId;
    }

    public int getPRODUCT_Product_ID() {
        return PRODUCT_Product_ID;
    }

    public void setPRODUCT_Product_ID(int PRODUCT_Product_ID) {
        this.PRODUCT_Product_ID = PRODUCT_Product_ID;
    }

    public int getCategories_id() {
        return categories_id;
    }

    public void setCategories_id(int categories_id) {
        this.categories_id = categories_id;
    }

    private PK() { }

    @Override
    public boolean equals(Object o) {
        if ( this == o ) {
            return true;
        }

        if ( o == null || getClass() != o.getClass() ) {
            return false;
        }

        PK pk = (PK) o;
        return Objects.equals(PRODUCT_Product_ID, pk.PRODUCT_Product_ID ) &&
                Objects.equals(categories_id, pk.categories_id );
    }

    @Override
    public int hashCode() {
        return Objects.hash(PRODUCT_Product_ID, categories_id );
    }
}

Entity Class

@Entity(name = "product_category")
@IdClass( PK.class )
public  class ProductCategory implements Serializable {
    @Id
    private int PRODUCT_Product_ID ;

    @Id
    private int categories_id ;

    public ProductCategory(int productId, int categoryId) {
        this.PRODUCT_Product_ID = productId ;
        this.categories_id = categoryId;
    }

    public ProductCategory() { }

    public int getPRODUCT_Product_ID() {
        return PRODUCT_Product_ID;
    }

    public void setPRODUCT_Product_ID(int PRODUCT_Product_ID) {
        this.PRODUCT_Product_ID = PRODUCT_Product_ID;
    }

    public int getCategories_id() {
        return categories_id;
    }

    public void setCategories_id(int categories_id) {
        this.categories_id = categories_id;
    }

    public void setId(PK id) {
        this.PRODUCT_Product_ID = id.getPRODUCT_Product_ID();
        this.categories_id = id.getCategories_id();
    }

    public PK getId() {
        return new PK(
            PRODUCT_Product_ID,
            categories_id
        );
    }
}

in title he says composite key, which doesn't have to be primary — Enerccio, Dec 15 '17 at 11:47
please check what he written sql **primary key (levelStation, confPathID)** — Mazen Embaby, Dec 15 '17 at 11:51

score 2 · Answer 8 · answered Aug 29 '10 at 11:33

Another option is to map is as a Map of composite elements in the ConfPath table.

This mapping would benefit from an index on (ConfPathID,levelStation) though.

public class ConfPath {
    private Map<Long,Time> timeForLevelStation = new HashMap<Long,Time>();

    public Time getTime(long levelStation) {
        return timeForLevelStation.get(levelStation);
    }

    public void putTime(long levelStation, Time newValue) {
        timeForLevelStation.put(levelStation, newValue);
    }
}

public class Time {
    String src;
    String dst;
    long distance;
    long price;

    public long getDistance() {
        return distance;
    }

    public void setDistance(long distance) {
        this.distance = distance;
    }

    public String getDst() {
        return dst;
    }

    public void setDst(String dst) {
        this.dst = dst;
    }

    public long getPrice() {
        return price;
    }

    public void setPrice(long price) {
        this.price = price;
    }

    public String getSrc() {
        return src;
    }

    public void setSrc(String src) {
        this.src = src;
    }
}

Mapping:

<class name="ConfPath" table="ConfPath">
    <id column="ID" name="id">
        <generator class="native"/>
    </id>
    <map cascade="all-delete-orphan" name="values" table="example"
            lazy="extra">
        <key column="ConfPathID"/>
        <map-key type="long" column="levelStation"/>
        <composite-element class="Time">
            <property name="src" column="src" type="string" length="100"/>
            <property name="dst" column="dst" type="string" length="100"/>
            <property name="distance" column="distance"/>
            <property name="price" column="price"/>
        </composite-element>
    </map>
</class>

How to map a composite key with JPA and Hibernate?

8 Answers8

2.1.4 Primary Keys and Entity Identity

With an `IdClass`

With `EmbeddedId`

Differences:

References

Linked

How to map a composite key with JPA and Hibernate?

8 Answers8

2.1.4 Primary Keys and Entity Identity

With an IdClass

With EmbeddedId

Differences:

References

Linked

With an `IdClass`

With `EmbeddedId`
