Columns in ListView Android

Question

How can I make columns in Android ListView? I have this list item layout xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="fill_parent" android:layout_height="fill_parent"
    android:orientation="horizontal">
    <TextView android:layout_weight=".3" android:layout_width="wrap_content"
        android:layout_height="fill_parent" android:id="@+id/hour"
        android:gravity="center" />
    <ImageView android:id="@+id/symbol" android:scaleType="fitCenter"
        android:layout_gravity="center_horizontal" android:layout_width="wrap_content"
        android:layout_height="wrap_content" android:layout_weight=".5" />
    <TextView android:layout_weight=".8" android:layout_width="wrap_content"
        android:layout_height="fill_parent" android:id="@+id/temperature"
        android:gravity="center" />
    <TextView android:layout_weight="1" android:layout_width="wrap_content"
        android:layout_height="fill_parent" android:id="@+id/percipitation"
        android:gravity="center" />
    <TextView android:layout_weight="1" android:layout_width="wrap_content"
        android:layout_height="fill_parent" android:id="@+id/wind_speed"
        android:gravity="center" />
    <TextView android:layout_weight="1" android:layout_width="wrap_content"
        android:layout_height="fill_parent" android:id="@+id/wind_direction"
        android:gravity="center" />
</LinearLayout>

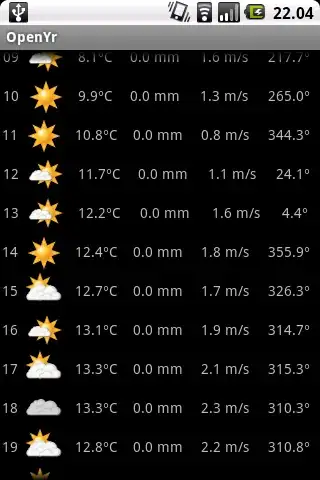

The problem is when the f.ex. wind_direction change from "4" to "300", then the columns are not aligned.

Who can this be made with fixed width of columns and using the whole width independent of devices?

score 7 · Answer 1 · answered Jul 16 '12 at 16:37

You can use layout_weight in conjuntion with layout_width of 0 like this in your item layout xml:

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:id="@+id/relativeLayout1"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent" >

    <TextView
         android:id="@+id/text1"
         android:layout_width="0dp"
         android:layout_height="wrap_content"
         android:layout_weight="1"/>

    <TextView
         android:id="@+id/text2"
         android:layout_width="0dp"
         android:layout_height="wrap_content"
         android:layout_weight="2"/>
</LinearLayout>

Essentially the layout_width of 0dp forces all the text views to have no width. Since spare width in the linear layout is dished out according the layout_weight after the width of the text views has been determined you start with an even playing field among the text boxes who all have the same width (0). Without the 0 width, the text boxes start off at different widths and adding extra space (via the layout_weight) still leaves the text boxes different width.

score 3 · Accepted Answer · edited Aug 27 '16 at 16:57

3

Consider using a TableLayout instead of a ListView. This is designed to have rows and columns. See Hello TableLayout.

To add rows programatically, you can inflate the TableRow and call addView on the TableLayout.

edited Aug 27 '16 at 16:57

Chris Reyes - he-him

471
4
15

answered Aug 31 '10 at 20:26

Cheryl Simon

46,552
15
93
82

score 2 · Answer 3 · edited May 23 '17 at 12:33

2

You could do one of these instead of wrap_content on the TextViews:

android:layout_width="40dip"

the above sets the density-independent width, or

android:layout_weight="2"

which you can use to set the percentage width on each text view.

Also see this post and the link: What is the difference between "px", "dp", "dip" and "sp" on Android?

edited May 23 '17 at 12:33

Community

1
1

answered Sep 24 '11 at 20:16

eonor

37
5

score 1 · Answer 4 · answered Jan 25 '13 at 16:56

If you have lots of data to display, do not use TableLayout. The performance and the memory consumption is horrendous. It could take many seconds for your data to be displayed and you will get the Choreographer error that your app is doing too much processing in the UI thread

score 1 · Answer 5 · answered Sep 05 '10 at 16:58

1

Incorporate both. Try using TableLayout instead of LinearLayout for the list item wrapper. I think I saw that work somewhere once. Never tried it myself.

http://www.vbsteven.be/blog/using-the-simpleadapter-with-a-listview-in-android/

answered Sep 05 '10 at 16:58

quaintdesigns

11
1
