TextBox sizing inside ScrollView with horizontal scroll

Question

I have a problem with the TextBox control. Be aware of the ScrollViewer as this makes the difference.

Here is my xaml:

<Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
    <ScrollViewer HorizontalScrollMode="Auto" HorizontalScrollBarVisibility="Auto">
        <TextBox HorizontalAlignment="Stretch"
                 VerticalAlignment="Center"
                 Margin="20"
                 Text = "A short text">
        </TextBox>
    </ScrollViewer>
</Grid>

It results in this:

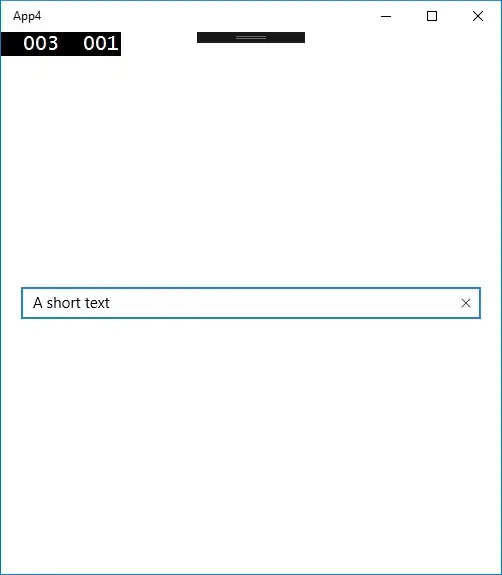

Result with short text

It looks like expected and it expends/shrinks nicely if the window is resized. So far so good, but what happens if the text is a bit longer?

This happens:

Result with longer text

The TextBox now grows to fit the text inside which is a) because there is a ScrollView that allows horizontal scrolling and b) results in a really ugly UI (as the right margin isn't visible, but a scrollbar is, etc..)

Does anybody know how I could achieve the look from the first screenshot even with the longer text (while keeping the ScrollViewer)?

I thought about setting a maximum width for the TextBox but it prevented the TextBox from growing with the window which isn't acceptable.

What's the reason for using a `ScrollViewer` if you don't want your content to scroll? — Bart, Aug 04 '16 at 07:33

score 1 · Answer 1 · answered Aug 04 '16 at 09:42

Change the MaxWidth property of the TextBox as you resize the window would solve your problem. Although, I don't think it's a clean way to do that.

    int margin = 40; // Set your margin

    public MainPage()
    {
        this.InitializeComponent();
        InputTextBox.MaxWidth = Window.Current.Bounds.Width - margin;
        Window.Current.SizeChanged += Current_SizeChanged;
    }

    private void Current_SizeChanged(object sender, Windows.UI.Core.WindowSizeChangedEventArgs e)
    {
        var size = e.Size;
        InputTextBox.MaxWidth = size.Width - margin;
    }

score 1 · Accepted Answer · answered Aug 05 '16 at 08:34

I think you may confused the Width or ActualWidth of ScrollViewer with its ScrollableWidth, if you don't limit the width of TextBox, the ScrollableWidth will grow up with the width of TextBox. Limit the width of the TextBox won't solve your problem.

...the right margin isn't visible, but a scrollbar is..

I guess what you need is something like this:

xaml code:

<ScrollViewer Margin="20" BorderBrush="Blue" BorderThickness="2"
              HorizontalScrollMode="Auto" HorizontalScrollBarVisibility="Auto"
              VerticalScrollBarVisibility="Hidden" VerticalScrollMode="Disabled" Height="45">
    <TextBox x:Name="tb"  HorizontalAlignment="Stretch" VerticalAlignment="Center"
             BorderThickness="0"/>
</ScrollViewer>

You can customize the ScrollViewer to make it behavior like a TextBox, for example when got focus, the Border will be shown or something others.

I think this is a pretty nice idea – Felix Aug 08 '16 at 06:56 — Felix, Aug 08 '16 at 06:56

Dark Templar · Answer 3 · 2016-08-04T17:38:14.957

Try setting the Padding property on your scrollviewer instead of Margin, try this

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">">
        <ScrollViewer  HorizontalScrollBarVisibility="Auto" Padding="20,0">
            <TextBox HorizontalAlignment="Stretch"
             VerticalAlignment="Center"
             Margin="20"
             Text = "A short text">
            </TextBox>
        </ScrollViewer>
    </Grid>
