how to make a bar plot for character value with percent format by ggplot2

Question

I would like to make a bar plot with percent format. here is my data set:

https://drive.google.com/file/d/1xpRqQwzKFuirpKYKcoi1qVYSaiA-D5WX/view?usp=sharing

load('test.Robj')

Here is my part of data looks like:

                     res.1.2 branch
AAACCTGCACCAGGCT       0      1
AAACCTGGTCATATGC       7      4
AAACCTGGTTAGTGGG      15     NA
AAACCTGTCCACGCAG       1     NA
AAACCTGTCCACGTTC      17      2
AAACGGGCACCGAATT       0      1

I tried to use this code to plot:

ggplot(test,aes(x = branch, y =factor(1),fill = res.1.2)) +
  geom_bar(position = "fill",stat = "identity")+
  scale_y_discrete(labels =scales::percent)

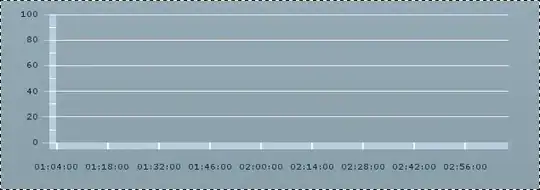

I want to make my y axis as percent of counts of res.1.2 in total(stacked bar chart, or similar to a pie chart), quite similar to this issue but I got this:

Any suggestion?

Possible duplicate of [Show % instead of counts in charts of categorical variables](https://stackoverflow.com/questions/3695497/show-instead-of-counts-in-charts-of-categorical-variables) — Rich Pauloo, Mar 26 '18 at 04:17
I tried scale_y_continuous or scale_y_discrete, but it seems not to be working on character format. — MichaelXu, Mar 26 '18 at 04:21
This: `y =factor(1)` looks suspicious. (The graph doesn't look like what I would expect from that data so I'm not making any efforts at coding.) — IRTFM, Mar 26 '18 at 05:04
Please [edit] your question and post the result of `dput(test)`. Without, it will be difficult to track down the issue. Thank you. — Uwe, Mar 26 '18 at 05:10
@Uwe, you are amazing! why did you delete your post? it works for me ! Really appreciate your help! It seems as.integer(res.1.2) helps, can you explain that a little? — MichaelXu, Mar 26 '18 at 06:02
@MichaelXu I deleted my post because I was not sure if I had understood your question correctly. Now, I have undeleted my answer and have added an alternative solution. — Uwe, Mar 26 '18 at 06:13

Uwe · Accepted Answer · 2018-03-26T06:09:11.557

If I understand correctly, the OP wants to plot the values of res.1.2 which are of type character. So, res.1.2 needs to be coerced to integer for plotting:

# load OP's data
load('test.Robj')
# create plot
library(ggplot2)
ggplot(test,aes(x = branch, y = as.integer(res.1.2), fill = res.1.2)) +
  geom_bar(position = "fill",stat = "identity") +
  scale_y_continuous(labels = scales::percent)

However, if the OP intends to show the number of occurrences of each value of res.1.2 as share of total within each branch, the code is as follows:

# load OP's data
load('test.Robj')
# create plot
library(ggplot2)
ggplot(test, aes(x = branch, fill = res.1.2)) +
  geom_bar(position = "fill") +
  scale_y_continuous(labels = scales::percent)

The chart shows the counts of res.1.2 as percentage for each branch

really detailed and thorough, you are right ,I am using the 'occurrences ' rather than 'value'! — MichaelXu, Mar 26 '18 at 06:16
