drawing a checkbox in a TListView

Question

I need to draw a checkbox in a particular column in aTListView, so i check this question How can I setup TListView with CheckBoxes in only certain columns? and in the accepted answer suggest use the method described in this another question How to set a Checkbox TStringGrid in Delphi?, now porting that code to work with a ListView i come with this :

procedure TForm15.ListView1CustomDrawSubItem(Sender: TCustomListView; Item: TListItem; SubItem: Integer; State: TCustomDrawState; var DefaultDraw: Boolean);
const
  PADDING = 4;
var
  h    : HTHEME;
  s    : TSize;
  r    : TRect;
  Rect : TRect;
  i    : Integer;
  Dx   : Integer;
begin
  if (SubItem=1) then
  begin
    DefaultDraw:=True;
    Rect  :=Item.DisplayRect(drBounds);
    Dx:=0;

    for i := 0 to SubItem do
    Inc(Dx,Sender.Column[i].Width);
    Rect.Left  :=Rect.Left+Dx;

    Rect.Right :=Rect.Left+Sender.Column[SubItem+1].Width;

    FillRect(Sender.Canvas.Handle, Rect, GetStockObject(WHITE_BRUSH));
    s.cx := GetSystemMetrics(SM_CXMENUCHECK);
    s.cy := GetSystemMetrics(SM_CYMENUCHECK);
    if UseThemes then
    begin
      h := OpenThemeData(Sender.Handle, 'BUTTON');
      if h <> 0 then
        try
          GetThemePartSize(h, Sender.Canvas.Handle, BP_CHECKBOX, CBS_CHECKEDNORMAL, nil, TS_DRAW, s);
          r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - s.cy) div 2;
          r.Bottom := r.Top + s.cy;
          r.Left   := Rect.Left + PADDING;
          r.Right  := r.Left + s.cx;
          DrawThemeBackground(h, Sender.Canvas.Handle, BP_CHECKBOX, IfThen(CompareText(Item.SubItems[1],'True')=0, CBS_CHECKEDNORMAL, CBS_UNCHECKEDNORMAL), r, nil);
        finally
          CloseThemeData(h);
        end;
    end
    else
    begin
      r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - s.cy) div 2;
      r.Bottom := r.Top + s.cy;
      r.Left   := Rect.Left + PADDING;
      r.Right  := r.Left + s.cx;
      DrawFrameControl(Sender.Canvas.Handle, r, DFC_BUTTON, IfThen(CompareText(Item.SubItems[1],'True')=0, DFCS_CHECKED, DFCS_BUTTONCHECK));
    end;
   //r := Classes.Rect(r.Right + PADDING, Rect.Top, Rect.Right, Rect.Bottom);
   // DrawText(Sender.Canvas.Handle,   StringGrid1.Cells[ACol, ARow], length(StringGrid1.Cells[ACol, ARow]),  r, DT_SINGLELINE or DT_VCENTER or DT_LEFT or DT_END_ELLIPSIS);
  end
  else
  DefaultDraw:=False;
end;

but i fail miserably in my attempt to draw a checkbox :(, can someone point me in the right direction to draw the checkbox in the listview, (the code does not draw any checkbox in the listview).

The listview is in vsReport mode and had 3 columns, i want put the checkbox in the third column. please don't suggest which use a thrid party component, i want use the TlistView control.

UPDATE 1 : thanks to the sertac recomendattion setting the DefaultDraw value now the checkboxes are shown, but the another columns looks awfull.

enter image description here

UPDATE 2 , following the Andreas suggestions the listview now look better, but still shown the black box;

enter image description here

procedure TForm15.ListView1CustomDrawSubItem(Sender: TCustomListView; Item: TListItem; SubItem: Integer; State: TCustomDrawState; var DefaultDraw: Boolean);
var
  h    : HTHEME;
  s    : TSize;
  r    : TRect;
  Rect : TRect;
  i    : Integer;
  Dx   : Integer;
begin
  if (SubItem=2) then
  begin
    DefaultDraw:=False;
    Rect  :=Item.DisplayRect(drBounds);

    Dx:=0;
    for i := 0 to SubItem-1 do
      Inc(Dx,Sender.Column[i].Width);

    Rect.Left  :=Rect.Left+Dx;
    Rect.Right :=Rect.Left+Sender.Column[SubItem].Width;
    FillRect(Sender.Canvas.Handle, Rect, GetStockObject(WHITE_BRUSH));
    s.cx := GetSystemMetrics(SM_CXMENUCHECK);
    s.cy := GetSystemMetrics(SM_CYMENUCHECK);
    Dx   := (Sender.Column[SubItem].Width-GetSystemMetrics(SM_CXMENUCHECK)) div 2;
    if UseThemes then
    begin
      h := OpenThemeData(Sender.Handle, 'BUTTON');
      if h <> 0 then
        try
          GetThemePartSize(h, Sender.Canvas.Handle, BP_CHECKBOX, CBS_CHECKEDNORMAL, nil, TS_DRAW, s);
          r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - s.cy) div 2;
          r.Bottom := r.Top + s.cy;
          r.Left   := Rect.Left + Dx;
          r.Right  := r.Left + s.cx;
          DrawThemeBackground(h, Sender.Canvas.Handle, BP_CHECKBOX, IfThen(CompareText(Item.SubItems[SubItem-1],'True')=0, CBS_CHECKEDNORMAL, CBS_UNCHECKEDNORMAL), r, nil);
        finally
          CloseThemeData(h);
        end;
    end
    else
    begin
      r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - s.cy) div 2;
      r.Bottom := r.Top + s.cy;
      r.Left   := Rect.Left + Dx;
      r.Right  := r.Left + s.cx;
      DrawFrameControl(Sender.Canvas.Handle, r, DFC_BUTTON, IfThen(CompareText(Item.SubItems[SubItem-1],'True')=0, DFCS_CHECKED, DFCS_BUTTONCHECK));
    end;
  end;
end;

You're not setting 'DefaultDraw' to false, your boxes are probably over-drawn by the VCL. — Sertac Akyuz, Apr 01 '11 at 23:20

Andreas Rejbrand · Accepted Answer · 2019-07-30T11:00:09.753

One relatively simple way to get rid of this bug is to owner-draw the entire item. Set OwnerDraw := true, remove your OnCustomDrawSubItem routine, and add

procedure TForm15.ListView1DrawItem(Sender: TCustomListView; Item: TListItem;
  Rect: TRect; State: TOwnerDrawState);

  function ShrinkRect(const r: TRect; const X0, X1, Y0, Y1: integer): TRect; inline;
  begin
    result := r;
    inc(result.Left, X0);
    inc(result.Top, Y0);
    dec(result.Right, X1);
    dec(result.Bottom, Y1);
  end;

const
  CHECK_COL = 2;
  PADDING = 4;
var
  r: TRect;
  i: Integer;
  s: string;
  size: TSize;
  h: HTHEME;
begin

  FillRect(Sender.Canvas.Handle, Rect, GetStockObject(WHITE_BRUSH));
  r := Rect;
  inc(r.Left, PADDING);
  for i := 0 to TListView(Sender).Columns.Count - 1 do
  begin
    r.Right := r.Left + Sender.Column[i].Width;
    if i <> CHECK_COL then
    begin
      if i = 0 then
      begin
        s := Item.Caption;
        if not IsWindowVisible(ListView_GetEditControl(Sender.Handle)) then
        begin
          if UseThemes and ([odSelected, odHotLight] * State <> []) then
          begin
            h := OpenThemeData(Sender.Handle, 'LISTVIEW');
            if h <> 0 then
              try
                DrawThemeBackground(h, Sender.Canvas.Handle, LVP_GROUPHEADER, IfThen(odSelected in State, LVGH_CLOSESELECTED, LVGH_OPENHOT), ShrinkRect(r, -2, 6, 1, 1), nil);
              finally
                CloseThemeData(h);
              end;
          end;
          if (odSelected in State) and not UseThemes then
            DrawFocusRect(Sender.Canvas.Handle, ShrinkRect(r, -2, 6, 1, 1));
        end;
      end
      else
        s := Item.SubItems[i - 1];
      Sender.Canvas.Brush.Style := bsClear;
      DrawText(Sender.Canvas.Handle,
        PChar(s),
        length(s),
        r,
        DT_SINGLELINE or DT_VCENTER or DT_LEFT or DT_END_ELLIPSIS);
    end
    else
    begin

      size.cx := GetSystemMetrics(SM_CXMENUCHECK);
      size.cy := GetSystemMetrics(SM_CYMENUCHECK);
      if UseThemes then
      begin
        h := OpenThemeData(Sender.Handle, 'BUTTON');
        if h <> 0 then
          try
            GetThemePartSize(h, Sender.Canvas.Handle, BP_CHECKBOX, CBS_CHECKEDNORMAL, nil, TS_DRAW, size);
            r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - size.cy) div 2;
            r.Bottom := r.Top + size.cy;
            r.Left   := r.Left + PADDING;
            r.Right  := r.Left + size.cx;
            DrawThemeBackground(h, Sender.Canvas.Handle, BP_CHECKBOX, IfThen(CompareText(Item.SubItems[1],'True')=0, CBS_CHECKEDNORMAL, CBS_UNCHECKEDNORMAL), r, nil);
          finally
            CloseThemeData(h);
          end;
      end
      else
      begin
        r.Top    := Rect.Top + (Rect.Bottom - Rect.Top - size.cy) div 2;
        r.Bottom := r.Top + size.cy;
        r.Left   := r.Left + PADDING;
        r.Right  := r.Left + size.cx;
        DrawFrameControl(Sender.Canvas.Handle, r, DFC_BUTTON, IfThen(CompareText(Item.SubItems[1],'True')=0, DFCS_CHECKED, DFCS_BUTTONCHECK));
      end;

    end;
    inc(r.Left, Sender.Column[i].Width);
  end;

end;

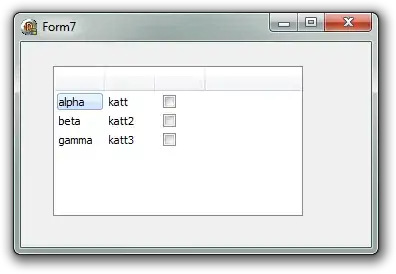

Sample usage

The code above needs further testing, but is probably in the right direction. Now it's very late, and I have to go.

score 0 · Answer 2 · answered Mar 22 '13 at 15:18

Without completely switching over to OwnerDraw, I found the following reasonably acceptable:

Don't populate the caption column (or use it for indexing) and set its initial width to 0
Put your labels in the first SubItem column (2nd column) and then the checkboxes
Use the CustomDrawSubItem routine to draw your labels using "TextOut", for example:

ListView1.Canvas.TextOut(2, y, 'My label');

This hides the black boxes and you can see your text labels. However the selection does not work over the text. Small price to pay though, in my opinion.

Andreas Rejbrand · Answer 3 · 2011-04-02T00:23:02.720

0

First, you should set DefaultDraw to false when drawing the checkbox column and true otherwise, because DefaultDraw means that the VCL does the drawing, and not you. Currently you do the opposite.

In addition, for some strange reason, the control considers the first sub item to be SubItem = 1, and the second sub item to SubItem = 2. Therefore, you should test if SubItem = 2 then instead.

[Of course, this implies the changes

for i := 0 to SubItem - 1 do
  Inc(Dx, Sender.Column[i].Width);

Rect.Right := Rect.Left+Sender.Column[SubItem].Width;

]

The black rectangles appear to be a bug somewhere in the union of the VCL and Win32 code.

edited Apr 02 '11 at 00:23

answered Apr 01 '11 at 23:57

Andreas Rejbrand

105,602
8
282
384

Thanks very much @Andreas. do you have an idea as remove the black box? – Salvador Apr 02 '11 at 00:41
@Salvador: No, I have no idea. It would probably work well to owner-draw the entire item, but that shouldn't be necessary... – Andreas Rejbrand Apr 02 '11 at 00:42
