Get connection string from App.config

Question

var connection = ConnectionFactory.GetConnection(
    ConfigurationManager.ConnectionStrings["Test"]
    .ConnectionString, DataBaseProvider);

And this is my App.config:

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
    <connectionStrings>
        <add name="Test" connectionString="Data Source=.;Initial Catalog=OmidPayamak;Integrated Security=True" providerName="System.Data.SqlClient" />
    </connectionStrings>
</configuration>

But when my project runs this is my error:

Object reference not set to an instance of an object.

Where did you put that App.config? Project of application you're running or maybe some dll? You need first — abatishchev, Jun 30 '11 at 15:02
Add a reference to System.Configuration.dll, and you should be able to use the System.Configuration.ConfigurationManager. — daszarrin, Jul 22 '13 at 10:27
Your connection string has a typo. You need a space between "Integrated" and "Security" — Onur Omer, Aug 23 '16 at 18:34
@OnurOmer - question has been updated to include the space ("Integrated Security" instead of "IntegratedSecurity") — SlimsGhost, Mar 14 '17 at 15:39

score 551 · Answer 1 · edited Feb 14 '22 at 22:10

551

You can just do the following:

var connection =
    System.Configuration.ConfigurationManager.
    ConnectionStrings["Test"].ConnectionString;

Your assembly also needs a reference to System.Configuration.dll

edited Feb 14 '22 at 22:10

Andrew

18,680
13
103
118

answered Jun 30 '11 at 20:58

Duffp

5,878
2
15
16

21

I know that this is a C# question, but since this is the top of the google search results, to do this in VB, it's `System.Configuration.ConfigurationManager.ConnectionStrings("Test").ConnectionString` for those of us who have to maintain VB code – jfa Feb 14 '17 at 16:43

score 318 · Answer 2 · edited Dec 19 '14 at 06:12

318

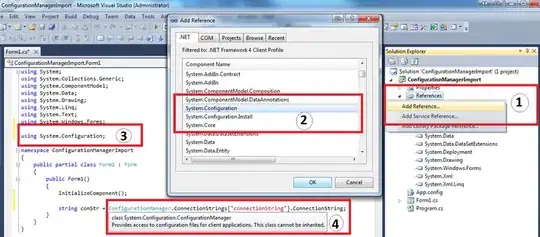

Since this is very common question I have prepared some screen shots from Visual Studio to make it easy to follow in 4 simple steps.

get connection string from app.config

edited Dec 19 '14 at 06:12

Mehrad

4,093
4
43
61

answered Mar 20 '13 at 17:44

Fredrick Gauss

5,126
1
28
44

26

Love this answer. By default in my version of VS (VS2012 Ultimate) this library is not included, but `using System.Configuration` still works – David Colwell Jul 12 '13 at 04:04
4

I really HAD TO add the reference or the using was not underlined but still ConfigurationManager unknown. Thanks! – CodingYourLife Dec 13 '17 at 15:09

score 36 · Answer 3 · edited Nov 17 '15 at 20:29

36

string str = Properties.Settings.Default.myConnectionString;

edited Nov 17 '15 at 20:29

Celeo

5,583
8
39
41

answered Oct 03 '13 at 11:38

gjijo

1,206
12
15

2

What if app.config is added as a link to a project ? – FrenkyB Apr 08 '15 at 19:50
4

This will only work if your connection string is an app setting, it will not work if to retrieve `` elements from app.config (which is what the OP is asking for!). – BrainSlugs83 May 02 '18 at 19:52

score 33 · Answer 4 · answered Jul 19 '12 at 07:49

33

Also check that you've included the System.Configuration dll under your references. Without it, you won't have access to the ConfigurationManager class in the System.Configuration namespace.

answered Jul 19 '12 at 07:49

Carl Heinrich Hancke

2,660
1
30
35

score 31 · Answer 5 · edited Aug 12 '16 at 17:36

31

First Add a reference of System.Configuration to your page.

using System.Configuration;

Then According to your app.config get the connection string as follow.

string conStr = ConfigurationManager.ConnectionStrings["Test"].ToString();

That's it now you have your connection string in your hand and you can use it.

edited Aug 12 '16 at 17:36

John Smith

7,243
6
49
61

answered Jan 16 '14 at 06:51

Tapan kumar

6,719
1
24
25

score 17 · Answer 6 · edited Aug 29 '17 at 17:08

17

//Get Connection from web.config file
public static OdbcConnection getConnection()
{
    OdbcConnection con = new OdbcConnection();
    con.ConnectionString = System.Configuration.ConfigurationManager.ConnectionStrings["con"].ConnectionString;
    return con;
}

edited Aug 29 '17 at 17:08

Massimiliano Kraus

3,638
5
27
47

answered Apr 02 '15 at 07:56

Gobind Mandal

221
3
2

score 7 · Answer 7 · edited Aug 12 '16 at 17:36

7

Try this out

string abc = ConfigurationManager.ConnectionStrings["CharityManagement"].ConnectionString;

edited Aug 12 '16 at 17:36

John Smith

7,243
6
49
61

answered Apr 29 '14 at 07:05

vishu9219

761
6
14

score 4 · Answer 8 · edited Aug 29 '17 at 17:07

4

This worked for me:

string connection = System.Configuration.ConfigurationManager.ConnectionStrings["Test"].ConnectionString;

Outputs:

Data Source=.;Initial Catalog=OmidPayamak;IntegratedSecurity=True"

edited Aug 29 '17 at 17:07

Massimiliano Kraus

3,638
5
27
47

answered Feb 13 '17 at 07:45

Talha Imam

1,046
1
20
22

score 3 · Answer 9 · edited Aug 12 '16 at 17:37

1) Create a new form and add this:

Imports System.Configuration
Imports Operaciones.My.MySettings

Public NotInheritable Class frmconexion

    Private Shared _cnx As String
    Public Shared Property ConexionMySQL() As String
        Get
            Return My.MySettings.Default.conexionbd
        End Get
        Private Set(ByVal value As String)
            _cnx = value
        End Set
    End Property

End Class

then when you want to use the connection do this in ur form:

 Private Sub frmInsert_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

Dim cn As New MySqlConnection(frmconexion.ConexionMySQL)
cn.open()

and thats it. You will be connected to the DB and can do stuff.

This is for vb.net but the logic is the same.

score 3 · Answer 10 · edited May 23 '17 at 12:26

3

It is possible that the OP in this question is trying to use an App.Config within a dll.

In this case, the code is actually trying to access the App.Config of the executable and not the dll. Since the name is not found, you get a Null returned, hence the exception shown.

The following post may be helpful: ConnectionString from app.config of a DLL is null

edited May 23 '17 at 12:26

Community

1
1

answered Jun 29 '15 at 21:15

Andrew

702
7
24

score 3 · Answer 11 · answered Mar 29 '17 at 08:51

I had the same Issue. my solution was built up from two projects. A Class library and a website referencing to the class library project. the problem was that i was trying to access the App.config in my Class library project but the system was searching in Web.config of the website. I put the connection string inside Web.config and ... problem solved!

The main reason was that despite ConfigurationManager was used in another assembly it was searching inside the runnig project .

score 3 · Answer 12 · edited Mar 08 '17 at 10:22

3

Have you tried:

var connection = new ConnectionFactory().GetConnection(
    ConfigurationManager.ConnectionStrings["Test"]
    .ConnectionString, DataBaseProvider);

edited Mar 08 '17 at 10:22

niico

11,206
23
78
161

answered Jun 30 '11 at 15:24

Vlad Bezden

83,883
25
248
179

score 3 · Answer 13 · answered May 08 '21 at 21:47

The answers above didn't elaborate where the value in connectionStrings index comes from.

As mentioned above, to get your connection string, you say:

string conStr = ConfigurationManager.ConnectionStrings["XXX"].ToString();

To use the correct value of XXX, go to your main projects web.config file and look for the following piece of code:

<connectionStrings>
    <add name="Authentication" connectionString="Data Source=(LocalDb)\MSSQLLocalDB;Initial Catalog=Authentication;Integrated Security=SSPI;AttachDBFilename=|DataDirectory|\Authentication.mdf" providerName="System.Data.SqlClient" />
</connectionStrings>

Where it says name= , the text within those proceeding quotes is the value of XXX you use in the code above. In my example above, it happens to be Authentication

score 2 · Answer 14 · edited Dec 08 '12 at 12:22

2

string sTemp = System.Configuration.ConfigurationManager.ConnectionStrings["myDB In app.config"].ConnectionString;

edited Dec 08 '12 at 12:22

j0k

22,600
28
79
90

answered Dec 08 '12 at 12:04

khatami

21
1

score 2 · Answer 15 · answered Jan 09 '14 at 06:17

2

It seems like problem is not with reference, you are getting connectionstring as null so please make sure you have added the value to the config file your running project meaning the main program/library that gets started/executed first.

answered Jan 09 '14 at 06:17

Chandra Malla

2,399
22
12

score 2 · Answer 16 · edited Mar 14 '17 at 15:32

2

First you have to add System.Configuration reference to your project and then use below code to get connection string.

_connectionString = ConfigurationManager.ConnectionStrings["MYSQLConnection"].ConnectionString.ToString();

edited Mar 14 '17 at 15:32

Tasos K.

7,979
7
39
63

answered Mar 14 '17 at 15:26

Sagar Jaybhay

21
3

score 2 · Answer 17 · answered May 23 '20 at 21:28

2

You can use this method to get connection string

using System;
using System.Configuration;

private string GetConnectionString()
{
    return ConfigurationManager.ConnectionStrings["MyContext"].ConnectionString;
}

answered May 23 '20 at 21:28

Hidayet R. Colkusu

380
6
15

score 1 · Answer 18 · answered Oct 17 '13 at 08:45

1

You can fetch the connection string by using below line of code -

using System; using System.Configuration;

var connectionString=ConfigurationManager.ConnectionStrings["MyConnectionString"].ConnectionString;

Here is a reference : Connection String from App.config

answered Oct 17 '13 at 08:45

somesh

3,508
4
16
10

2

I did the same as u said but same null reference error I am getting. – Amit Sinha Sep 13 '16 at 18:41

score 1 · Answer 19 · edited Aug 12 '16 at 17:37

1

I referenced System.Configuration library and I have the same error. The debug files had not their app.config, create manually this file. The error is, I solved this copying the file "appname.exe.config" in debug folder. The IDE was not create the file.

edited Aug 12 '16 at 17:37

John Smith

7,243
6
49
61

answered Jun 16 '15 at 18:20

jjcaicedo

11
1

score 1 · Answer 20 · answered Oct 26 '17 at 07:37

I solved the problem by using the index to read the string and checking one by one. Reading using the name still gives the same error.
I have the problem when I develop a C# window application, I did not have the problem in my asp.net application. There must be something in the setting which is not right.

score 1 · Answer 21 · edited Mar 10 '21 at 08:44

In order to read the connection string from app.cfg (in windows service application) the below code worked for me

 var config = ConfigurationManager.OpenExeConfiguration(ConfigurationUserLevel.None);
    var connectionStringsSection = (ConnectionStringsSection)config.GetSection("connectionStrings");
    connectionStringsSection.ConnectionStrings["CONNECTIONSTR"].ConnectionString = @"New Connection String";

score 1 · Answer 22 · answered Jun 09 '21 at 07:33

Encountered this issue while placing ConfigurationManager.ConnectionStrings in UserControl's constructor, and none of the solution here worked for me.

After some research, seems like ConfigurationManager.ConnectionStrings would be null while trying to access it from the DesignTime.

And from this post, I came up with this following code to detect DesignTime as a workaround to the issue:

public class MyUserControl : UserControl
{
    ....
    public MyUserControl ()
    {
        InitializeComponent();

        bool designMode = (LicenseManager.UsageMode == LicenseUsageMode.Designtime);
        if (!designMode)
        {
            this.connectionString =
                ConfigurationManager.ConnectionStrings["xxx"].ConnectionString;
        }
    }
}
