Serialize ObservableCollection-like class ObservableList in Unity C#

Question

Since there is no support for serializing ObservableCollection of C# in Unity as of yet, I am using a script which extends List<> and creates a Serializable class called ObservableList as mentioned in this unity forum answer ObservableList. Following is the same code:

[Serializable]
 public class ObservedList<T> : List<T>
 {
     public event Action<int> Changed = delegate { };
     public event Action Updated = delegate { };
     public new void Add(T item)
     {
         base.Add(item);
         Updated();
     }
     public new void Remove(T item)
     {
         base.Remove(item);
         Updated();
     }
     public new void AddRange(IEnumerable<T> collection)
     {
         base.AddRange(collection);
         Updated();
     }
     public new void RemoveRange(int index, int count)
     {
         base.RemoveRange(index, count);
         Updated();
     }
     public new void Clear()
     {
         base.Clear();
         Updated();
     }
     public new void Insert(int index, T item)
     {
         base.Insert(index, item);
         Updated();
     }
     public new void InsertRange(int index, IEnumerable<T> collection)
     {
         base.InsertRange(index, collection);
         Updated();
     }
     public new void RemoveAll(Predicate<T> match)
     {
         base.RemoveAll(match);
         Updated();
     }


     public new T this[int index]
     {
         get
         {
             return base[index];
         }
         set
         {
             base[index] = value;
             Changed(index);
         }
     }
 }

Still it is not being serialized and I cannot see it in Unity editor. Any help would be greatly appreciated!

EDIT #1

Intended Use case:

public class Initialize : MonoBehaviour
{
    public ObservedList<int> percentageSlider = new ObservedList<int>();

    void Start()
    {
        percentageSlider.Changed += ValueUpdateHandler;
    }

    void Update()
    {
    }

    private void ValueUpdateHandler(int index)
    {
        // Some index specific action
        Debug.Log($"{index} was updated");
    }
}

I am attaching this script as a component to a GameObject so that I can input the size of this list, play around with the values (just like I can do with List) and perform some action which only gets fired when some value inside the ObservableList is updated.

What I want to see

What I am seeing

Answer 1

1. If you want the actions to be serialized then you'll have to use UnityEvents (which hook into Unity's serialized event system).

2. Make sure you're using the [SerializedField] attribute before all the types you want serialized.

3. The main problem is likely stemming from inheritance, which does not play well with Unity's serialization system. In general, I would never inherit from List anyways (here are some reasons why) Instead I would make your observable type a wrapper for List with some added features (List would be a member within Observable).

Edit 1

Added a tested code example. Instead of inheriting, an ObservedList<T> acts as wrapper for List<T>. You'll be able to subscribe to the Changed and Updated events, but they're not serialized. If you want to access any other list functionality, you'll just have to add a public method in the ObservedList<t> class which acts as its wrapper. Let me know if you have any other issues.

[Serializable]
public class ObservedList<T>
{
    public event Action<int> Changed;
    public event Action Updated;
    [SerializeField] private List<T> _value;

    public T this[int index]
    {
        get
        {
            return _value[index];
        }
        set
        {
            //you might want to add a check here to only call changed
            //if _value[index] != value
            _value[index] = value;
            Changed?.Invoke(index);
        }
    }

    public void Add(T item)
    {
        _value.Add(item);
        Updated?.Invoke();
    }
    public void Remove(T item)
    {
        _value.Remove(item);
        Updated?.Invoke();
    }
    public void AddRange(IEnumerable<T> collection)
    {
        _value.AddRange(collection);
        Updated?.Invoke();
    }
    public void RemoveRange(int index, int count)
    {
        _value.RemoveRange(index, count);
        Updated?.Invoke();
    }
    public void Clear()
    {
        _value.Clear();
        Updated?.Invoke();
    }
    public void Insert(int index, T item)
    {
        _value.Insert(index, item);
        Updated?.Invoke();
    }
    public void InsertRange(int index, IEnumerable<T> collection)
    {
        _value.InsertRange(index, collection);
        Updated?.Invoke();
    }
    public void RemoveAll(Predicate<T> match)
    {
        _value.RemoveAll(match);
        Updated?.Invoke();
    }
}

Answer 2

So here is what I did

Instead of inheriting from the List<T> and trying to fix the Inspector somehow with editor scripting you could simply use a "backend" List<T> for which Unity already provides a serialization and let your class implement IList<T> like e.g.

[Serializable]
public class ObservedList<T> : IList<T>
{
    public delegate void ChangedDelegate(int index, T oldValue, T newValue);

    [SerializeField] private List<T> _list = new List<T>();

    // NOTE: I changed the signature to provide a bit more information
    // now it returns index, oldValue, newValue
    public event ChangedDelegate Changed;

    public event Action Updated;

    public IEnumerator<T> GetEnumerator()
    {
        return _list.GetEnumerator();
    }

    IEnumerator IEnumerable.GetEnumerator()
    {
        return GetEnumerator();
    }

    public void Add(T item)
    {
        _list.Add(item);
        Updated?.Invoke();
    }

    public void Clear()
    {
        _list.Clear();
        Updated?.Invoke();
    }

    public bool Contains(T item)
    {
        return _list.Contains(item);
    }

    public void CopyTo(T[] array, int arrayIndex)
    {
        _list.CopyTo(array, arrayIndex);
    }

    public bool Remove(T item)
    {
        var output = _list.Remove(item);
        Updated?.Invoke();

        return output;
    }

    public int Count => _list.Count;
    public bool IsReadOnly => false;

    public int IndexOf(T item)
    {
        return _list.IndexOf(item);
    }

    public void Insert(int index, T item)
    {
        _list.Insert(index, item);
        Updated?.Invoke();
    }

    public void RemoveAt(int index)
    {
        _list.RemoveAt(index);
        Updated?.Invoke();
    }

    public void AddRange(IEnumerable<T> collection)
    {
        _list.AddRange( collection);
        Updated?.Invoke();
    }

    public void RemoveAll(Predicate<T> predicate)
    {
        _list.RemoveAll(predicate);
        Updated?.Invoke();
    }

    public void InsertRange(int index, IEnumerable<T> collection)
    {
        _list.InsertRange(index, collection);
        Updated?.Invoke();
    }

    public void RemoveRange(int index, int count)
    {
        _list.RemoveRange(index, count);
        Updated?.Invoke();
    }

    public T this[int index]
    {
        get { return _list[index]; }
        set
        {
            var oldValue = _list[index];
            _list[index] = value;
            Changed?.Invoke(index, oldValue, value);
            // I would also call the generic one here
            Updated?.Invoke();
        }
    }
}

In the usage from code absolutely nothing changes (except as mentioned the one signature of the event):

public class Example : MonoBehaviour
{
    public ObservedList<int> percentageSlider = new ObservedList<int>();

    private void Start()
    {
        percentageSlider.Changed += ValueUpdateHandler;

        // Just as an example
        percentageSlider[3] = 42;
    }

    private void ValueUpdateHandler(int index, int oldValue, int newValue)
    {
        // Some index specific action
        Debug.Log($"Element at index {index} was updated from {oldValue} to {newValue}");
    }
}

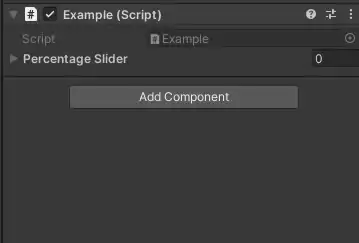

But the Inspector now looks like this

---

Then if you really need to because you hate how it looks like in the editor ^^ You could use a bit of a dirty hack and overwrite it like

Have a non-generic base class because custom editors don't work with generics

public abstract class ObservedList { }

Then inherit from that

[Serializable]
public class ObservedList<T> : ObservedList, IList<T>
{
   ...
}

Then we can implement a custom drawer actually providing the base type but it will be applied to the inheritor

[CustomPropertyDrawer(typeof(ObservedList), true)]
public class ObservedListDrawer : PropertyDrawer
{
    public override void OnGUI(Rect position, SerializedProperty property, GUIContent label)
    {
        // NOTE: Now here is the dirty hack
        // even though the ObservedList itself doesn't have that property
        // we can still look for the field called "_list" which only the
        // ObservedList<T> has
        var list = property.FindPropertyRelative("_list");
        EditorGUI.PropertyField(position, list, label, true);
    }

    public override float GetPropertyHeight(SerializedProperty property, GUIContent label)
    {
        var list = property.FindPropertyRelative("_list");

        return EditorGUI.GetPropertyHeight(list, label, true);
    }
}

Now it looks like this

---

Unity 2019 and older

In Unity 2019 and older the serialization of generics wasn't supported at all.

In Script Serialization 2020 this was added:

Generic field types can also be directly serialized, without the need to declare a non-generic subclass.

this is not the case in Script Serialization 2019 and older.

So here you would need to have explicit implementations like

[Serializable]
public class ObservedListInt : ObservedList<int>{ }

public class Example : MonoBehaviour
{
    public ObservedListInt percentageSlider = new ObservedListInt();

    private void Start()
    {
        percentageSlider.Changed += ValueUpdateHandler;

        // Just as an example
        percentageSlider[3] = 42;
    }

    private void ValueUpdateHandler(int index, int oldValue, int newValue)
    {
        // Some index specific action
        Debug.Log($"Element at index {index} was updated from {oldValue} to {newValue}");
    }
}

Without the custom drawer

With the custom drawer

Answer 3

I slightly modified @derHugo answer. I wanted to implement INotifyCollectionChanged interface like ObservableCollection does.

This code is not tested yet, but I'll try to edit this answer ASAP if any bug would be found.

using System;
using System.Collections;
using System.Collections.Generic;
using System.Collections.Specialized;
using UnityEngine;

public abstract class ObservableList
{
}

[Serializable]
public class ObservableList<T> : ObservableList, IList<T>, INotifyCollectionChanged
{
    public event NotifyCollectionChangedEventHandler CollectionChanged;

    [SerializeField] private List<T> _list = new List<T>();

    public IEnumerator<T> GetEnumerator()
    {
        return _list.GetEnumerator();
    }

    IEnumerator IEnumerable.GetEnumerator()
    {
        return GetEnumerator();
    }

    public void Add(T item)
    {
        _list.Add(item);

        OnCollectionChanged(NotifyCollectionChangedAction.Add, item, _list.Count - 1);
    }

    public void Clear()
    {
        _list.Clear();

        OnCollectionReset();
    }

    public bool Contains(T item)
    {
        return _list.Contains(item);
    }

    public void CopyTo(T[] array, int arrayIndex)
    {
        _list.CopyTo(array, arrayIndex);
    }

    public bool Remove(T item)
    {
        var itemIndex = _list.IndexOf(item);
        var doExist = itemIndex != -1;
        var didRemove = _list.Remove(item);
        if (doExist && didRemove)
        {
            OnCollectionChanged(NotifyCollectionChangedAction.Remove, item, itemIndex);
        }

        return didRemove;
    }

    public int Count => _list.Count;
    public bool IsReadOnly => false;

    public int IndexOf(T item)
    {
        return _list.IndexOf(item);
    }

    public void Insert(int index, T item)
    {
        _list.Insert(index, item);

        OnCollectionChanged(NotifyCollectionChangedAction.Add, item, index);
    }

    public void RemoveAt(int index)
    {
        _list.RemoveAt(index);

        var item = _list[index];

        OnCollectionChanged(NotifyCollectionChangedAction.Remove, item, index);
    }

    public void AddRange(IEnumerable<T> collection)
    {
        // _list.AddRange(collection);
        InsertRange(_list.Count, collection);
    }

    public void RemoveAll(Predicate<T> predicate)
    {
        // _list.RemoveAll(predicate);
        int index = 0;
        while (index < _list.Count)
        {
            if (predicate(_list[index]))
            {
                RemoveAt(index);
            }
            else
            {
                index++;
            }
        }
    }

    public void InsertRange(int index, IEnumerable<T> collection)
    {
        // _list.InsertRange(index, collection);
        foreach (var item in collection)
        {
            Insert(index, item);
            index++;
        }
    }

    public void RemoveRange(int index, int count)
    {
        // _list.RemoveRange(index, count);
        if (index < 0 || _list.Count < index + count - 1)
        {
            throw new ArgumentOutOfRangeException();
        }

        for (var i = 0; i < count; i++)
        {
            RemoveAt(index);
        }
    }

    public T this[int index]
    {
        get => _list[index];
        set
        {
            var oldValue = _list[index];
            _list[index] = value;

            OnCollectionChanged(NotifyCollectionChangedAction.Replace, oldValue, value, index);
        }
    }

    protected virtual void OnCollectionChanged(NotifyCollectionChangedEventArgs e)
    {
        CollectionChanged?.Invoke(this, e);
    }

    private void OnCollectionChanged(NotifyCollectionChangedAction action, object item, int index) =>
        OnCollectionChanged(new NotifyCollectionChangedEventArgs(action, item, index));

    private void OnCollectionChanged(NotifyCollectionChangedAction action, object item, int index, int oldIndex)
    {
        OnCollectionChanged(new NotifyCollectionChangedEventArgs(action, item, index, oldIndex));
    }

    private void OnCollectionChanged(NotifyCollectionChangedAction action, object oldItem, object newItem, int index)
    {
        OnCollectionChanged(new NotifyCollectionChangedEventArgs(action, newItem, oldItem, index));
    }

    private void OnCollectionReset() =>
        OnCollectionChanged(new NotifyCollectionChangedEventArgs(NotifyCollectionChangedAction.Reset));

    /// <summary>
    /// Not-LINQ lambda foreach
    /// </summary>
    public void ForEach(Action<T> action)
    {
        foreach (var cur in _list)
        {
            action(cur);
        }
    }
}
