UITextfield hidden behind keyboard

Question

I am building an app that contains a search or a UITextField and it is located at the bottom of the view near the safe area, so when I touch it and the keyboard pops up, the textfield gets hidden behind the keyboard.

How can I make it so when the keyboard pops up the Textfield moves right above it? Here is the code I have in the viewController.swift


class ViewController: UIViewController {

    @IBOutlet weak var windLabel: UILabel!
    @IBOutlet weak var cityLabel: UILabel!
    @IBOutlet weak var tempLabel: UILabel!
    @IBOutlet weak var searchCItyTextField: UITextField!
    override func viewDidLoad() {
        super.viewDidLoad()
        searchCItyTextField.delegate = self
    }
}
//MARK: - UITextFieldDelegate
extension UIViewController: UITextFieldDelegate {
    public func textFieldShouldReturn(_ textField: UITextField) -> Bool {
        self.view.endEditing(true)
        return true
    }
}

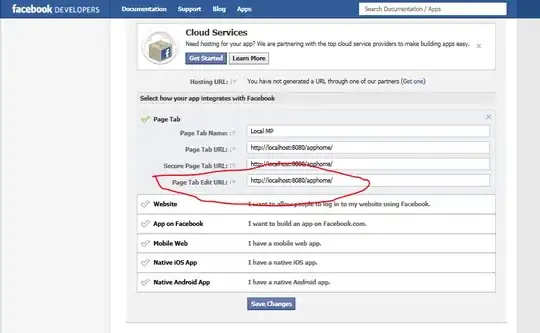

Here are the screenshots:

There are plenty of similar questions/answers, here is one of them: https://stackoverflow.com/questions/26070242/move-view-with-keyboard-using-swift — vpoltave, Dec 22 '21 at 15:41

score 0 · Answer 1 · answered Dec 22 '21 at 16:38

You can add an @IBOutlet for the bottom constraint of the text field and update this when the keyboard appears/disappears. For example, you set it to -30 from the bottom when there's no keyboard and update it to -keyboardHeight - 30 if the keyboard is present. See an example of how this can be done here.

Another method would be to move the whole view up, for example by using a UIScrollView, increasing its height when the keyboard is present and scroll up.

score 0 · Answer 2 · answered Dec 22 '21 at 18:19

You can observe for you keyboard appears or disappears, and updated your interface

For example:

@objc func kbDidShow(notification: Notification) {


        guard let userInfo = notification.userInfo else { return }

        let kbFrameSize = (userInfo[UIResponder.keyboardFrameEndUserInfoKey] as! NSValue).cgRectValue

        yourTextField.bottomAnchor.constraint(equalsTo: self.view.bottomAnchor, constant: kbFrameSize.height + 50).isActive = true

    }

@objc func kbDidHide() {

       yourTextField.bottomAnchor.constraint(equalsTo: self.view.bottomAnchor, constant: 50).isActive = true

    }

override func viewDidLoad() {
        super.viewDidLoad()

        NotificationCenter.default.addObserver(self, selector: #selector(kbDidShow), name: UIResponder.keyboardDidShowNotification, object: nil)
        NotificationCenter.default.addObserver(self, selector: #selector(kbDidHide), name: UIResponder.keyboardDidHideNotification, object: nil)


    }

Abishek Thangaraj · Accepted Answer · 2021-12-23T12:04:57.907

Use the IQKeyboardManager for scroll the UITextField when open the KeyBoard

For Example

In AppDelegate

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
    // Override point for customization after application launch.

    IQKeyboardManager.shared.enable = true
    return true
  }

In ViewController

class ViewController: UIViewController {

  lazy var textField: UITextField! = {

    let textField = UITextField()
    textField.translatesAutoresizingMaskIntoConstraints = false
    textField.borderStyle = .roundedRect
    textField.placeholder = "Enter"
    return textField

  }()

  override var preferredStatusBarStyle: UIStatusBarStyle{
    return .darkContent
  }

  override func viewDidLoad() {
    super.viewDidLoad()
    // Do any additional setup after loading the view.
    self.view.backgroundColor = .white
    self.setConstraint()

  }

  func setConstraint(){

    self.view.addSubview(self.textField)

    NSLayoutConstraint.activate([

      self.textField.heightAnchor.constraint(equalToConstant: 60),
      self.textField.widthAnchor.constraint(equalToConstant: UIScreen.main.bounds.width * 0.66),
      self.textField.centerXAnchor.constraint(equalTo: self.view.centerXAnchor),
      self.textField.bottomAnchor.constraint(equalTo: self.view.safeAreaLayoutGuide.bottomAnchor, constant: -10),

    ])

  }

}

Output:

While a 3rd-party class such as `IQKeyboardManager` *may* be useful, this doesn't answer the OP's question. — DonMag, Dec 22 '21 at 16:28
Hi @DonMag I suggest the IQKeyboardManager framework to him. its looks the framework is working fine for me. Please see the above my updated answer post. — Abishek Thangaraj, Dec 23 '21 at 12:09
Again, that *may* be useful, but it doesn't tell the OP anything about ***how*** to manage they keyboard. In addition, suppose development of `IQKeyboardManager` gets discontinued and is no longer available? Your suggestion would be completely appropriate for a **comment** - but it doesn't ***answer*** the question. — DonMag, Dec 23 '21 at 16:53
