plot data on stacked bar chart in ggplot2

Question

I have some problems with making a stacked bar chart in ggplot2.Here is my data look like:

   ID  Genus                          name    value
 1 JP  Dermatophagoides               GroupA  0.997
 2 JP  Dermatophagoides               GroupB  NA
 3 JP  Dermatophagoides evansi        GroupA  0.00259
 4 JP  Dermatophagoides evansi        GroupB  NA
 5 AM  Dermatophagoides farinae       GroupA  0.302
 6 AM  Dermatophagoides farinae       GroupB  0.303
 7 AM  Dermatopha microceras          GroupA  0.650
 8 AM  Dermatopha microceras          GroupB  0.653
 9 AM  N/A                            GroupA  0.00915
10 AM  N/A                            GroupB  0.00642
11 AS  Cohorte Bimichaeliina          GroupA  0.795
12 AS  Cohorte Bimichaeliina          GroupB  0.796
13 AS  Nematalycoidea                 GroupA  0.0120
14 AS  Nematalycoidea                 GroupB  0.0123
15 AS  Possibly Cohorte Bimichaeliina GroupA  0.193
16 AS  Possibly Cohorte Bimichaeliina GroupB  0.191

I am trying to visualize Genus,name and value based on every ID.I also tried the code at this page Showing data values on stacked bar chart in ggplot2, like I have tried :

df1 <- df %>% select(ID == "JP")
ggplot(dt1, aes(name, value, fill = Genus)) +
  geom_col()

Desired format of plots like

But I only can handle one ID each time.I have multiple IDs,also want colored by name, for example GroupA using blue(dark to light) and GroupB using another Green(dark to light).Any help in this regard will be highly appreciated. Thanks.

You might skip the `select` step and add `+ facet_wrap(~ID)` in the ggplot part. — Jon Spring, May 24 '23 at 00:55

jared_mamrot · Accepted Answer · 2023-05-24T01:40:21.207

Is this your desired output?

library(tidyverse)
library(ggnewscale)

df <- read.table(text = "ID  Genus                          name    value
 1 JP  Dermatophagoides               GroupA  0.997
 2 JP  Dermatophagoides               GroupB  NA
 3 JP  'Dermatophagoides evansi'        GroupA  0.00259
 4 JP  'Dermatophagoides evansi'        GroupB  NA
 5 AM  'Dermatophagoides farinae'       GroupA  0.302
 6 AM  'Dermatophagoides farinae'       GroupB  0.303
 7 AM  'Dermatopha microceras'          GroupA  0.650
 8 AM  'Dermatopha microceras'          GroupB  0.653
 9 AM  N/A                            GroupA  0.00915
10 AM  N/A                            GroupB  0.00642
11 AS  'Cohorte Bimichaeliina'          GroupA  0.795
12 AS  'Cohorte Bimichaeliina'          GroupB  0.796
13 AS  Nematalycoidea                 GroupA  0.0120
14 AS  Nematalycoidea                 GroupB  0.0123
15 AS  'Possibly Cohorte Bimichaeliina' GroupA  0.193
16 AS  'Possibly Cohorte Bimichaeliina' GroupB  0.191 ",
header = TRUE, na.strings = "N/A")

df %>%
  mutate(value = parse_number(value)) %>%
  ggplot() +
  geom_col(data = . %>% filter(name == "GroupA"),
           aes(x = name, y = value, fill = Genus),
           position="fill") +
  scale_fill_brewer(palette = "Blues") +
  new_scale_fill() +
  geom_col(data = . %>% filter(name == "GroupB"),
           aes(x = name, y = value, fill = Genus),
           position="fill") +
  scale_fill_brewer(palette = "Greens") +
  facet_grid(cols = vars(name), rows = vars(ID), scales = "free")
#> Warning: Removed 2 rows containing missing values (`position_stack()`).

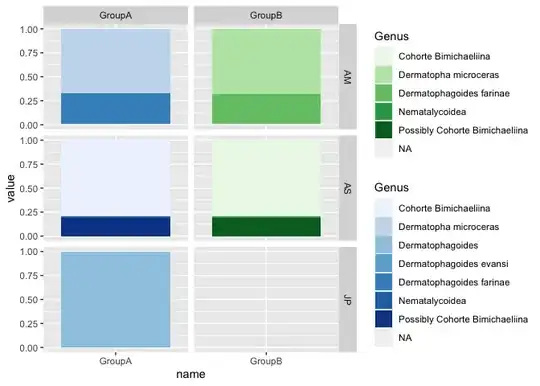

^{Created on 2023-05-24 with reprex v2.0.2}

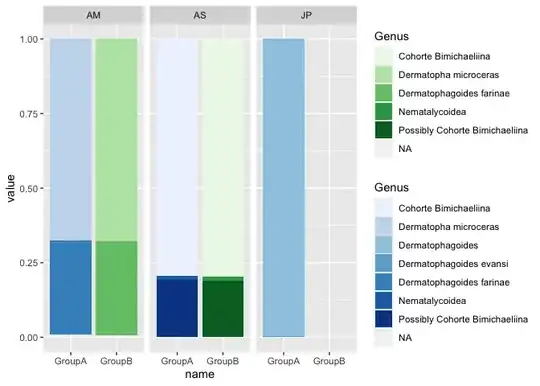

With facet_wrap() instead of facet_grid():

library(tidyverse)
library(ggnewscale)

df <- read.table(text = "ID  Genus                          name    value
 1 JP  Dermatophagoides               GroupA  0.997
 2 JP  Dermatophagoides               GroupB  NA
 3 JP  'Dermatophagoides evansi'        GroupA  0.00259
 4 JP  'Dermatophagoides evansi'        GroupB  NA
 5 AM  'Dermatophagoides farinae'       GroupA  0.302
 6 AM  'Dermatophagoides farinae'       GroupB  0.303
 7 AM  'Dermatopha microceras'          GroupA  0.650
 8 AM  'Dermatopha microceras'          GroupB  0.653
 9 AM  N/A                            GroupA  0.00915
10 AM  N/A                            GroupB  0.00642
11 AS  'Cohorte Bimichaeliina'          GroupA  0.795
12 AS  'Cohorte Bimichaeliina'          GroupB  0.796
13 AS  Nematalycoidea                 GroupA  0.0120
14 AS  Nematalycoidea                 GroupB  0.0123
15 AS  'Possibly Cohorte Bimichaeliina' GroupA  0.193
16 AS  'Possibly Cohorte Bimichaeliina' GroupB  0.191 ",
header = TRUE, na.strings = "N/A")

df %>%
  mutate(value = parse_number(value)) %>%
  ggplot() +
  geom_col(data = . %>% filter(name == "GroupA"),
           aes(x = name, y = value, fill = Genus),
           position="fill") +
  scale_fill_brewer(palette = "Blues") +
  new_scale_fill() +
  geom_col(data = . %>% filter(name == "GroupB"),
           aes(x = name, y = value, fill = Genus),
           position="fill") +
  scale_fill_brewer(palette = "Greens") +
  facet_wrap(~ID)
#> Warning: Removed 2 rows containing missing values (`position_stack()`).

^{Created on 2023-05-24 with reprex v2.0.2}

Thank you for answer, yes. But I need plot by ID```(JP, AM, AS)```, I want to get 3 plots. — mashimena, May 24 '23 at 01:10
almost like! But I want fill = Genus, and get two bar (GroupA and GroupB) ,GroupA using one color (dark to light ),GroupB using another color (dark to light ) ,facet_wrap(~ID). — mashimena, May 24 '23 at 01:17
Oh, yep, that makes sense; one option is to use the [ggnewscale package](https://eliocamp.github.io/ggnewscale/) - I'll edit my answer — jared_mamrot, May 24 '23 at 01:39
