How do I change the background color of the ActionBar of an ActionBarActivity using XML?

Question

Details:

I'm extending ActionBarActivity.
Eclipse and SDK fully patched as of 2011-11-06.

<uses-sdk android:minSdkVersion="4" android:targetSdkVersion="14" />

Deployed to Samsung device with Android 2.3.3
Application has android:theme="@android:style/Theme.Light"

Issue: application is light, but ActionBar is blue with grey icons, hardly visible against the blue background color. I also want the ActionBar to be light, so they grey icons are more visible.

I've tried modifying the styles but to no avail.
I'm probably missing something trivial.

How do I change the background color of the ActionBar of an ActionBarActivity using XML ?

Closing this old chestnut. Points to Sannidhi, by popular demand, however the replies to this question span quite a few versions of Android, and in my context David Millers suggestion to use SherlockActionBar was most relevant. — user77115, Jun 24 '13 at 04:55
Little tidbit for others: If you make the first element in your XML view the same background as your ActionBar (in our case, white), the ActionBar turns grey. — Joshua Pinter, Dec 31 '19 at 20:29
When you think about, TitleBar and ActionBar dont offer anything special. They are more like a nuisance, especially when you dont know them. A.better alternative would be to hide them and design your own title bar. You can add your own widgets with Views and drawables. As Title bar provides no widgets. And action bar can only have one drop down list, for all menuItems.Even alot of Apps have ditched Action Bar in favour of their own. — , Feb 07 '20 at 05:14

score 539 · Accepted Answer · edited Mar 19 '18 at 12:41

539

As per documentation - "You can control the behaviors and visibility of the action bar with the ActionBar APIs, which were added in Android 3.0 (API level 11)."

So, ActionBar will not work for your target environment which is at API level 10 (Android 2.3.3).

Just in case, if you target for minimum API level 11 , you can change ActionBar's background color by defining custom style, as:

<resources>
    <style name="MyTheme" parent="@android:style/Theme.Holo.Light">
        <item name="android:actionBarStyle">@style/MyActionBar</item>
    </style>

    <style name="MyActionBar" parent="@android:style/Widget.Holo.Light.ActionBar">
        <item name="android:background">ANY_HEX_COLOR_CODE</item>
    </style>
</resources>

And, set "MyTheme" as theme for application / activity.

edited Mar 19 '18 at 12:41

Papershine

4,995
2
24
48

answered Feb 12 '12 at 14:51

lupchiazoem

8,026
6
36
42

12

@AlexanderFragotsis use `@color/my_color`. – lethargicpanda Jan 07 '13 at 19:54
31

The same approach should be used if you are using ActionBarCompat library. The only difference is that you should change **actionBarStyle** (without *android:* prefix) item to define how actionbar will look on pre-3.0 Android devices – Alex Semeniuk Nov 14 '13 at 07:55
3

Is there any possibility to, instead of putting the color's HEX code, reference a `@android:color` or even a custom color defined in `colors.xml`? I've tried it with no success. – jmrodrigg Jul 30 '14 at 22:33
@jmrodrigg use `@color/black` – offset Nov 19 '14 at 06:00
Actionbar behavior can be changed for api < 11. see http://stackoverflow.com/questions/8024706/how-do-i-change-the-background-color-of-the-actionbar-of-an-actionbaractivity-us/27847656#27847656 – Apurva Feb 06 '15 at 10:22
Can you help http://stackoverflow.com/questions/28609110/custom-theme-not-applying – Sasha Feb 19 '15 at 14:44
1

I'm not able to change text action bar text color using "@color/my_color" – Shirish Herwade Mar 05 '15 at 15:10
is it possible to set the color directly in "MyTheme" without creating the additional style tag? – wutzebaer Jan 14 '16 at 12:42
2

This didn't work for me with android:background tag but when I left out the android tag and put just the color changed for all platforms. – stevyhacker Jan 28 '16 at 00:15
`` and `` pair works for me. I'm using com.android.support:appcompat-v7:25.4.0. – Evi Song May 01 '18 at 08:32
It works, but now this changes my preferences screen background to the same color – A.W. Nov 27 '20 at 10:28

score 219 · Answer 2 · edited Mar 19 '14 at 19:43

219

Try this

ActionBar bar = getActionBar();
bar.setBackgroundDrawable(new ColorDrawable("COLOR"));

edited Mar 19 '14 at 19:43

EdChum

376,765
198
813
562

answered Nov 06 '11 at 02:18

coder_For_Life22

26,645
20
86
118

1

11-06 10:53:16.985: E/AndroidRuntime(16956): java.lang.NoSuchMethodError: com.acme.myActivity.getActionBar – user77115 Nov 06 '11 at 09:55
1

@coder_For_Life22 do you know how can I get a contextual action bar? – Geeks On Hugs Sep 01 '12 at 18:23
6

afaik, the support library itself doesn't have the ActionBar, for that you wil have to include the SherlockActionBar. – David Miler Oct 02 '12 at 15:53
23

maybe this is strange but in my case `bar.setBackgroundDrawable(new ColorDrawable(Color.BLUE));` change the action bar color to grey. These happens also if put other color, like `Color.RED`, `Color.GREEN` and so on... Does anybody have the same problem, or know the cause of this issue? I use a Nexus S device – AlexAndro Oct 16 '12 at 12:59
What if I want to align text to center?? `??` what could be the attribute at "??" – Mitesh Shah Jan 09 '14 at 07:56
5

http://stackoverflow.com/a/17198657/1022454 This post seems to fix the issue where the action bar color goes grey. – Jonathon Fry Jan 30 '14 at 14:41
in order to add a Hex color simply use Color.parseColor("#7bb42c"). – Kennedy Nyaga Mar 19 '14 at 19:37
@KennyWest Please do not edit an answer with code modifications, they should be comments – EdChum Mar 19 '14 at 19:44
@KennyWest **bar.setBackgroundDrawable(new ColorDrawable(Color.GREEN));** NULLPOINTEREXCEPTION? – Ruchir Baronia Nov 01 '15 at 20:56

score 127 · Answer 3 · edited Aug 09 '13 at 13:06

127

try this:

ActionBar bar = getActionBar();
bar.setBackgroundDrawable(new ColorDrawable(Color.parseColor("#0000ff")));

edited Aug 09 '13 at 13:06

Bruno Bieri

9,724
11
63
92

answered Jun 23 '13 at 14:40

user2428604

1,287
1
8
2

1

How does this fit into the rest of the code? just curious where to actually add this – JGallardo Nov 03 '14 at 22:50
7

I have the exact question as @JGallardo . Where do you add this? I tried it in `onCreate` but it gave a `NullPointerException` Edit: This is the code I added to `restoreActionBar` ActionBar actionBar = getSupportActionBar(); actionBar.setBackgroundDrawable(new ColorDrawable(Color.parseColor("#E5E4E2"))); – rrrocky Jan 15 '15 at 20:15
Add it your Activity's onCreate method. – Ojonugwa Jude Ochalifu Jul 30 '15 at 11:17
4

use getSupportActionBar() instad of getActionBar() – Chanaka Fernando Oct 27 '17 at 07:43

score 69 · Answer 4 · answered Jan 28 '14 at 23:22

69

Use this - http://jgilfelt.github.io/android-actionbarstylegenerator/

Its an amazing tool that lets you customize your actionbar with a live preview.

I tried the earlier answers but always had problems with changing other colors like the tabs and letters and spent hours tweaking stuff. This tool helped me get my design done in just a couple of minutes.

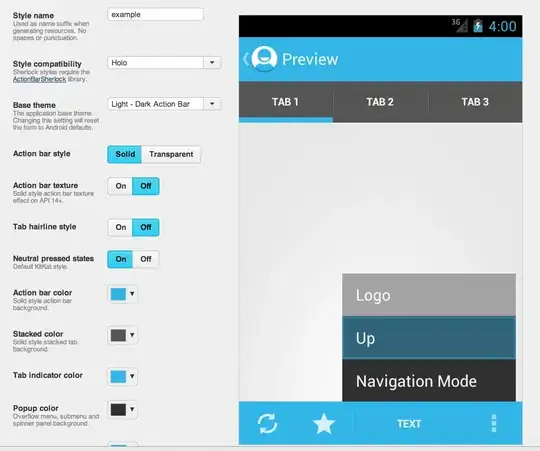

Here's a screenshot of the tool

All the best! :)

answered Jan 28 '14 at 23:22

Mohammad Shabaz Moosa

1,515
1
13
20

how do I set my app to use the files once they are added into my app? – Mike Feb 16 '15 at 08:57
In the context of the screenshot above (named example), after pasting the generated res folder, you should have a new style @style/Theme.Example. In AndroidManifest.xml, set . Should work :) – Mohammad Shabaz Moosa Feb 17 '15 at 12:13
2

deprecated. unfortunately – Liangjun Dec 23 '15 at 20:19

score 58 · Answer 5 · edited Feb 19 '16 at 03:43

I had the same problem, where my Action Bar would turn grey when I entered that code. Chances are your original style sheet looked like this:

<style name="AppBaseTheme" parent="android:Theme.Holo.Light.DarkActionBar">
    <!-- API 14 theme customizations can go here. -->
</style>

The "DarkActionBar" was what was keeping your Action Bar grey. I changed it to this, and it worked:

<style name="AppBaseTheme" parent="android:Theme.Holo.Light">
    <!-- API 14 theme customizations can go here. -->
    <item name="android:actionBarStyle">@style/MyActionBar</item>
</style>

<style name="MyActionBar" parent="@android:style/Widget.Holo.Light.ActionBar">
    <item name="android:background">#2aa4cd</item>
    <item name="android:titleTextStyle">@style/Theme.MyAppTheme.ActionBar.TitleTextStyle</item>
</style>

<style name="Theme.MyAppTheme.ActionBar.TitleTextStyle" parent="android:style/TextAppearance.Holo.Widget.ActionBar.Title">
    <item name="android:textColor">#FFFFFF</item>
</style>

I also threw in how to edit the text color. Also, no need to change anything surrounding the resources.

-Warren

score 39 · Answer 6 · edited Jun 20 '20 at 09:12

Behavior of Actionbar can also be changed in APIs < 11

See the Android Official Documentation for reference

I am building an app with minSdkVersion = "9" and targetSdkVersion = "21" I changed the color of action bar and it works fine with API level 9

Here is an xml

res/values/themes.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <!-- the theme applied to the application or activity -->
    <style name="CustomActionBarTheme"
           parent="@style/Theme.AppCompat.Light.DarkActionBar">
        <item name="android:actionBarStyle">@style/MyActionBar</item>

        <!-- Support library compatibility -->
        <item name="actionBarStyle">@style/MyActionBar</item>
    </style>

    <!-- ActionBar styles -->
    <style name="MyActionBar"
           parent="@style/Widget.AppCompat.Light.ActionBar.Solid.Inverse">
        <item name="android:background">@color/actionbar_background</item>

        <!-- Support library compatibility -->
        <item name="background">@color/actionbar_background</item>
    </style>
</resources>

and set the color of actionbar you want

res/values/colors.xml

<?xml version="1.0" encoding="utf-8"?>
<resources>
    <color name="actionbar_background">#fff</color> //write the color you want here
</resources>

Actionbar color can also be defined in .class file, the snippet is

ActionBar bar = getActionBar();
bar.setBackgroundDrawable(new ColorDrawable(Color.parseColor("#0000ff")));

but this will not work with the API < 11, so styling the actionbar in xml is only way for API < 11

Can you help http://stackoverflow.com/questions/28609110/custom-theme-not-applying — Sasha, Feb 19 '15 at 14:40
The snippet doesn't work in my app when used in a fragment. I changed it for ActionBar bar = getActivity().getActionBar(); . As soon as fragment is about to be opened it crashes. — Jose Manuel Abarca Rodríguez, Apr 15 '15 at 22:56
Found the problem, it works with : ActionBar actionBar = getSupportActionBar(); — Jose Manuel Abarca Rodríguez, Apr 15 '15 at 23:20

score 21 · Answer 7 · edited Apr 27 '23 at 10:01

21

For Kotlin users - I tried it and this works with light mode and dark mode -

    getSupportActionBar()?.setBackgroundDrawable(
             ColorDrawable(Color.parseColor("#003459"))

)

Add this in onCreate like this -

override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        getSupportActionBar()?.setBackgroundDrawable(
             ColorDrawable(Color.parseColor("#003459"))
        )

edited Apr 27 '23 at 10:01

Aditya Anand

3
2

answered Jun 08 '16 at 11:29

CrazyMind

1,006
1
20
22

2

Would be better to use resources to get the color rather than having it as a text. `getSupportActionBar().setBackgroundDrawable(new ColorDrawable(getResources().getColor(android.R.color.black)));` – Dinesh Sep 29 '17 at 08:17

score 16 · Answer 8 · edited May 23 '17 at 12:26

16

On the Nexus 4 people this seems to make the color go grey.

ActionBar bar = getActionBar(); // or MainActivity.getInstance().getActionBar()
bar.setBackgroundDrawable(new ColorDrawable(0xff00DDED));
bar.setDisplayShowTitleEnabled(false);  // required to force redraw, without, gray color
bar.setDisplayShowTitleEnabled(true);

(all credit to this post, but it is buried in the comments, so I wanted to surface it here) https://stackoverflow.com/a/17198657/1022454

edited May 23 '17 at 12:26

Community

1
1

answered May 19 '14 at 03:43

John Ballinger

7,380
5
41
51

2

After spending countless hours trying to figure out WTH was wrong, this answer helped me. – Abdullah Umer Jun 11 '14 at 02:51

score 14 · Answer 9 · answered Feb 04 '15 at 10:54

14

try one line code :

getActionBar().setBackgroundDrawable(new ColorDrawable(getResources().getColor(R.color.MainColor)));

answered Feb 04 '15 at 10:54

SANAT

8,489
55
66

1

My app crashes with this answer. To make it work in a fragment I changed it like this : getActivity().getActionBar().setBackgroundDrawable(new ColorDrawable(getActivity().getResources().getColor(R.color.col_nar))); , also tried getActivity().getActionBar().setBackgroundDrawable(new ColorDrawable(getResources().getColor(R.color.col_nar))); . It crashes as soon as the fragment is opened. – Jose Manuel Abarca Rodríguez Apr 15 '15 at 22:53
1

Found the problem, it works with : ActionBar actionBar = getSupportActionBar(); – Jose Manuel Abarca Rodríguez Apr 15 '15 at 23:19
1

the answer is for the activity. If you want to use it with fragment then you have to use getActivity().getActionBar() for fragments – SANAT Apr 16 '15 at 08:45

Merthan Erdem · Answer 10 · 2022-02-09T13:15:49.990

9

2021: Kotlin oneliner with no deprecation:

supportActionBar?.setBackgroundDrawable(ColorDrawable(ContextCompat.getColor(this,R.color.red)))

Simply put it into onCreate and change the color depending on your needs

edited Feb 09 '22 at 13:15

answered Apr 15 '21 at 16:27

Merthan Erdem

5,598
2
22
29

score 6 · Answer 11 · answered May 25 '17 at 09:00

This is how you can change the color of Action Bar.

import android.app.Activity;
import android.content.Context;
import android.graphics.Color;
import android.graphics.drawable.ColorDrawable;
import android.os.Build;
import android.support.v4.content.ContextCompat;
import android.support.v7.app.ActionBar;
import android.support.v7.app.AppCompatActivity;


public class ActivityUtils {

public static void setActionBarColor(AppCompatActivity appCompatActivity, int colorId){
    ActionBar actionBar = appCompatActivity.getSupportActionBar();
    ColorDrawable colorDrawable = new ColorDrawable(getColor(appCompatActivity, colorId));
    actionBar.setBackgroundDrawable(colorDrawable);
}

public static final int getColor(Context context, int id) {
    final int version = Build.VERSION.SDK_INT;
    if (version >= 23) {
        return ContextCompat.getColor(context, id);
    } else {
        return context.getResources().getColor(id);
    }
}
}

From your MainActivity.java change the action bar color like this

    ActivityUtils.setActionBarColor(this, R.color.green_00c1c1);

score 5 · Answer 12 · edited Dec 31 '19 at 18:33

5

When you are Extending Activity use following Code

ActionBar actionbar = getActionBar();
actionbar.setBackgroundDrawable(new ColorDrawable("color"));

When you are Extending AppCompatActivity use following Code

ActionBar actionbar = getSupportActionBar();
actionbar.setBackgroundDrawable(new ColorDrawable("color"));

edited Dec 31 '19 at 18:33

Joshua Pinter

45,245
23
243
245

answered Mar 14 '18 at 06:00

arlo shie

134
1
8

score 4 · Answer 13 · answered Feb 04 '20 at 03:54

Sometimes this option throws NullPointerException

ActionBar actionbar = getActionBar(); actionbar.setBackgroundDrawable(new ColorDrawable("color"));

But this option is worked for me. So you can try this.

getSupportActionBar().setBackgroundDrawable(new ColorDrawable(Color.parseColor("#FFFFFF")));

Happy Coding

score 3 · Answer 14 · answered Feb 28 '19 at 18:07

This worked for me, for AppCompatActivity,

    <item name="actionBarStyle">@style/BlackActionBar</item>
</style>

<style name="BlackActionBar" parent="@style/Widget.AppCompat.ActionBar.Solid">
    <item name="background">@android:color/black</item>
    <item name="titleTextStyle">@style/BlackActionBarTitleTextStyle</item>
</style>

<style name="BlackActionBarTitleTextStyle" parent="@style/TextAppearance.AppCompat.Widget.ActionBar.Title">
    <item name="android:textColor">@android:color/white</item>
    <item name="android:fontFamily">@font/cinzel_decorative</item>
</style>

score 3 · Answer 15 · answered Feb 15 '20 at 10:56

3

If you are using androidx AppCompact. Use below code.

androidx.appcompat.app.ActionBar actionBar = getSupportActionBar();
actionBar.setBackgroundDrawable(new ColorDrawable("Color"));

answered Feb 15 '20 at 10:56

Dinith Rukshan Kumara

638
2
10
19

score 2 · Answer 16 · edited Feb 19 '16 at 03:44

This code may be helpful

<!-- Base application theme. -->
<style name="AppTheme" parent="Theme.AppCompat.Light">
    <!-- Customize your theme here. -->
</style>
<style name="Theme.MyTheme" parent="Theme.AppCompat.Light.DarkActionBar">
    <!-- customize the color palette -->
    <item name="colorPrimary">@color/material_blue_500</item>
    <item name="colorPrimaryDark">@color/material_blue_700</item>
    <item name="colorAccent">@color/material_blue_500</item>
    <item name="colorControlNormal">@color/black</item>

</style>
<style name="CardViewStyle" parent="CardView.Light">
    <item name="android:state_pressed">@color/material_blue_700</item>
    <item name="android:state_focused">@color/material_blue_700</item>
    <!--<item name="android:background">?android:attr/selectableItemBackground</item>-->
</style>

score 2 · Answer 17 · edited Jun 20 '20 at 09:12

Its very simple for those who are using API 21 or greater Use this code below

for Dark ActionBar

<resources>
<style name="AppTheme" parent="Theme.AppCompat.NoActionBar">
    <!-- Customize your theme here. -->
    <item name="android:background">@color/colorDarkGrey</item>
</style>

for_LightActionBar

<resources>
<style name="AppTheme" parent="Theme.AppCompat.Light.ActionBar">
    <item name="android:background">@color/colorDarkGrey</item>
</style>

score 1 · Answer 18 · answered Sep 29 '15 at 14:01

Use This code ..to change action bar background color. open "res/values/themes.xml" (if not present, create it) and add

<?xml version="1.0" encoding="utf-8"?>
<resources>
<!-- the theme applied to the application or activity -->
<style name="CustomActionBarTheme"
       parent="@android:style/Theme.Holo.Light.DarkActionBar">
    <item name="android:actionBarStyle">@style/MyActionBar</item>
</style>
 <!-- ActionBar styles -->
<style name="MyActionBar"
       parent="@android:style/Widget.Holo.Light.ActionBar.Solid.Inverse">
    <item name="android:background">@drawable/actionbar_background</item>
</style>

Note : this code works for android 3.0 and higher versions only

score 0 · Answer 19 · answered Aug 24 '16 at 05:19

0

Use this, it would work.

ActionBar actionbar = getActionBar();
actionbar.setBackgroundDrawable(new ColorDrawable("color"));

answered Aug 24 '16 at 05:19

Pankaj Lilan

4,245
1
29
48

score -2 · Answer 20 · edited Dec 30 '15 at 18:53

-2

getActionBar().setBackgroundDrawable(new ColorDrawable(getResources().getColor(R.color.TabColor)));

color.xml file:

<resources> <color name="TabColor">#11FF00</color> </resources>`

edited Dec 30 '15 at 18:53

Nathaniel Ford

20,545
20
91
102

answered Dec 30 '15 at 18:32

Chandresh Kachariya

667
2
13
31

How do I change the background color of the ActionBar of an ActionBarActivity using XML?

20 Answers20

Behavior of Actionbar can also be changed in APIs < 11

When you are Extending Activity use following Code

When you are Extending AppCompatActivity use following Code

for Dark ActionBar

for_LightActionBar

Linked

Related
