I need some help to create a .bat file which need to:

1) Access 192.168.0.1 or tplinklogin.net (my wi-fi router address)

2) Type/insert user and password

3) Click/run "Disconnect" wait 1-3 sec

4) Click/run "Connect" wait 3-5 sec

5) Click/run "Refresh" - not really necessary

6) Exit

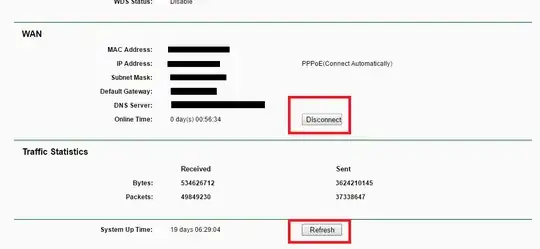

https://i.sstatic.net/puvRZ.png

Jatin
  • 399
Alin
  • 1

1 Answers1

0

I found this link, which seems more or less to answer the problem, though the Linux script above it worked rather better. I found that the process termination code towards the end didn't work properly, so I took it out and all was well. I also changed the service commands in line with the discussion below and finished up with:-

set WshShell = WScript.CreateObject("WScript.Shell")
WshShell.Run "cmd"
WScript.Sleep 100
WshShell.AppActivate "C:\Windows\system32\cmd.exe"
WScript.Sleep 1000
WshShell.SendKeys "telnet 192.168.0.1~"
WScript.Sleep 1000
WshShell.SendKeys "admin~"
WScript.Sleep 1000
WshShell.SendKeys "admin~"
WScript.Sleep 2000
WshShell.SendKeys "wan set service pppoa_0_38_0_d --protocol pppoa --conntrigger manual~"
WScript.Sleep 12000
WshShell.SendKeys "~"
WScript.Sleep 1000
WshShell.SendKeys "wan set service pppoa_0_38_0_d --protocol pppoa --conntrigger always~"
WScript.Sleep 6000
WshShell.SendKeys "~"
WScript.Sleep 1000
WshShell.SendKeys "logout~"
WScript.Sleep 6000
WshShell.SendKeys "~"
WScript.Sleep 1000
WshShell.SendKeys "exit~"

You simply copy this to a file with a .vbs suffix, edit it to update the router's IP address, the log-in user and password, and the service name and protocol. For the latter you will need to log into telnet manually and type:

wan show service

In your cmd script, invoke the edited script with:

start [/wait] reconnect.vbs

Use /wait if you want the script to complete before you continue to the next command.

One problem I found is that if called while the router is on-line it leaves it in a disconnected state, but increasing the delay between the two service calls fixed this, and you may need to tweak this or some of the other delays.
