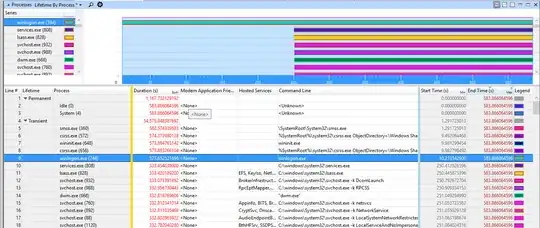

My i5 desktop Windows 10 Pro is taking over 5 minutes to boot--with a SSD. I have run the xBootMgr profile and it shows winlogon.exe starts immediately and for 2.50 min of the 5.83 min boot time, there is nothing--other process or disk activity going on during this period. Any suggestions has to how to determine what winlogon is waiting for?

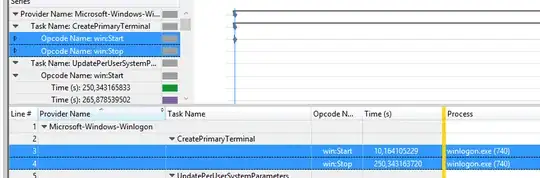

Lookig in the generic Events table for Events from the Microsoft-Windows-Winlogon provider I can see that the CreatePrimaryTerminal task takes over 200s to finish.
3 years ago I saw this, too, and here font files caused such a long delay. Look if this also applies to you.
But it must have someting to do with fonts. Looking at the callstack shows, that the CreatePrimaryTerminal function loads fonts:
Line #, Process, Stack Tag, Stack, Thread ID, Count, Weight (in view) (ms), TimeStamp (s), % Weight
9, , , winlogon.exe!WinMain, , 107, 106,712051, , 0,01
10, , , winlogon.exe!CSession::CreatePrimaryTerminal, , 107, 106,712051, , 0,01
11, , , winlogon.exe!CreatePrimaryTerminal, , 107, 106,712051, , 0,01
12, , , |- user32.dll!CreateWindowStationW, , 106, 105,712051, , 0,01
13, , , | user32.dll!CommonCreateWindowStation, , 106, 105,712051, , 0,01
14, , , | user32.dll!NtUserCreateWindowStation, , 106, 105,712051, , 0,01
15, , , | ntoskrnl.exe!KiSystemServiceCopyEnd, , 106, 105,712051, , 0,01
16, , , | win32kfull.sys!NtUserCreateWindowStation, , 106, 105,712051, , 0,01
17, , , | win32kfull.sys!xxxCreateWindowStation, , 106, 105,712051, , 0,01
18, , , | |- win32kfull.sys!xxxInitTerminal, , 102, 101,694054, , 0,01
19, , , | | win32kfull.sys!xxxLW_LoadFonts, , 102, 101,694054, , 0,01
20, , , | | win32kfull.sys!xxxbEnumerateRegistryFonts, , 102, 101,694054, , 0,01
21, , , | | win32kfull.sys!xxxbEnumerateRegistryFontsInternal, , 102, 101,694054, , 0,01
22, , , | | |- win32kfull.sys!xxxAddFontResourceW, , 96, 95,668687, , 0,01
23, , , | | | win32kfull.sys!xxxClientAddFontResourceW, , 96, 95,668687, , 0,01
The latest trace shows that you still have other fonts installed (Marketing Script Inline, Marketing Script, Microsoft JhengHei, CordiaUC, Teamviewer, Rage Italic, La Bambda, Quixley, Pump Demi).
So remove really all 3rd party fonts.
// Edit 2016-08-24

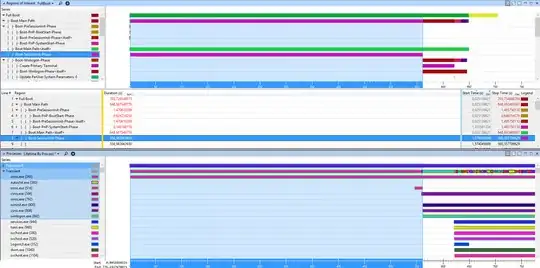

The second trace shows a long delay in Boot-SessionInit/SMSSInit-Phase:
The SMSSInit subphase begins when the kernel passes control to the session manager process (Smss.exe). During this subphase, the system initializes the registry, loads and starts the devices and drivers that are not marked BOOT_START, and starts the subsystem processes. SMSSInit ends when control is passed to Winlogon.exe.

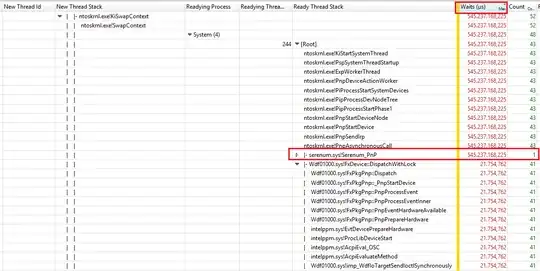

I looked at the delay and see that the Init/enum of Serial devices (COM port connected devices) is slow:
If you don't need COM port, disable the COM port in BIOS/UEFI.
