6

Before, to change network connection priority under Windows I did: Network Adapters → Advanced Settings → Adapters and Bindings → Connections (there are several questions describing it on superuser)

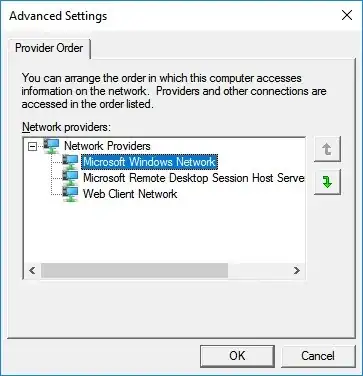

After recent Windows 10 update (maybe earlier) there is no more "Adapters and Bindings" when I go to Advanced Settings. I have only provider order there!:

enter image description here

This window is what I see on several computers with windows 10 at hand now.

What is clicked wrong ? Where is Adapaters and Bindings ? And how to o change network connection priority now?

clhy
  • 6,514
Dmitry Romanov
  • 417

2 Answers2

8

This legacy setting was superseded in Windows 10 with a new setting that is the "metric" much like in typical networking.

Go to your adapter properties, IPv4 settings, (keep current DHCP or static IP) and click on the "advanced button". There you will see the new checkbox automatic metric and the textbox to enter manually at your discretion. The lower the number the higher the priority.

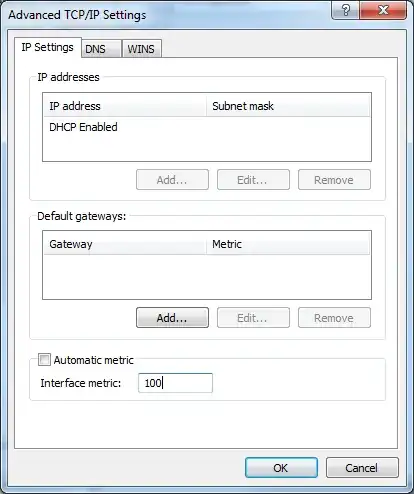

Advanced TCPIP Settings

JCM
  • 368
5

To complement JCMs correct answer, you can also configure the metric by using the PowerShell cmdlet Set-NetIPInterface (source, docs):

Set-NetIPInterface -InterfaceIndex <INDEX> -InterfaceMetric 100

This cmdlet is quite usefull, because it is the only way to adjust the metric of interfaces that you don't see in the GUI, like virtual interfaces.

Keep in mind, a high priority is equivalent to a low metric value.

stackprotector
  • 1,467
