I have a piece of hardware that my grandma gave me along with her old laptop. I have no idea what it is and neither does anyone I know. It has a mono 3.5mm plug on one end, but plugging it into a headphone jack does nothing. Same result with a microphone jack. It has a 16 foot long cable. Pictures below.

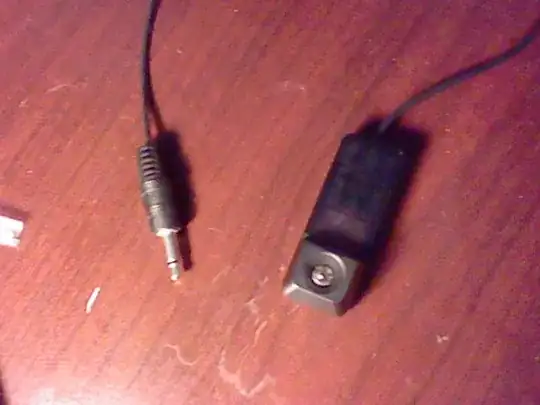

both ends

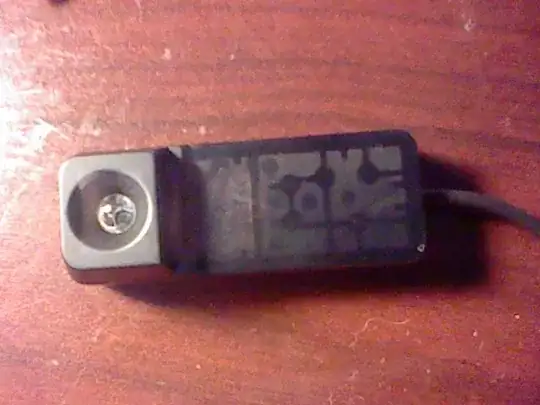

unknown end

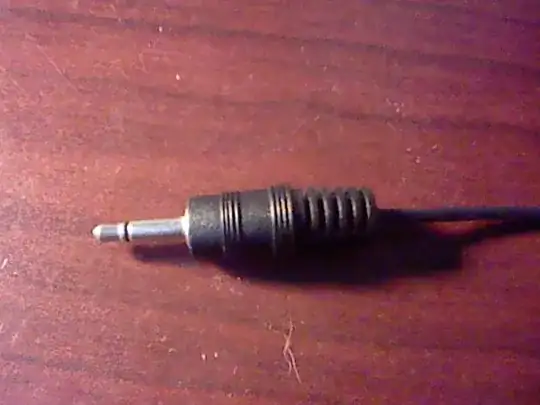

3.5mm end

Can someone please tell me what it is, what it does, and how to use it?

2 Answers2

6

I used to have a TV card with a remote. The remote receiver was an IR diode in a casing, connected to the card via mini jack – just like the thing in question.

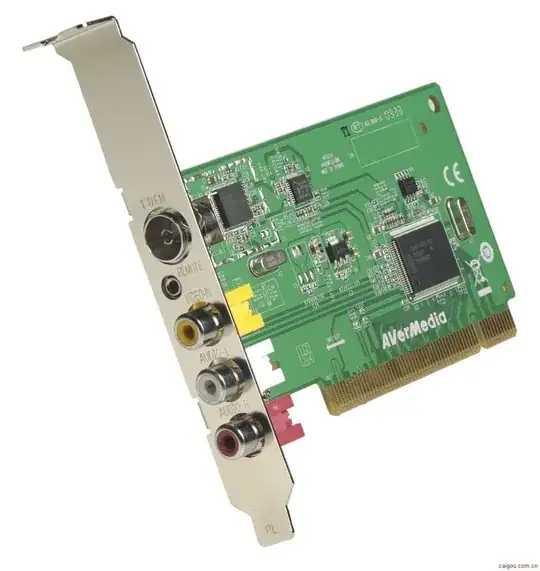

Notice the "REMOTE" label below:

TV card

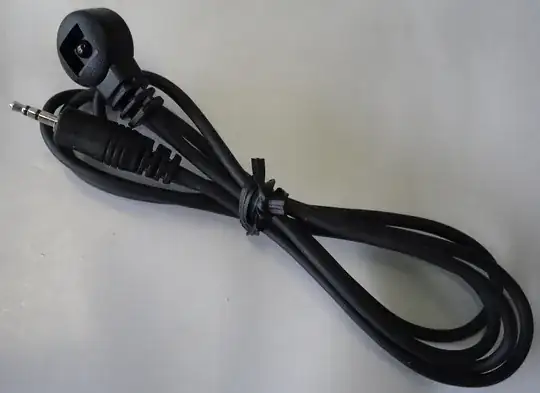

The receiver itself:

receiver

Technically those things may send signals (like the other answer suggests) even if they were designed as receivers, I think. Still my bet is your mysterious item is a receiver shipped with some device and an IR remote.

4

Looks like an infrared sender. Old method of communication on some laptops, and external tools, though it depends on the frequency of light it puts out. That's all I can see it doing.

Normally the receivers are not clear, that is usually the sender. If it was a receiver it would be similar to the one in Kamil's answer, with a filtered input so that it doesn't confuse the incoming signals.
