  • Windows 7.
  • 4TB drive.
  • Some programs are reporting just over 1 GB free, and others are reporting almost 6 GB free.
  • System protection off.

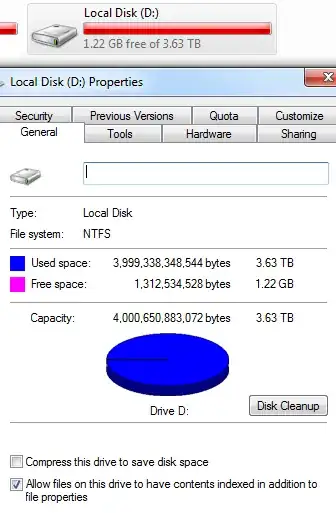

explorer screenshot (1 GB)

fsutil volume diskfree d: (1 GB):

Total # of free bytes        : 1312534528
Total # of bytes             : 4000650883072
Total # of avail free bytes  : 1312534528

fsutil fsinfo ntfsinfo d::

NTFS Volume Serial Number :       <REDACTED>
Version :                         3.1
Number Sectors :                  0x00000001d1bcafff
Total Clusters :                  0x000000003a3795ff
Free Clusters  :                  0x00000000001787fb
Total Reserved :                  0x000000000012a040
Bytes Per Sector  :               512
Bytes Per Cluster :               4096
Bytes Per FileRecord Segment    : 1024
Clusters Per FileRecord Segment : 0
Mft Valid Data Length :           0x0000000002700000
Mft Start Lcn  :                  0x00000000000c0000
Mft2 Start Lcn :                  0x0000000000000002
Mft Zone Start :                  0x00000000316d7f40
Mft Zone End   :                  0x00000000316db960
RM Identifier:                    <REDACTED>

(Free Clusters: 1787fb = 1,542,139 X 4096 = 6,316,601,344 bytes = 5.88 GB)

(Total Reserved: 12a040 = 1,220,672 X 4096 = 4,999,872,512 bytes = 4.66 GB)

(Free Clusters - Total Reserved = 1.22 GB)

This seems to explain the inconsistencies, but I don't know what "Total Reserved" means.

ntfsinfo -nobanner d (6 GB):

Volume Size
-----------
Volume size            : 3815317 MB
Total sectors          : 7813771263
Total clusters         : 976721407
Free clusters          : 1542139
Free space             : 6023 MB (0% of drive)

Allocation Size
----------------
Bytes per sector       : 512
Bytes per cluster      : 4096
Bytes per MFT record   : 0
Clusters per MFT record: 0

MFT Information
---------------
MFT size               : 39 MB (0% of drive)
MFT start cluster      : 786432
MFT zone clusters      : 829259584 - 829274464
MFT zone size          : 58 MB (0% of drive)
MFT mirror start       : 2

Meta-Data files
---------------

chkdsk event log (6 GB):

Chkdsk was executed in read-only mode on a volume snapshot.

Checking file system on D:

CHKDSK is verifying files (stage 1 of 3)...
  39936 file records processed.                                          File verification completed.
  88 large file records processed.                                      0 bad file records processed.                                        0 EA records processed.                                              0 reparse records processed.                                       CHKDSK is verifying indexes (stage 2 of 3)...
  48552 index entries processed.                                         Index verification completed.


CHKDSK is verifying security descriptors (stage 3 of 3)...
  39936 file SDs/SIDs processed.                                         Cleaning up 2 unused index entries from index $SII of file 0x9.
Cleaning up 2 unused index entries from index $SDH of file 0x9.
Cleaning up 2 unused security descriptors.
Security descriptor verification completed.
  4309 data files processed.                                            CHKDSK is verifying Usn Journal...
  176992 USN bytes processed.                                             Usn Journal verification completed.
Windows has checked the file system and found no problems.

   3815317 MB total disk space.
   3809372 MB in 35258 files.
     22108 KB in 4310 indexes.
    225647 KB in use by the system.
     65536 KB occupied by the log file.
   5840876 KB available on disk.

      4096 bytes in each allocation unit.
 976721407 total allocation units on disk.
   1460219 allocation units available on disk.

defrag d: /A /V (6 GB):

Microsoft Disk Defragmenter
Copyright (c) 2007 Microsoft Corp.

Invoking analysis on (D:)...



The operation completed successfully.

Post Defragmentation Report:


    Volume Information:
        Volume size                 = 3.63 TB
        Cluster size                = 4 KB
        Used space                  = 3.63 TB
        Free space                  = 5.88 GB


    Fragmentation:
        Total fragmented space      = 0%
        Average fragments per file  = 1.09

        Movable files and folders   = 40676
        Unmovable files and folders = 10


    Files:
        Fragmented files            = 289
        Total file fragments        = 491


    Folders:
        Total folders               = 4310
        Fragmented folders          = 0
        Total folder fragments      = 0


    Free space:
        Free space count            = 964
        Average free space size     = 6.18 MB
        Largest free space size     = 55.76 MB


    Master File Table (MFT):
        MFT size                    = 39.00 MB
        MFT record count            = 39935
        MFT usage                   = 100%
        Total MFT fragments         = 2

    Note: File fragments larger than 64MB are not included in the fragmentation statistics.


    You do not need to defragment this volume.

dir (1 GB):

 Volume in drive D has no label.
 Volume Serial Number is <REDACTED>

 Directory of D:\

08/05/2017  02:34 PM    <DIR>          <REDACTED>
02/13/2017  08:58 PM    <DIR>          <REDACTED>
06/29/2017  06:18 AM    <DIR>          <REDACTED>
06/30/2017  01:50 AM    <DIR>          <REDACTED>
10/27/2016  01:42 AM    <DIR>          <REDACTED>
               0 File(s)              0 bytes
               5 Dir(s)   1,312,534,528 bytes free

Why do some programs report more and some less free space?

EDIT: windirstat (run as system with PsExec.exe -i -s -d)

EDIT2: Does anyone know what "Total Reserved" from fsutil fsinfo ntfsinfo d: means? Pretty sure it has something to do with that.

user761620
  • 23

1 Answers1

0

I would guess at the fact that some of these programs are able to view hidden folder, while others might not be. A lot of this space may be your pagefile.sys, swapfile.sys, hiberfil.sys, etc.

Some of the programs you used to search are able to see this file. Others might not be able to. Most Windows programs are unable to see some .sys files so report open space where there may not be any.

EDIT: I was wrong. This space is reserved on NTFS drives for MFT (Master File Table) expansion. You cannot use it. It is there, but not available for your usage. I wouldn't use NTFS for this type of drive for this exact reason. After re-reading, I noticed I skipped over your ntfsinfo log and your napkin math. You have 1.2 GB of space remaining for your use, PERIOD.
