How should I terminate solid Ethernet cable in a shallow rack?

Information

  1. I've wired my house with solid CAT7.
  2. It terminates in a double gang.
  3. The wiring cabinet can fit a 300mm equipment rack
  4. The rack will have some equipment that's not full length

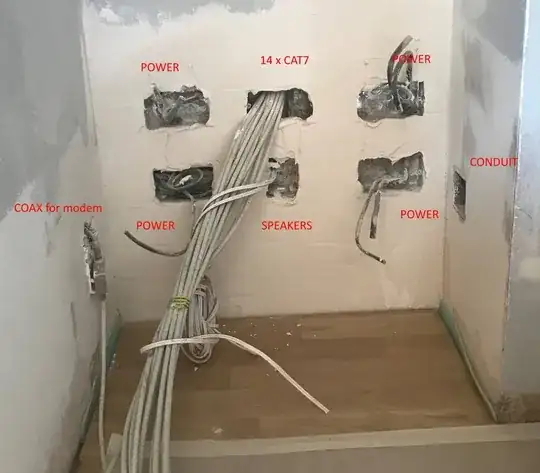

wiring

Thoughts

  1. Should I try and terminate it on the wall and go stranded?

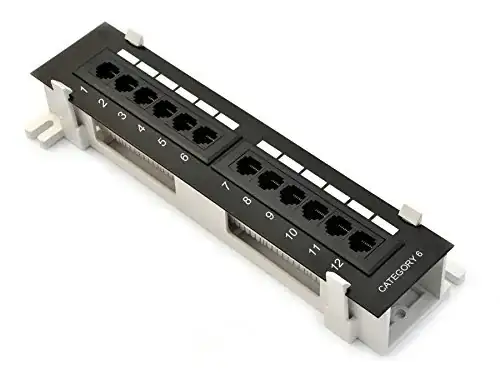

panel

AKORD CAT6 12 Port Pro RJ45 110 Network Mini Patch Panel w/Surface Wall Mount Bracket

  1. If the rack is pull out will the solid cable fatigue from repeated (infrequent) bending?

  2. Should I go with a fixed rack and live with reduced accessibility?

Community
  • 1
Scott Cowan
  • 133

1 Answers1

1

It looks like that punchdown block will work. I would suggest mounting it to a fixed rack and never touching it again. Then you can plug whatever you want in to that patch panel. What is reducing the accessibility? Your patch panel can be eye-level at the front of the rack.

HackSlash
