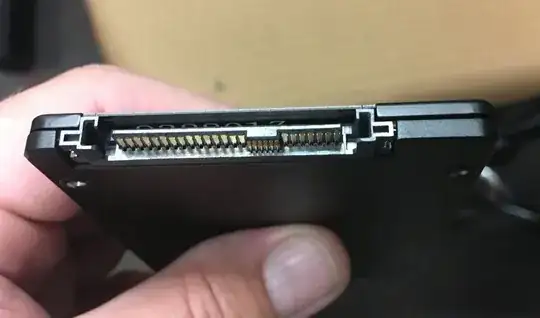

I have a Samsung PM983 2.5" SSD drive but I have never seen a connector like this.

Would like to use it but unsure of what I need to connect.

Can anyone assist?

2.5 inch SSD

Jason
  • 8,203
Eddie Dunn
  • 931

3 Answers3

49

It's a U.2 interface, formerly known as SFF-8639.

U.2 can be used for SATA Express, SAS, or Enterprise PCIe. As far as I can see, the 2.5" U.2 version of the Samsung PM983 is only available as PCIe. In this case, it'd be possible to adapt to M.2 (NVMe only) or a PCIe x4 card.

Jason
  • 8,203
17

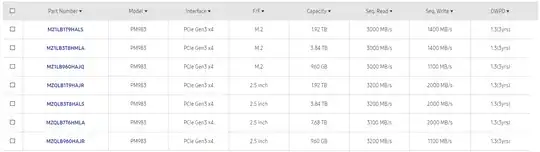

Per this table on the Samsung website, all PM983 drives use the PCIe Gen3 x4 interface which I believe is a data centre blade interface. I don't believe you can plug this into a desktop PC with a regular SATA style cable.

enter image description here

K7AAY
  • 9,725
spikey_richie
  • 9,575
1

SAS (serial attached SCSI) in a form factor partially compatible with SATA

(SFF-8482)

https://en.wikipedia.org/wiki/Serial_Attached_SCSI

p.s. it is partially compatible w/ SATA in a sense that a SAS host can run a SATA disk, but not the other way round.

fraxinus
  • 1,262
