What kind of a slot is this, please?

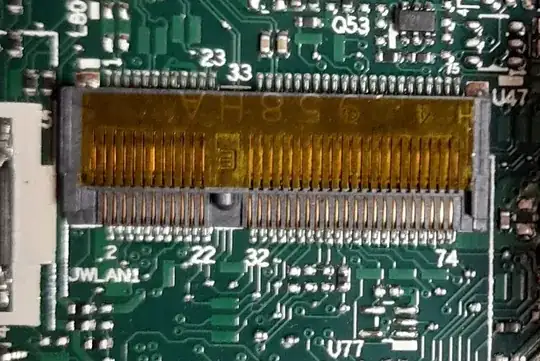

It's in Lenovo Thinkcentre M920q. I did check the manual and it seems that the optional Wi-Fi card goes here (which I do not have), but it does not say what slot this is. And I couldn't find the correct keywords to google for the answer based off the pin count.

enter image description here

Violet Giraffe
  • 1,568

1 Answers1

3

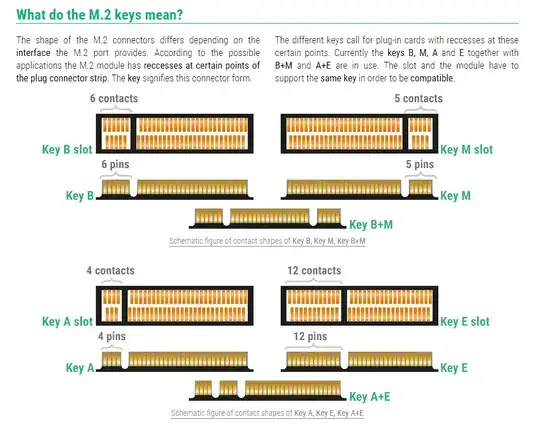

M.2 Key E. This is a more complete explanation of M.2 slots: delock.de/infothek/M.2/M.2_e.html

enter image description here

LawrenceC
  • 75,182
