I plan to purchase onboard SSD, but I am not sure whether my board supports M.2 SSD 6Gbps SATA or NVME logical intefaces. Below is the specification of my motherboard. Board Name: Gigabyte GA-A320M-S2H (rev. 1.x) Mother Board official Website: https://www.gigabyte.com/in/Motherboard/GA-A320M-S2H-rev-1x#kf

If the board supports NVME, then can I install OS on it? Also, please suggest the best 250 GB NVME SSD for the board.

gregg
  • 6,307
Abhijeet Todkari
  • 23

2 Answers2

1

First of all the onboard SSD you're describing is called M.2 which is the standard for its physical size (or its physical slot/interface). The 4-digit numbers indicate its physical size in MM, ex: 2280 means its 22mm wide & 80mm long.

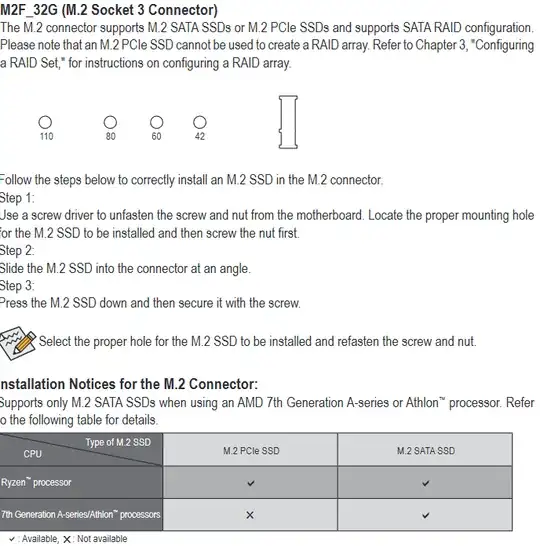

M.2 SSD's can logically use SATA, PCIe AHCI/SATA, or PCIe NVMe. pg15 of your motherboard manual (seen below) SEEMS to indicate only SATA or PCIe AHCI/SATA may be used DEPENDING ON WHICH PROCESSOR/CPU YOU USE. So I am not 100% sure if NVMe will work...

enter image description here

gregg
  • 6,307
0

Every board with NVMe from at least the past 5 years can boot from it.

Your own manual places no restriction on its use.

harrymc
  • 498,455
