Images get distorted; circles print as ovals

I have an Excel document which has several images (vector art, EMF images).

When printing, the images are distorted: circles become ovals, which looks ridiculous.

Surprisingly, it doesn't matter which printer driver I use: Adobe Acrobat DC Save to PDF, or Microsoft's built-in Save to PDF/XPS, I get exactly the same distortion.

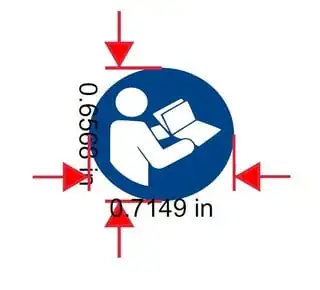

This should be a 0.7" diameter circle, as shown printed using Adobe Acrobat DC and Microsoft Excel's built-in PDF feature:

Screenshot of PDF produced using Adobe Acrobat DC PDF driver Screenshot of PDF produced using Microsoft Excel built-in PDF printer

That is not a circle!

I have tried:

  • Resize the images externally so they can be maintained at 100% scaling in the document

Is there something that I can do, short of moving to a desktop publishing app?

  • Microsoft Excel Professional Plus 2016
  • Microsoft Windows [Version 10.0.19041.928]
whiskeychief
  • 310

3 Answers3

1

Excel has a LONG, LONG standing problem with graphics in that it reduces their size, changing the aspect ratio along the way, by about 10%. Which seems to be approximately what you are experiencing.

There is no solution.

If you want things "right", you have to see what a given graphic does, then edit it to change its sizing so that after reduction it is what you desired.

Unfortunately, that only helps the printed version. Now you've adulterated it, the onscreen version will look wrong.

Jeorje
  • 26
0

There is a way you can try to export an exact output to PDF, with no distorted image. Changing font theme worked for me.

Under the PAGE LAYOUT tab, on Theme panel, select Fonts, choose Corbel font theme.

Print your document or save as PDF. There you go!

Lean Karana
  • 1
0

I wasted a lot of time sorting the same, and I finally made it fixed in my VBA code. It needs to be adjusted the height before printing to PDF, so its height is increased by 6%, then printed (at that moment it is fine), and then again decrease the image height back to the original height.

If you are interested in the VBA code I created to automate it, you can have a look to my blog:

https://j4.kopl.pro/news/printing-to-pdf-from-microsoft-excel.html

Available for anyone who needs to sort the same.

Michal Kopl
  • 11
